AnimatSim::Charting::FileChart Class Reference

File chart. More...

#include <FileChart.h>

Inheritance diagram for AnimatSim::Charting::FileChart:

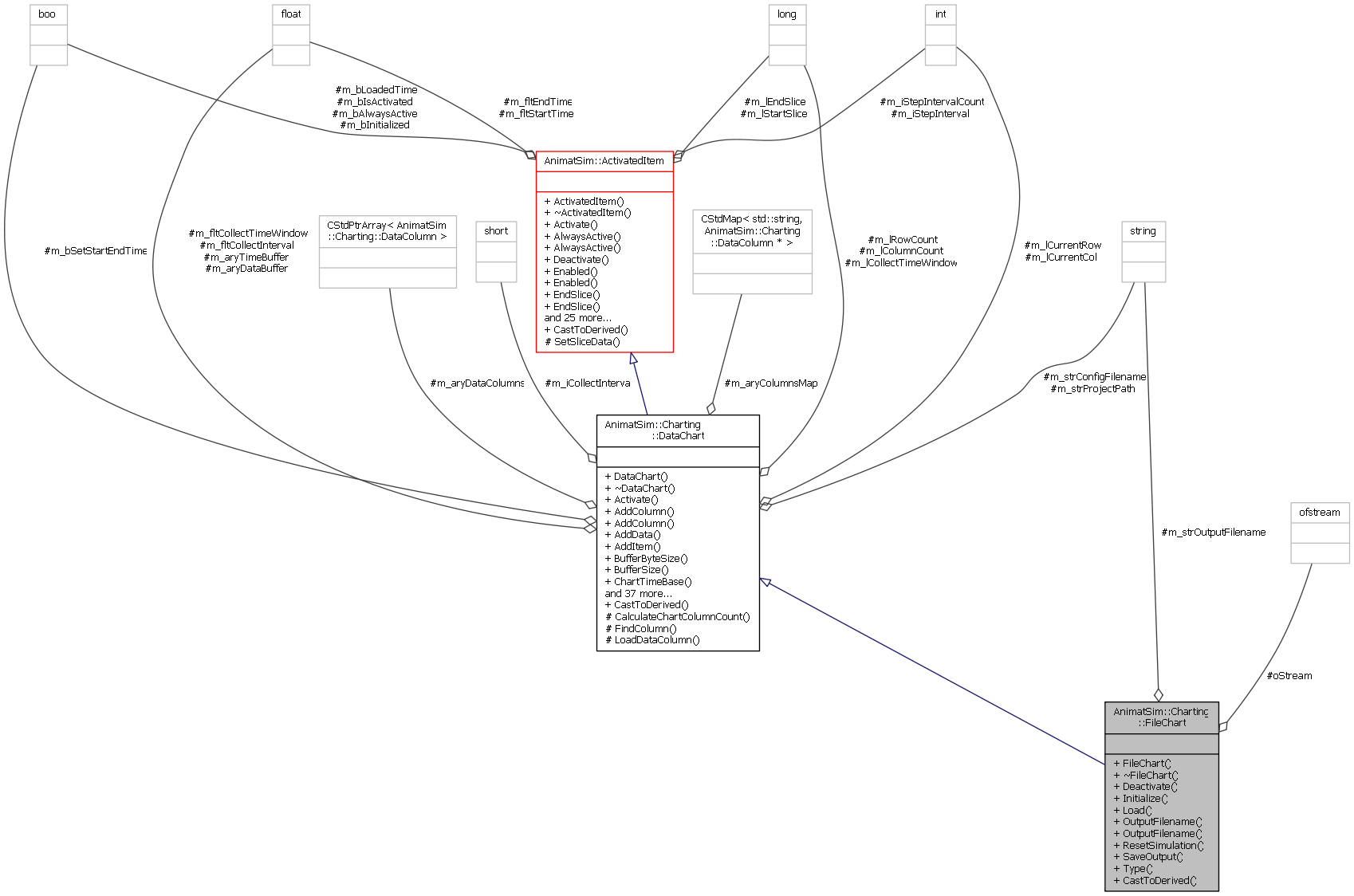

Collaboration diagram for AnimatSim::Charting::FileChart:

Public Member Functions
	FileChart ()
	Default constructor. More...
virtual	~FileChart ()
	Destructor. More...
virtual void	Deactivate ()
	Deactivates this item. More...
virtual void	Initialize ()
	Initializes this object. More...
virtual void	Load (CStdXml &oXml)
virtual std::string	OutputFilename ()
	Gets the output filename. More...
virtual void	OutputFilename (std::string strVal)
	Sets the Output filename. More...
virtual void	ResetSimulation ()
	Resets the simulation back to time 0. More...
virtual void	SaveOutput ()
	Saves the data to the specified output file in a tsv format. More...
virtual std::string	Type ()
	returns the string type name of this object. More...
Public Member Functions inherited from AnimatSim::Charting::DataChart
	DataChart ()
	Default constructor. More...
virtual	~DataChart ()
	Destructor. More...
virtual void	Activate ()
	Activates this item. More...
virtual void	AddColumn (DataColumn *lpColumn)
	Adds a column. More...
virtual void	AddColumn (std::string strXml, bool bDoNotInit)
	Creates and adds a DataColumn from XML. More...
virtual void	AddData (int iColumn, int iRow, float fltVal)
	Adds a data element to the data buffer. More...
virtual bool	AddItem (const std::string &strItemType, const std::string &strXml, bool bThrowError=true, bool bDoNotInit=false)
	Adds a new object to this parent. More...
virtual long	BufferByteSize ()
	Gets the buffer byte size. More...
virtual long	BufferSize ()
	Gets the buffer size. More...
virtual float	ChartTimeBase ()
	Gets the Time base used by this data chart. More...
virtual int	CollectInterval ()
	Gets the collect interval. More...
virtual void	CollectInterval (int iVal, bool bReInit=true)
	Sets the Collect interval using the time slice. More...
virtual void	CollectInterval (float fltVal, bool bReInit=true)
	Sets the Collect interval using the time. More...
virtual long	CollectTimeWindow ()
	Gets the collect time window time slices. More...
virtual void	CollectTimeWindow (long lVal, bool bReInit=true)
	Sets the Collect time window using time slices. More...
virtual void	CollectTimeWindow (float fltVal, bool bReInit=true)
	Sets the collect time window in time value. More...
virtual long	ColumnCount ()
	Gets the column count. More...
virtual long	CurrentRow ()
	Gets the current row. More...
virtual void	CurrentRow (long iVal)
	Sets the Current row. More...
virtual float *	DataBuffer ()
	Gets the data buffer. More...
virtual void	EndTime (float fltVal, bool bReInit=true)
virtual DataColumn *	FindColumn (std::string strID, bool bThrowError=true)
	Searches for a column that matches the specified ID. More...
virtual void	Load (std::string strProjectPath, std::string strConfigFile)
	Loads a data chart from a file. More...
virtual bool	Lock ()
	Locks this data chart buffer from being written by any other process. More...
virtual bool	operator< (ActivatedItem *lpItem)
	Compares the Start slice time of two data charts to tell if one is less than the other. More...
virtual std::string	ProjectPath ()
	Gets the project path. More...
virtual void	ProjectPath (std::string strVal)
	Sets the Project path. More...
virtual void	QueryProperties (CStdPtrArray< TypeProperty > &aryProperties)
	Queries this object for a list of properties that can be changed using SetData. More...
virtual void	ReInitialize ()
	Re-initialize this object. More...
virtual void	RemoveColumn (std::string strID, bool bThrowError=true)
	Removes the column with the specified ID. More...
virtual bool	RemoveItem (const std::string &strItemType, const std::string &strID, bool bThrowError=true)
	Removes a child item from this parent. More...
virtual long	RowCount ()
	Gets the row count. More...
virtual void	SetData (int iColumn, int iRow, float fltVal)
	Sets a data element to the data buffer. More...
virtual bool	SetData (const std::string &strDataType, const std::string &strValue, bool bThrowError=true)
	Set a variable based on a string data type name. More...
virtual bool	SetStartEndTime ()
	Gets whether a start/end time is set for this chart. More...
virtual void	SetStartEndTime (bool bVal)
	Sets whether a start/end time is specified for this chart. More...
virtual void	StartTime (float fltVal, bool bReInit=true)
virtual void	StepSimulation ()
	Step the simulation for this object. More...
virtual float *	TimeBuffer ()
	Gets the time buffer. More...
virtual void	Unlock ()
	Unlocks this data chart buffer from being written by any other process. More...
virtual long	UsedBufferByteSize ()
	Gets the used buffer byte size. More...
virtual long	UsedBufferSize ()
	Gets the size of buffer that is currently used. More...
Public Member Functions inherited from AnimatSim::ActivatedItem
	ActivatedItem ()
	Default constructor. More...
virtual	~ActivatedItem ()
	Destructor. More...
virtual bool	AlwaysActive ()
	Gets whether this item is always active. More...
virtual void	AlwaysActive (bool bVal)
	Sets whether this item is always active. More...
virtual bool	Enabled ()
	Gets whether the item is enabled or not. More...
virtual void	Enabled (bool bVal)
	Enables the item. More...
virtual long	EndSlice ()
	Gets the end time slice for deactivation. More...
virtual void	EndSlice (long lVal, bool bReInit=true)
virtual float	EndTime ()
	Gets the end simulation time for deactivation. More...
bool	IsActivated ()
	Query if this object is activated. More...
bool	IsInitialized ()
	Query if this object is initialized. More...
virtual bool	LoadedTime ()
	Gets whether time was loaded or time slices. More...
virtual void	LoadedTime (bool bVal)
	Sets whether time was loaded. More...
bool	NeedToActivate ()
	Determines if this item needs to be activated. More...
bool	NeedToDeactivate ()
	Determines if this item needs to be deactivated. More...
virtual bool	NeedToStep ()
	Tells if this item needs to call StepSimulation or not. More...
virtual bool	Overlaps (ActivatedItem *lpItem)
	Query if this object overlaps the time period for another ActivatedItem. More...
virtual long	StartSlice ()
	Returns the starts slice for activation. More...
virtual void	StartSlice (long lVal, bool bReInit=true)
virtual float	StartTime ()
	Gets the simulation start time for activation. More...
virtual int	StepInterval ()
	Gets the step interval. More...
virtual void	StepInterval (int iVal)
	Sets the step interval. More...
virtual int	StepIntervalCount ()
	Gets the step interval count. More...
virtual void	StepIntervalCount (int iVal)
	Step interval count. More...
virtual void	TimeStepModified ()
	Notification method that the time step modified has been modified. Objects should recalculate any slice times as needed. More...
Public Member Functions inherited from AnimatSim::AnimatBase
	AnimatBase ()
	Constructs an AnimatBase object. More...
virtual	~AnimatBase ()
	Destroys the AnimatBase object.. More...
virtual void	AfterResetSimulation ()
	Called after a simulation reset for some objects. More...
virtual long	CalculateSnapshotByteSize ()
	Calculates the snapshot byte size. More...
virtual void	Copy (CStdSerialize *lpSource)
virtual float *	GetDataPointer (const std::string &strDataType)
	Returns a float pointer to a data item of interest in this object. More...
virtual NeuralModule *	GetNeuralModule ()
	Gets the neural module. More...
virtual Node *	GetNode ()
	Gets the node. More...
virtual Simulator *	GetSimulator ()
	Gets the simulator pointer. More...
virtual Structure *	GetStructure ()
	Gets the structure for this node. More...
virtual bool	HasProperty (const std::string &strName)
	Queries this object if it has a property with the given name. More...
virtual std::string	ID ()
	Gets the unique GUID ID of this object. More...
virtual void	ID (std::string strValue)
	Sets the unique GUID ID of the object. More...
virtual void	Kill (bool bState=true)
	Kills. More...
virtual void	Load (StdUtils::CStdXml &oXml)
	Loads the item using an XML data packet. More...
virtual void	LoadKeyFrameSnapshot (byte *aryBytes, long &lIndex)
	Loads a key frame snapshot. More...
virtual std::string	Name ()
	Gets the name of this object. More...
virtual void	Name (std::string strValue)
	Sets the name of the object. Blank is acceptable. More...
virtual AnimatPropertyType	PropertyType (const std::string &strName)
virtual void	Reset ()
	Resets this object. More...
virtual void	RigidBodyAdded (std::string strID)
virtual void	RigidBodyRemoved (std::string strID)
virtual void	SaveKeyFrameSnapshot (byte *aryBytes, long &lIndex)
	Saves a key frame snapshot. More...
virtual bool	Selected ()
	Tells if this items is selected or not. More...
virtual void	Selected (bool bValue, bool bSelectMultiple)
	Selects this object. More...
virtual bool	SetData (const std::string &strDataType, const float fltValue, bool bThrowError=true)
	Set a variable based on a string data type name. More...
virtual bool	SetData (const std::string &strDataType, const long lValue, bool bThrowError=true)
	Set a variable based on a string data type name. More...
virtual void	SetSystemPointers (Simulator *lpSim, Structure *lpStructure, NeuralModule *lpModule, Node *lpNode, bool bVerify)
	Sets the system pointers. More...
virtual void	SimPausing ()
	Called just before the simulation pauses. More...
virtual void	SimStarting ()
	Called just before the simulation starts. More...
virtual void	SimStopping ()
	Called just before the simulation stops. More...
virtual void	Type (std::string strValue)
	Sets the class type for this object. More...
virtual void	VerifySystemPointers ()
	Verify that system pointers have been set correctly. More...
virtual void	VisualSelectionModeChanged (int iNewMode)
	Visual selection mode changed. More...

Static Public Member Functions
static FileChart *	CastToDerived (AnimatBase *lpBase)
Static Public Member Functions inherited from AnimatSim::Charting::DataChart
static DataChart *	CastToDerived (AnimatBase *lpBase)
Static Public Member Functions inherited from AnimatSim::ActivatedItem
static ActivatedItem *	CastToDerived (AnimatBase *lpBase)

Protected Attributes
std::string	m_strOutputFilename
	Filename of the output file.
std::ofstream	oStream
	The file stream.
Protected Attributes inherited from AnimatSim::Charting::DataChart
CStdMap< std::string, DataColumn * >	m_aryColumnsMap
	The array of datacolumns columns. This is a sorted map that is used to get columns based on their ID.
float *	m_aryDataBuffer
	Buffer for data variable points.
CStdPtrArray< DataColumn >	m_aryDataColumns
	The primary array of data columns. This array deletes the columns when destructed.
float *	m_aryTimeBuffer
	Buffer for time data points.
bool	m_bSetStartEndTime
	true to set the start and end time. If false then the chart collects continuously.
float	m_fltCollectInterval
	Tells what the time slice step interval to use when collecting data. This is.
float	m_fltCollectTimeWindow
	The time duration where we will collect data.
short	m_iCollectInterval
	Tells what the time slice step interval to use when collecting data. This is.
long	m_lCollectTimeWindow
	The number of time slices where we will collect data.
long	m_lColumnCount
	Number of data columns.
int	m_lCurrentCol
	The currently selected column.
int	m_lCurrentRow
	The currently selected row.
long	m_lRowCount
	Number of rows in the buffer.
std::string	m_strConfigFilename
	Filename of the configuration file.
std::string	m_strProjectPath
	Full pathname of the project file.
Protected Attributes inherited from AnimatSim::ActivatedItem
bool	m_bAlwaysActive
	Determines whether this item is always active during simulation.
bool	m_bInitialized
	true if item has been initialized
bool	m_bIsActivated
	true if item has been activated
bool	m_bLoadedTime
float	m_fltEndTime
float	m_fltStartTime
int	m_iStepInterval
int	m_iStepIntervalCount
	Keeps track of how many time steps have occured since it was zeroed again.
long	m_lEndSlice
	The time slice where this item is deactived.
long	m_lStartSlice
	The time slice where this item becomes active.
Protected Attributes inherited from AnimatSim::AnimatBase
bool	m_bEnabled
	Tells if this item is enabled or not. If it is not enabled then it is not run.
bool	m_bSelected
	Tells whether the object is selected or not.
AnimatSim::Behavior::NeuralModule *	m_lpModule
	The pointer to this items parentNeuralModule. If this is not relevant for this object then this is NULL.
Node *	m_lpNode
	The pointer to this items parent Node. If this is not relevant for this object then this is NULL.
Simulator *	m_lpSim
	The pointer to a Simulation.
AnimatSim::Environment::Structure *	m_lpStructure
	The pointer to this items parent Structure. If this is not relevant for this object then this is NULL.
std::string	m_strID
	The unique Id for this object.
std::string	m_strName
	The name for this object.
std::string	m_strType
	The type for this object. Examples are Box, Plane, Neuron, etc..

Additional Inherited Members
Protected Member Functions inherited from AnimatSim::Charting::DataChart
virtual long	CalculateChartColumnCount ()
	Calculates the chart column count. More...
virtual DataColumn *	FindColumn (std::string strID, int &iIndex, bool bThrowError)
	Searches for a column that matches the specified ID. More...
DataColumn *	LoadDataColumn (CStdXml &oXml)
	Loads a data column. More...
Protected Member Functions inherited from AnimatSim::ActivatedItem
virtual void	SetSliceData ()

Detailed Description

File chart.

This class is derived from DataChart, and its purpose is to save out the data into a tab seperated value (tsv) file when the chart reaches its end time and is deactivated. It rights the data columns out using the uer specified Index for each column. This class is primarily used when running the simulation in stand-alone mode without any GUI. The GUI uses the MemoryChart instead.

Author

dcofer

Date

3/18/2011

Definition at line 24 of file FileChart.h.

Constructor & Destructor Documentation

AnimatSim::Charting::FileChart::FileChart

(

)

Default constructor.

Author

dcofer

Date

3/18/2011

Definition at line 54 of file FileChart.cpp.

AnimatSim::Charting::FileChart::~FileChart ( )

virtual

Destructor.

Author

dcofer

Date

3/18/2011

Definition at line 64 of file FileChart.cpp.

References StdUtils::Std_TraceMsg().

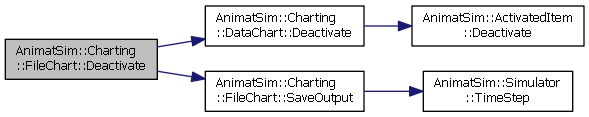

Here is the call graph for this function:

Member Function Documentation

void AnimatSim::Charting::FileChart::Deactivate ( )

virtual

Deactivates this item.

Author

dcofer

Date

3/1/2011

Reimplemented from AnimatSim::Charting::DataChart.

Definition at line 111 of file FileChart.cpp.

References AnimatSim::Charting::DataChart::Deactivate(), and SaveOutput().

Here is the call graph for this function:

void AnimatSim::Charting::FileChart::Initialize ( )

virtual

Initializes this object.

After an object is loaded in it must be initialized before it can be used. This allows the object to retrieve any pointers or setup memory that it will need during execution. Each object is responsible for initializing any of its child objects, so you simply need to call this method on the containing class to init all child objects. It also calls VerifySystemPointers to make sure that the system pointers have been setup correctly.

Author

dcofer

Date

3/1/2011

Reimplemented from AnimatSim::Charting::DataChart.

Definition at line 102 of file FileChart.cpp.

References AnimatSim::Charting::DataChart::Initialize(), m_strOutputFilename, AnimatSim::Charting::DataChart::m_strProjectPath, and oStream.

Here is the call graph for this function:

std::string AnimatSim::Charting::FileChart::OutputFilename ( )

virtual

Gets the output filename.

Author

dcofer

Date

3/18/2011

Returns

Output file name.

Definition at line 84 of file FileChart.cpp.

References m_strOutputFilename.

void AnimatSim::Charting::FileChart::OutputFilename ( std::string  strVal )

virtual

Sets the Output filename.

Author

dcofer

Date

3/18/2011

Parameters

strVal

The new name.

Definition at line 94 of file FileChart.cpp.

References m_strOutputFilename, and StdUtils::Std_IsBlank().

Here is the call graph for this function:

void AnimatSim::Charting::FileChart::ResetSimulation ( )

virtual

Resets the simulation back to time 0.

This method calls the ResetSimulation method on all subitems in order to reset the simulation back to the beginning.

Author

dcofer

Date

3/1/2011

Reimplemented from AnimatSim::Charting::DataChart.

Definition at line 121 of file FileChart.cpp.

References m_strOutputFilename, AnimatSim::Charting::DataChart::m_strProjectPath, oStream, and AnimatSim::Charting::DataChart::ResetSimulation().

Here is the call graph for this function:

void AnimatSim::Charting::FileChart::SaveOutput ( )

virtual

Saves the data to the specified output file in a tsv format.

Author

dcofer

Date

3/18/2011

Definition at line 146 of file FileChart.cpp.

References AnimatSim::Charting::DataChart::m_aryDataBuffer, AnimatSim::Charting::DataChart::m_aryDataColumns, AnimatSim::Charting::DataChart::m_iCollectInterval, AnimatSim::Charting::DataChart::m_lColumnCount, AnimatSim::AnimatBase::m_lpSim, AnimatSim::Charting::DataChart::m_lRowCount, AnimatSim::ActivatedItem::m_lStartSlice, oStream, and AnimatSim::Simulator::TimeStep().

Referenced by Deactivate().

Here is the call graph for this function:

Here is the caller graph for this function:

std::string AnimatSim::Charting::FileChart::Type ( )

virtual

returns the string type name of this object.

Gets the string type description of this object. This is basically just another type of tag that can be applied by the developer of a class to differentiate it. An example of where this is used is in the synaptic types class. I use it to specify the synapse type as gated, modulatory, etc.. They still have different classes, but this gives a string description of that type. It is not mandatory and can be used how the class developer requires.

Author

dcofer

Date

2/22/2011

Returns

string of assigned class type.

Reimplemented from AnimatSim::Charting::DataChart.

Definition at line 74 of file FileChart.cpp.

---

The documentation for this class was generated from the following files:

• FileChart.h
• FileChart.cpp
