Data column class. More...

#include <DataColumn.h>

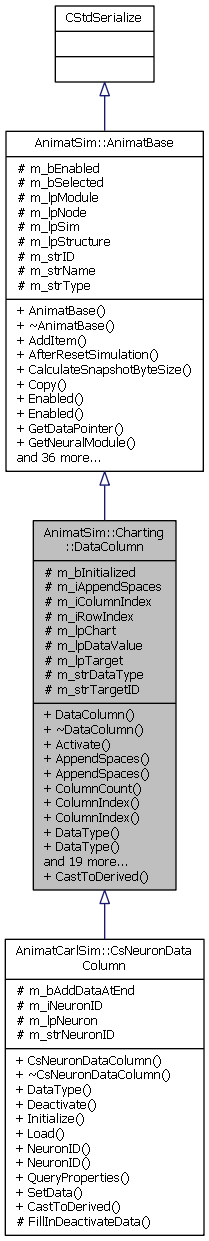

Inheritance diagram for AnimatSim::Charting::DataColumn:

Collaboration diagram for AnimatSim::Charting::DataColumn:

Public Member Functions
	DataColumn ()
	Default constructor. More...

virtual	~DataColumn ()
	Destructor. More...

virtual void	Activate ()

virtual int	AppendSpaces ()
	Gets how many spaces to append. More...

virtual void	AppendSpaces (int iSpaces)
	Sets whether to append spaces. More...

virtual int	ColumnCount ()
	Gets the number of columns for this DataColumn. More...

virtual int	ColumnIndex ()
	Gets the column index. More...

virtual void	ColumnIndex (int iIndex)
	Sets the Column index. More...

virtual std::string	DataType ()
	Gets the data type of the variable we are collecting. This is the value passed into GetDataPointer. More...

virtual void	DataType (std::string strType)
	Sets the Data type of the variable we are collecting. This is the value passed into GetDataPointer. More...

virtual float *	DataValue ()
	Gets the pointer to the data value we are collecting. More...

virtual void	Deactivate ()

virtual void	Initialize ()
	Initializes this object. More...

virtual bool	IsInitialized ()
	Query if this object is initialized. More...

virtual void	IsInitialized (bool bVal)
	Sets whether this column is initialized. More...

virtual void	Load (CStdXml &oXml)

virtual void	Name (std::string strValue)
	Sets the name of the object. Blank is acceptable. More...

virtual bool	operator< (DataColumn *lpColumn)
	Determines if this column has an index value less than the index value of the column being passed in. More...

virtual void	QueryProperties (CStdPtrArray< TypeProperty > &aryProperties)
	Queries this object for a list of properties that can be changed using SetData. More...

virtual void	ReInitialize ()
	Re-initialize this object. More...

virtual int	RowIndex ()
	Gets the row index. More...

virtual void	RowIndex (int iIndex)
	Sets the Row index. More...

virtual void	SaveColumnNames (std::ofstream &oStream)
	Saves this DataColumn name to the out stream for the file. More...

virtual bool	SetData (const std::string &strDataType, const std::string &strValue, bool bThrowError=true)
	Set a variable based on a string data type name. More...

virtual void	SetSystemPointers (Simulator lpSim, Structure lpStructure, NeuralModule lpModule, Node lpNode, DataChart *lpChart, bool bVerify)
	Sets the system pointers. More...

virtual void	StepSimulation ()
	Step the simulation for this object. More...

virtual std::string	TargetID ()
	Gets the GUID ID of the item to chart. More...

virtual void	TargetID (std::string strID)
	Sets the GUID ID of teh item to chart. More...

virtual void	VerifySystemPointers ()
	Verify that system pointers have been set correctly. More...

Public Member Functions inherited from AnimatSim::AnimatBase
	AnimatBase ()
	Constructs an AnimatBase object. More...

virtual	~AnimatBase ()
	Destroys the AnimatBase object.. More...

virtual bool	AddItem (const std::string &strItemType, const std::string &strXml, bool bThrowError=true, bool bDoNotInit=false)
	Adds a new object to this parent. More...

virtual void	AfterResetSimulation ()
	Called after a simulation reset for some objects. More...

virtual long	CalculateSnapshotByteSize ()
	Calculates the snapshot byte size. More...

virtual void	Copy (CStdSerialize *lpSource)

virtual void	Enabled (bool bVal)
	Tells whether this item is enabled or not. This is not actually used for all objects, only specific ones. I am putting it in the base class though to prevent numerous duplications. More...

virtual bool	Enabled ()
	Tells whether this item is enabled or not. This is not actually used for all objects, only specific ones. I am putting it in the base class though to prevent numerous duplications. More...

virtual float *	GetDataPointer (const std::string &strDataType)
	Returns a float pointer to a data item of interest in this object. More...

virtual NeuralModule *	GetNeuralModule ()
	Gets the neural module. More...

virtual Node *	GetNode ()
	Gets the node. More...

virtual Simulator *	GetSimulator ()
	Gets the simulator pointer. More...

virtual Structure *	GetStructure ()
	Gets the structure for this node. More...

virtual bool	HasProperty (const std::string &strName)
	Queries this object if it has a property with the given name. More...

virtual std::string	ID ()
	Gets the unique GUID ID of this object. More...

virtual void	ID (std::string strValue)
	Sets the unique GUID ID of the object. More...

virtual void	Kill (bool bState=true)
	Kills. More...

virtual void	Load (StdUtils::CStdXml &oXml)
	Loads the item using an XML data packet. More...

virtual void	LoadKeyFrameSnapshot (byte *aryBytes, long &lIndex)
	Loads a key frame snapshot. More...

virtual std::string	Name ()
	Gets the name of this object. More...

virtual AnimatPropertyType	PropertyType (const std::string &strName)

virtual bool	RemoveItem (const std::string &strItemType, const std::string &strID, bool bThrowError=true)
	Removes a child item from this parent. More...

virtual void	Reset ()
	Resets this object. More...

virtual void	ResetSimulation ()
	Resets the simulation back to time 0. More...

virtual void	RigidBodyAdded (std::string strID)

virtual void	RigidBodyRemoved (std::string strID)

virtual void	SaveKeyFrameSnapshot (byte *aryBytes, long &lIndex)
	Saves a key frame snapshot. More...

virtual bool	Selected ()
	Tells if this items is selected or not. More...

virtual void	Selected (bool bValue, bool bSelectMultiple)
	Selects this object. More...

virtual bool	SetData (const std::string &strDataType, const float fltValue, bool bThrowError=true)
	Set a variable based on a string data type name. More...

virtual bool	SetData (const std::string &strDataType, const long lValue, bool bThrowError=true)
	Set a variable based on a string data type name. More...

virtual void	SetSystemPointers (Simulator lpSim, Structure lpStructure, NeuralModule lpModule, Node lpNode, bool bVerify)
	Sets the system pointers. More...

virtual void	SimPausing ()
	Called just before the simulation pauses. More...

virtual void	SimStarting ()
	Called just before the simulation starts. More...

virtual void	SimStopping ()
	Called just before the simulation stops. More...

virtual void	TimeStepModified ()
	Notification method that the time step modified has been modified. Objects should recalculate any slice times as needed. More...

virtual std::string	Type ()
	returns the string type name of this object. More...

virtual void	Type (std::string strValue)
	Sets the class type for this object. More...

virtual void	VisualSelectionModeChanged (int iNewMode)
	Visual selection mode changed. More...

Static Public Member Functions
static DataColumn *	CastToDerived (AnimatBase *lpBase)

Protected Attributes
bool	m_bInitialized
	true it this chart has been initialized

int	m_iAppendSpaces
	Determines whether how many other tabs are added after this data is written to the file.

int	m_iColumnIndex

int	m_iRowIndex

DataChart *	m_lpChart
	Pointer to the parent DataChart.

float *	m_lpDataValue
	Pointer to the data variable we are collecting.

AnimatBase *	m_lpTarget
	Pointer to the target object that contains the data variable we will be collecting.

std::string	m_strDataType
	The Data type of the variable we will be collecting. This is passed into the GetDataPointer method of the object.

std::string	m_strTargetID
	GUID ID of the target object that contains the variable we will be collecting.

Protected Attributes inherited from AnimatSim::AnimatBase
bool	m_bEnabled
	Tells if this item is enabled or not. If it is not enabled then it is not run.

bool	m_bSelected
	Tells whether the object is selected or not.

AnimatSim::Behavior::NeuralModule *	m_lpModule
	The pointer to this items parentNeuralModule. If this is not relevant for this object then this is NULL.

Node *	m_lpNode
	The pointer to this items parent Node. If this is not relevant for this object then this is NULL.

Simulator *	m_lpSim
	The pointer to a Simulation.

AnimatSim::Environment::Structure *	m_lpStructure
	The pointer to this items parent Structure. If this is not relevant for this object then this is NULL.

std::string	m_strID
	The unique Id for this object.

std::string	m_strName
	The name for this object.

std::string	m_strType
	The type for this object. Examples are Box, Plane, Neuron, etc..

Detailed Description

Data column class.

The data column class is responsible for collecting data from an object within the simulation and then adding that to the data chart. You typically will not need to derive a new class from this to specialize the data columnn. It is capable of getting any object in the system using its ID, and then you can specify the DataType in a call to GetDataPointer for that object to get a pointer to variable you need to chart.

Author: dcofer

Date: 3/18/2011

Definition at line 24 of file DataColumn.h.

Constructor & Destructor Documentation

AnimatSim::Charting::DataColumn::DataColumn ( )

Default constructor.

Author: dcofer

Date: 3/18/2011

Definition at line 49 of file DataColumn.cpp.

References m_bInitialized, m_iAppendSpaces, m_iColumnIndex, m_iRowIndex, and m_lpDataValue.

AnimatSim::Charting::DataColumn::~DataColumn ( )

virtual

Destructor.

Author: dcofer

Date: 3/18/2011

Definition at line 64 of file DataColumn.cpp.

References m_lpDataValue.

Member Function Documentation

int AnimatSim::Charting::DataColumn::AppendSpaces ( )

virtual

Gets how many spaces to append.

Author: dcofer

Date: 3/26/2011

Returns: Number of appends spaces.

Definition at line 147 of file DataColumn.cpp.

References m_iAppendSpaces.

void AnimatSim::Charting::DataColumn::AppendSpaces ( int iSpaces )

virtual

Sets whether to append spaces.

Author: dcofer

Date: 3/26/2011

Parameters

iSpaces The spaces to append.

Definition at line 157 of file DataColumn.cpp.

References m_iAppendSpaces, and StdUtils::Std_InValidRange().

Here is the call graph for this function:

int AnimatSim::Charting::DataColumn::ColumnCount ( )

virtual

Gets the number of columns for this DataColumn.

Author: dcofer

Date: 3/18/2011

Returns: Number of columns in the data buffer.

Definition at line 78 of file DataColumn.cpp.

int AnimatSim::Charting::DataColumn::ColumnIndex ( )

virtual

Gets the column index.

Author: dcofer

Date: 3/26/2011

Returns: Column index.

Definition at line 171 of file DataColumn.cpp.

References m_iColumnIndex.

Referenced by SetData().

Here is the caller graph for this function:

void AnimatSim::Charting::DataColumn::ColumnIndex ( int iIndex )

virtual

Sets the Column index.

Author: dcofer

Date: 3/26/2011

Parameters

iIndex Zero-based index of the column.

Definition at line 181 of file DataColumn.cpp.

References m_iColumnIndex, and StdUtils::Std_IsAboveMin().

Here is the call graph for this function:

std::string AnimatSim::Charting::DataColumn::DataType ( )

virtual

Gets the data type of the variable we are collecting. This is the value passed into GetDataPointer.

Author: dcofer

Date: 3/18/2011

Returns: name of the data type to collect.

Definition at line 96 of file DataColumn.cpp.

References m_strDataType.

Referenced by SetData().

Here is the caller graph for this function:

void AnimatSim::Charting::DataColumn::DataType ( std::string strType )

virtual

Sets the Data type of the variable we are collecting. This is the value passed into GetDataPointer.

Author: dcofer

Date: 3/18/2011

Parameters

strType Data Type of the data to collect.

Reimplemented in AnimatCarlSim::CsNeuronDataColumn.

Definition at line 106 of file DataColumn.cpp.

References m_strDataType, and StdUtils::Std_IsBlank().

Here is the call graph for this function:

float * AnimatSim::Charting::DataColumn::DataValue ( )

virtual

Gets the pointer to the data value we are collecting.

Author: dcofer

Date: 3/18/2011

Returns: Pointer.

Definition at line 239 of file DataColumn.cpp.

References m_lpDataValue.

void AnimatSim::Charting::DataColumn::Initialize ( )

virtual

Initializes this object.

After an object is loaded in it must be initialized before it can be used. This allows the object to retrieve any pointers or setup memory that it will need during execution. Each object is responsible for initializing any of its child objects, so you simply need to call this method on the containing class to init all child objects. It also calls VerifySystemPointers to make sure that the system pointers have been setup correctly.

Author: dcofer

Date: 3/1/2011

Reimplemented from AnimatSim::AnimatBase.

Reimplemented in AnimatCarlSim::CsNeuronDataColumn.

Definition at line 241 of file DataColumn.cpp.

References AnimatSim::Simulator::FindByID(), AnimatSim::AnimatBase::GetDataPointer(), AnimatSim::AnimatBase::Initialize(), m_bInitialized, m_lpDataValue, AnimatSim::AnimatBase::m_lpSim, m_lpTarget, m_strDataType, AnimatSim::AnimatBase::m_strID, and m_strTargetID.

Referenced by ReInitialize(), and SetData().

Here is the call graph for this function:

Here is the caller graph for this function:

bool AnimatSim::Charting::DataColumn::IsInitialized ( )

virtual

Query if this object is initialized.

Author: dcofer

Date: 3/18/2011

Returns: true if initialized, false if not.

Definition at line 219 of file DataColumn.cpp.

References m_bInitialized.

void AnimatSim::Charting::DataColumn::IsInitialized ( bool bVal )

virtual

Sets whether this column is initialized.

Author: dcofer

Date: 3/18/2011

Parameters

bVal	true to set that it is initialized.

Definition at line 229 of file DataColumn.cpp.

References m_bInitialized.

void AnimatSim::Charting::DataColumn::Name ( std::string strValue )

virtual

Sets the name of the object. Blank is acceptable.

Author: dcofer

Date: 2/22/2011

Parameters

strValue The name value.

Reimplemented from AnimatSim::AnimatBase.

Definition at line 81 of file DataColumn.cpp.

References AnimatSim::AnimatBase::m_strName, and StdUtils::Std_IsBlank().

Here is the call graph for this function:

bool AnimatSim::Charting::DataColumn::operator< ( DataColumn * lpColumn )

virtual

Determines if this column has an index value less than the index value of the column being passed in.

This is used to sort the columns based on the index value.

Returns: true if this objects index value is less than the object passed in, false otherwise.

Definition at line 352 of file DataColumn.cpp.

References m_iColumnIndex.

void AnimatSim::Charting::DataColumn::QueryProperties ( CStdPtrArray< TypeProperty > & aryProperties )

virtual

Queries this object for a list of properties that can be changed using SetData.

The method provides a list of the properties that can be set using the SetData method. It gives the property name and the type of data that should be passed to it. Valid date types are Boolean, Float, Integer, and Xml.

Author: dcofer

Date: 2/22/2011

Parameters

aryNames	Array list of the property names.
strTypes	Array list of the type that is associated with the cooresponding name in the list.

Returns: Nothing.

Reimplemented from AnimatSim::AnimatBase.

Definition at line 296 of file DataColumn.cpp.

References AnimatSim::AnimatBase::QueryProperties().

Here is the call graph for this function:

void AnimatSim::Charting::DataColumn::ReInitialize ( )

virtual

Re-initialize this object.

Some objects like data charts need to be re-initialized some times. An example of when that would be needed is when the simulation is re-started.

Author: dcofer

Date: 3/1/2011

Reimplemented from AnimatSim::AnimatBase.

Definition at line 255 of file DataColumn.cpp.

References Initialize(), and m_bInitialized.

Here is the call graph for this function:

int AnimatSim::Charting::DataColumn::RowIndex ( )

virtual

Gets the row index.

Author: dcofer

Date: 3/26/2011

Returns: row index.

Definition at line 195 of file DataColumn.cpp.

References m_iRowIndex.

void AnimatSim::Charting::DataColumn::RowIndex ( int iIndex )

virtual

Sets the Row index.

Author: dcofer

Date: 3/26/2011

Parameters

iIndex Zero-based index of the row.

Definition at line 205 of file DataColumn.cpp.

References m_iRowIndex, and StdUtils::Std_IsAboveMin().

Here is the call graph for this function:

void AnimatSim::Charting::DataColumn::SaveColumnNames ( std::ofstream & oStream )

virtual

Saves this DataColumn name to the out stream for the file.

Author: dcofer

Date: 3/18/2011

Parameters

[in,out] oStream The file stream.

Definition at line 312 of file DataColumn.cpp.

References m_iAppendSpaces, and AnimatSim::AnimatBase::m_strName.

bool AnimatSim::Charting::DataColumn::SetData	(	const std::string &	strDataType,
		const std::string &	strValue,
		bool	bThrowError = `true`
	)

virtual

Set a variable based on a string data type name.

This is a generic method that can be used to set any variable in an AnimatBase object by specifying the name of the variable and a string representation of that data. The GUI uses this method to set data into variables in the simulation when the user changes them in the UI. The value string can be as simple as a float or int, or as complex as an xml packet. It is the developers responsibilty to know what type of data is needed and to process it accordingly.

Author: dcofer

Date: 2/22/2011

Parameters

strDataType	string name of the data type to set.
strValue	The string value of the data. It is up to the developer to determine what this should be. For example, in most cases it is simply a float and you just have to convert it to a float and make the appropriate mutator method call. However, it can be any type of string, including an entire xml packet. It is the developers responsibility to know how to set and process the data as required.
bThrowError	true to throw error if there is a problem. If false then it will not return an error, just return false.

Returns: true if it succeeds, false if it fails.

Reimplemented from AnimatSim::AnimatBase.

Reimplemented in AnimatCarlSim::CsNeuronDataColumn.

Definition at line 269 of file DataColumn.cpp.

References ColumnIndex(), DataType(), Initialize(), AnimatSim::AnimatBase::SetData(), and StdUtils::Std_CheckString().

Here is the call graph for this function:

virtual void AnimatSim::Charting::DataColumn::SetSystemPointers	(	Simulator *	lpSim,
		Structure *	lpStructure,
		NeuralModule *	lpModule,
		Node *	lpNode,
		DataChart *	lpChart,
		bool	bVerify
	)

virtual

Sets the system pointers.

Author: dcofer

Date: 3/18/2011

Parameters

[in,out]	lpSim	The pointer to a simulation.
[in,out]	lpStructure	The pointer to a structure.
[in,out]	lpModule	The pointer to a NeuralModule.
[in,out]	lpNode	The pointer to a node.
[in,out]	lpChart	The pointer to the parent chart.
	bVerify	true to verify.

Referenced by AnimatSim::Charting::DataChart::LoadDataColumn().

Here is the caller graph for this function:

void AnimatSim::Charting::DataColumn::StepSimulation ( )

virtual

Step the simulation for this object.

This is called on an object each time it is stepped in the simulation. this is where its simulation code is processed. However, StepSimulation is not necessarily called every single time that the simulation as a whole is stepped. A good example of this is that neural modules can have different integration time steps. So a firing rate module may have a DT of 0.5 ms, while an integrate and fire model may have one of 0.1 ms. So the firing rate module would only get its StepSimulation method called every 5th time that the other module was called. This is all handed in the StepSimulation method of the Simulator and NervousSystem.

Author: dcofer

Date: 3/1/2011

Reimplemented from AnimatSim::AnimatBase.

Definition at line 340 of file DataColumn.cpp.

References AnimatSim::Charting::DataChart::AddData(), m_iColumnIndex, m_iRowIndex, m_lpChart, and m_lpDataValue.

Here is the call graph for this function:

std::string AnimatSim::Charting::DataColumn::TargetID ( )

virtual

Gets the GUID ID of the item to chart.

Author: dcofer

Date: 3/26/2011

Returns: ID of item to chart.

Definition at line 122 of file DataColumn.cpp.

References m_strTargetID.

void AnimatSim::Charting::DataColumn::TargetID ( std::string strID )

virtual

Sets the GUID ID of teh item to chart.

Author: dcofer

Date: 3/26/2011

Parameters

strID ID of the item to chart.

Definition at line 132 of file DataColumn.cpp.

References m_strTargetID, and StdUtils::Std_IsBlank().

Here is the call graph for this function:

void AnimatSim::Charting::DataColumn::VerifySystemPointers ( )

virtual

Verify that system pointers have been set correctly.

The system pointers should be set just after an object is created. However, if for some reason it was not then this could cause read/write memory access errors later on because we would be using NULL pointers. This method is called during SetSystemPointers, Load, and Initialize to verify that the pointers for that type of object have been set correctly. We are calling three different places to ensure that it is checked before use. For example, if you are doing a Load call then you want to check it before attempting the load, but there may be an object that does not Load, but only does Initialize. So we need to check it there as well.

Author: dcofer

Date: 3/4/2011

Reimplemented from AnimatSim::AnimatBase.

Definition at line 332 of file DataColumn.cpp.

References m_lpChart, AnimatSim::AnimatBase::m_strName, and AnimatSim::AnimatBase::VerifySystemPointers().

Here is the call graph for this function:

Member Data Documentation

int AnimatSim::Charting::DataColumn::m_iColumnIndex

protected

This index is used to determine where in the array buffer that the data is stored. This is direclty related to the index in the array that is used in the GUI to retrieve the data, so they must match or the data plotted in the GUI will be for a different variable.

Definition at line 51 of file DataColumn.h.

Referenced by ColumnIndex(), DataColumn(), operator<(), and StepSimulation().

int AnimatSim::Charting::DataColumn::m_iRowIndex

protected

This index is only used for 3D Array type charts. For normal line charts it is simply -1. However, if it is not -1 then that means we want to specify the column and row where we should add the data for this column

Definition at line 55 of file DataColumn.h.

Referenced by DataColumn(), RowIndex(), and StepSimulation().

The documentation for this class was generated from the following files:

Public Member Functions

Static Public Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
