AnimatSim::Charting::MemoryChart Class Reference

Saves the data in memory. More...

#include <MemoryChart.h>

+ Inheritance diagram for AnimatSim::Charting::MemoryChart:
+ Collaboration diagram for AnimatSim::Charting::MemoryChart:

Public Member Functions

 MemoryChart ()
 Default constructor. More...

virtual ~MemoryChart ()
 Destructor. More...

virtual void Initialize ()
 Initializes this object. More...

virtual void Load (CStdXml &oXml)

virtual bool Lock ()
 Locks this data chart buffer from being written by any other process. More...

virtual void StepSimulation ()
 Step the simulation for this object. More...

virtual std::string Type ()
 returns the string type name of this object. More...

virtual void Unlock ()
 Unlocks this data chart buffer from being written by any other process. More...

- Public Member Functions inherited from AnimatSim::Charting::DataChart
 DataChart ()
 Default constructor. More...

virtual ~DataChart ()
 Destructor. More...

virtual void Activate ()
 Activates this item. More...

virtual void AddColumn (DataColumn *lpColumn)
 Adds a column. More...

virtual void AddColumn (std::string strXml, bool bDoNotInit)
 Creates and adds a DataColumn from XML. More...

virtual void AddData (int iColumn, int iRow, float fltVal)
 Adds a data element to the data buffer. More...

virtual bool AddItem (const std::string &strItemType, const std::string &strXml, bool bThrowError=true, bool bDoNotInit=false)
 Adds a new object to this parent. More...

virtual long BufferByteSize ()
 Gets the buffer byte size. More...

virtual long BufferSize ()
 Gets the buffer size. More...

virtual float ChartTimeBase ()
 Gets the Time base used by this data chart. More...

virtual int CollectInterval ()
 Gets the collect interval. More...

virtual void CollectInterval (int iVal, bool bReInit=true)
 Sets the Collect interval using the time slice. More...

virtual void CollectInterval (float fltVal, bool bReInit=true)
 Sets the Collect interval using the time. More...

virtual long CollectTimeWindow ()
 Gets the collect time window time slices. More...

virtual void CollectTimeWindow (long lVal, bool bReInit=true)
 Sets the Collect time window using time slices. More...

virtual void CollectTimeWindow (float fltVal, bool bReInit=true)
 Sets the collect time window in time value. More...

virtual long ColumnCount ()
 Gets the column count. More...

virtual long CurrentRow ()
 Gets the current row. More...

virtual void CurrentRow (long iVal)
 Sets the Current row. More...

virtual float * DataBuffer ()
 Gets the data buffer. More...

virtual void Deactivate ()
 Deactivates this item. More...

virtual void EndTime (float fltVal, bool bReInit=true)

virtual DataColumnFindColumn (std::string strID, bool bThrowError=true)
 Searches for a column that matches the specified ID. More...

virtual void Load (std::string strProjectPath, std::string strConfigFile)
 Loads a data chart from a file. More...

virtual bool operator< (ActivatedItem *lpItem)
 Compares the Start slice time of two data charts to tell if one is less than the other. More...

virtual std::string ProjectPath ()
 Gets the project path. More...

virtual void ProjectPath (std::string strVal)
 Sets the Project path. More...

virtual void QueryProperties (CStdPtrArray< TypeProperty > &aryProperties)
 Queries this object for a list of properties that can be changed using SetData. More...

virtual void ReInitialize ()
 Re-initialize this object. More...

virtual void RemoveColumn (std::string strID, bool bThrowError=true)
 Removes the column with the specified ID. More...

virtual bool RemoveItem (const std::string &strItemType, const std::string &strID, bool bThrowError=true)
 Removes a child item from this parent. More...

virtual void ResetSimulation ()
 Resets the simulation back to time 0. More...

virtual long RowCount ()
 Gets the row count. More...

virtual void SetData (int iColumn, int iRow, float fltVal)
 Sets a data element to the data buffer. More...

virtual bool SetData (const std::string &strDataType, const std::string &strValue, bool bThrowError=true)
 Set a variable based on a string data type name. More...

virtual bool SetStartEndTime ()
 Gets whether a start/end time is set for this chart. More...

virtual void SetStartEndTime (bool bVal)
 Sets whether a start/end time is specified for this chart. More...

virtual void StartTime (float fltVal, bool bReInit=true)

virtual float * TimeBuffer ()
 Gets the time buffer. More...

virtual long UsedBufferByteSize ()
 Gets the used buffer byte size. More...

virtual long UsedBufferSize ()
 Gets the size of buffer that is currently used. More...

- Public Member Functions inherited from AnimatSim::ActivatedItem
 ActivatedItem ()
 Default constructor. More...

virtual ~ActivatedItem ()
 Destructor. More...

virtual bool AlwaysActive ()
 Gets whether this item is always active. More...

virtual void AlwaysActive (bool bVal)
 Sets whether this item is always active. More...

virtual bool Enabled ()
 Gets whether the item is enabled or not. More...

virtual void Enabled (bool bVal)
 Enables the item. More...

virtual long EndSlice ()
 Gets the end time slice for deactivation. More...

virtual void EndSlice (long lVal, bool bReInit=true)

virtual float EndTime ()
 Gets the end simulation time for deactivation. More...

bool IsActivated ()
 Query if this object is activated. More...

bool IsInitialized ()
 Query if this object is initialized. More...

virtual bool LoadedTime ()
 Gets whether time was loaded or time slices. More...

virtual void LoadedTime (bool bVal)
 Sets whether time was loaded. More...

bool NeedToActivate ()
 Determines if this item needs to be activated. More...

bool NeedToDeactivate ()
 Determines if this item needs to be deactivated. More...

virtual bool NeedToStep ()
 Tells if this item needs to call StepSimulation or not. More...

virtual bool Overlaps (ActivatedItem *lpItem)
 Query if this object overlaps the time period for another ActivatedItem. More...

virtual long StartSlice ()
 Returns the starts slice for activation. More...

virtual void StartSlice (long lVal, bool bReInit=true)

virtual float StartTime ()
 Gets the simulation start time for activation. More...

virtual int StepInterval ()
 Gets the step interval. More...

virtual void StepInterval (int iVal)
 Sets the step interval. More...

virtual int StepIntervalCount ()
 Gets the step interval count. More...

virtual void StepIntervalCount (int iVal)
 Step interval count. More...

virtual void TimeStepModified ()
 Notification method that the time step modified has been modified. Objects should recalculate any slice times as needed. More...

- Public Member Functions inherited from AnimatSim::AnimatBase
 AnimatBase ()
 Constructs an AnimatBase object. More...

virtual ~AnimatBase ()
 Destroys the AnimatBase object.. More...

virtual void AfterResetSimulation ()
 Called after a simulation reset for some objects. More...

virtual long CalculateSnapshotByteSize ()
 Calculates the snapshot byte size. More...

virtual void Copy (CStdSerialize *lpSource)

virtual float * GetDataPointer (const std::string &strDataType)
 Returns a float pointer to a data item of interest in this object. More...

virtual NeuralModuleGetNeuralModule ()
 Gets the neural module. More...

virtual NodeGetNode ()
 Gets the node. More...

virtual SimulatorGetSimulator ()
 Gets the simulator pointer. More...

virtual StructureGetStructure ()
 Gets the structure for this node. More...

virtual bool HasProperty (const std::string &strName)
 Queries this object if it has a property with the given name. More...

virtual std::string ID ()
 Gets the unique GUID ID of this object. More...

virtual void ID (std::string strValue)
 Sets the unique GUID ID of the object. More...

virtual void Kill (bool bState=true)
 Kills. More...

virtual void Load (StdUtils::CStdXml &oXml)
 Loads the item using an XML data packet. More...

virtual void LoadKeyFrameSnapshot (byte *aryBytes, long &lIndex)
 Loads a key frame snapshot. More...

virtual std::string Name ()
 Gets the name of this object. More...

virtual void Name (std::string strValue)
 Sets the name of the object. Blank is acceptable. More...

virtual AnimatPropertyType PropertyType (const std::string &strName)

virtual void Reset ()
 Resets this object. More...

virtual void RigidBodyAdded (std::string strID)

virtual void RigidBodyRemoved (std::string strID)

virtual void SaveKeyFrameSnapshot (byte *aryBytes, long &lIndex)
 Saves a key frame snapshot. More...

virtual bool Selected ()
 Tells if this items is selected or not. More...

virtual void Selected (bool bValue, bool bSelectMultiple)
 Selects this object. More...

virtual bool SetData (const std::string &strDataType, const float fltValue, bool bThrowError=true)
 Set a variable based on a string data type name. More...

virtual bool SetData (const std::string &strDataType, const long lValue, bool bThrowError=true)
 Set a variable based on a string data type name. More...

virtual void SetSystemPointers (Simulator *lpSim, Structure *lpStructure, NeuralModule *lpModule, Node *lpNode, bool bVerify)
 Sets the system pointers. More...

virtual void SimPausing ()
 Called just before the simulation pauses. More...

virtual void SimStarting ()
 Called just before the simulation starts. More...

virtual void SimStopping ()
 Called just before the simulation stops. More...

virtual void Type (std::string strValue)
 Sets the class type for this object. More...

virtual void VerifySystemPointers ()
 Verify that system pointers have been set correctly. More...

virtual void VisualSelectionModeChanged (int iNewMode)
 Visual selection mode changed. More...


Static Public Member Functions

static MemoryChartCastToDerived (AnimatBase *lpBase)

- Static Public Member Functions inherited from AnimatSim::Charting::DataChart
static DataChartCastToDerived (AnimatBase *lpBase)

- Static Public Member Functions inherited from AnimatSim::ActivatedItem
static ActivatedItemCastToDerived (AnimatBase *lpBase)


Protected Attributes

CStdCriticalSection * m_oRowCountLock
 Critical section to lock access to the data buffer for writing.

- Protected Attributes inherited from AnimatSim::Charting::DataChart
CStdMap< std::string, DataColumn * > m_aryColumnsMap
 The array of datacolumns columns. This is a sorted map that is used to get columns based on their ID.

float * m_aryDataBuffer
 Buffer for data variable points.

CStdPtrArray< DataColumnm_aryDataColumns
 The primary array of data columns. This array deletes the columns when destructed.

float * m_aryTimeBuffer
 Buffer for time data points.

bool m_bSetStartEndTime
 true to set the start and end time. If false then the chart collects continuously.

float m_fltCollectInterval
 Tells what the time slice step interval to use when collecting data. This is.

float m_fltCollectTimeWindow
 The time duration where we will collect data.

short m_iCollectInterval
 Tells what the time slice step interval to use when collecting data. This is.

long m_lCollectTimeWindow
 The number of time slices where we will collect data.

long m_lColumnCount
 Number of data columns.

int m_lCurrentCol
 The currently selected column.

int m_lCurrentRow
 The currently selected row.

long m_lRowCount
 Number of rows in the buffer.

std::string m_strConfigFilename
 Filename of the configuration file.

std::string m_strProjectPath
 Full pathname of the project file.

- Protected Attributes inherited from AnimatSim::ActivatedItem
bool m_bAlwaysActive
 Determines whether this item is always active during simulation.

bool m_bInitialized
 true if item has been initialized

bool m_bIsActivated
 true if item has been activated

bool m_bLoadedTime

float m_fltEndTime

float m_fltStartTime

int m_iStepInterval

int m_iStepIntervalCount
 Keeps track of how many time steps have occured since it was zeroed again.

long m_lEndSlice
 The time slice where this item is deactived.

long m_lStartSlice
 The time slice where this item becomes active.

- Protected Attributes inherited from AnimatSim::AnimatBase
bool m_bEnabled
 Tells if this item is enabled or not. If it is not enabled then it is not run.

bool m_bSelected
 Tells whether the object is selected or not.

AnimatSim::Behavior::NeuralModulem_lpModule
 The pointer to this items parentNeuralModule. If this is not relevant for this object then this is NULL.

Nodem_lpNode
 The pointer to this items parent Node. If this is not relevant for this object then this is NULL.

Simulatorm_lpSim
 The pointer to a Simulation.

AnimatSim::Environment::Structurem_lpStructure
 The pointer to this items parent Structure. If this is not relevant for this object then this is NULL.

std::string m_strID
 The unique Id for this object.

std::string m_strName
 The name for this object.

std::string m_strType
 The type for this object. Examples are Box, Plane, Neuron, etc..


Additional Inherited Members

- Protected Member Functions inherited from AnimatSim::Charting::DataChart
virtual long CalculateChartColumnCount ()
 Calculates the chart column count. More...

virtual DataColumnFindColumn (std::string strID, int &iIndex, bool bThrowError)
 Searches for a column that matches the specified ID. More...

DataColumnLoadDataColumn (CStdXml &oXml)
 Loads a data column. More...

- Protected Member Functions inherited from AnimatSim::ActivatedItem
virtual void SetSliceData ()


Detailed Description

Saves the data in memory.

This chart is primarily used by the GUI It keeps the data buffer filled up. If the buffer starts to run over it zeros out the data and starts back at the beginning. This allows the AnimatGUI::Tools::DataChart to poll the MemoryChart on a regular bases so it can suck the data up. When it does this it transfers the stored data from the MemoryChart to the GUI chart and erases it from the MemoryChart and starts collecting all over again. If for some reason the GUI chart does not retrieve the data before the buffer is about to fill up, then we start the collection over so we do not get a buffer overrun, and that data would be lost to the GUI chart.

Author
dcofer
Date
3/18/2011

Definition at line 27 of file MemoryChart.h.

Constructor & Destructor Documentation

AnimatSim::Charting::MemoryChart::MemoryChart ( )

Default constructor.

Author
dcofer
Date
3/18/2011

Definition at line 54 of file MemoryChart.cpp.

References m_oRowCountLock.

AnimatSim::Charting::MemoryChart::~MemoryChart ( )
virtual

Destructor.

Author
dcofer
Date
3/18/2011

Definition at line 65 of file MemoryChart.cpp.

References m_oRowCountLock, and StdUtils::Std_TraceMsg().

+ Here is the call graph for this function:

Member Function Documentation

void AnimatSim::Charting::MemoryChart::Initialize ( )
virtual

Initializes this object.

After an object is loaded in it must be initialized before it can be used. This allows the object to retrieve any pointers or setup memory that it will need during execution. Each object is responsible for initializing any of its child objects, so you simply need to call this method on the containing class to init all child objects. It also calls VerifySystemPointers to make sure that the system pointers have been setup correctly.

Author
dcofer
Date
3/1/2011

Reimplemented from AnimatSim::Charting::DataChart.

Definition at line 93 of file MemoryChart.cpp.

References AnimatSim::Charting::DataChart::Initialize().

+ Here is the call graph for this function:

bool AnimatSim::Charting::MemoryChart::Lock ( )
virtual

Locks this data chart buffer from being written by any other process.

This is for multi-threaded environments. It is called just before data is added to the buffer to prevent any other process from modifying the buffer while we are doing so.

Author
dcofer
Date
3/18/2011
Returns
true if it locks the buffer, false if it is already locked.

Reimplemented from AnimatSim::Charting::DataChart.

Definition at line 79 of file MemoryChart.cpp.

References m_oRowCountLock.

void AnimatSim::Charting::MemoryChart::StepSimulation ( )
virtual

Step the simulation for this object.

This is called on an object each time it is stepped in the simulation. this is where its simulation code is processed. However, StepSimulation is not necessarily called every single time that the simulation as a whole is stepped. A good example of this is that neural modules can have different integration time steps. So a firing rate module may have a DT of 0.5 ms, while an integrate and fire model may have one of 0.1 ms. So the firing rate module would only get its StepSimulation method called every 5th time that the other module was called. This is all handed in the StepSimulation method of the Simulator and NervousSystem.

Author
dcofer
Date
3/1/2011

Reimplemented from AnimatSim::Charting::DataChart.

Definition at line 102 of file MemoryChart.cpp.

References AnimatSim::Charting::DataChart::m_bSetStartEndTime, AnimatSim::Charting::DataChart::m_iCollectInterval, AnimatSim::Charting::DataChart::m_lCurrentRow, AnimatSim::AnimatBase::m_lpSim, AnimatSim::Charting::DataChart::m_lRowCount, m_oRowCountLock, AnimatSim::Charting::DataChart::StepSimulation(), and AnimatSim::Simulator::TimeSlice().

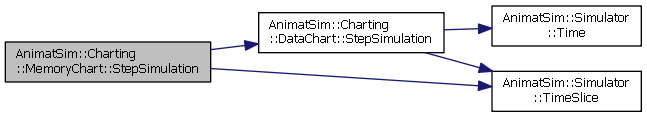

+ Here is the call graph for this function:

std::string AnimatSim::Charting::MemoryChart::Type ( )
virtual

returns the string type name of this object.

Gets the string type description of this object. This is basically just another type of tag that can be applied by the developer of a class to differentiate it. An example of where this is used is in the synaptic types class. I use it to specify the synapse type as gated, modulatory, etc.. They still have different classes, but this gives a string description of that type. It is not mandatory and can be used how the class developer requires.

Author
dcofer
Date
2/22/2011
Returns
string of assigned class type.

Reimplemented from AnimatSim::Charting::DataChart.

Definition at line 77 of file MemoryChart.cpp.

void AnimatSim::Charting::MemoryChart::Unlock ( )
virtual

Unlocks this data chart buffer from being written by any other process.

This is for multi-threaded environments. It is called just after data is added to the buffer to remove the lock so that other process can modify the buffer.

Author
dcofer
Date
3/18/2011

Reimplemented from AnimatSim::Charting::DataChart.

Definition at line 87 of file MemoryChart.cpp.

References m_oRowCountLock.


The documentation for this class was generated from the following files:
