Data chart base class. More...

#include <DataChart.h>

Inheritance diagram for AnimatSim::Charting::DataChart:

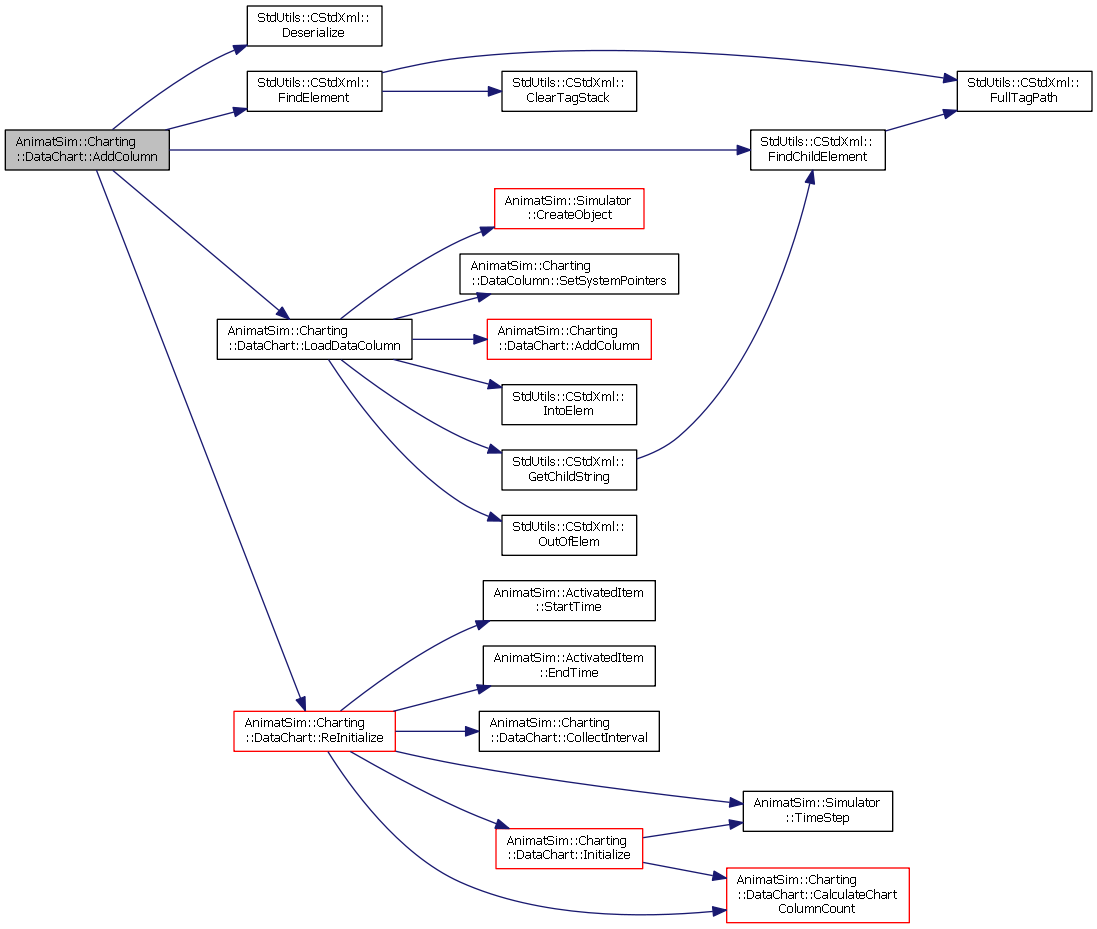

Collaboration diagram for AnimatSim::Charting::DataChart:

Public Member Functions
	DataChart ()
	Default constructor. More...

virtual	~DataChart ()
	Destructor. More...

virtual void	Activate ()
	Activates this item. More...

virtual void	AddColumn (DataColumn *lpColumn)
	Adds a column. More...

virtual void	AddColumn (std::string strXml, bool bDoNotInit)
	Creates and adds a DataColumn from XML. More...

virtual void	AddData (int iColumn, int iRow, float fltVal)
	Adds a data element to the data buffer. More...

virtual bool	AddItem (const std::string &strItemType, const std::string &strXml, bool bThrowError=true, bool bDoNotInit=false)
	Adds a new object to this parent. More...

virtual long	BufferByteSize ()
	Gets the buffer byte size. More...

virtual long	BufferSize ()
	Gets the buffer size. More...

virtual float	ChartTimeBase ()
	Gets the Time base used by this data chart. More...

virtual int	CollectInterval ()
	Gets the collect interval. More...

virtual void	CollectInterval (int iVal, bool bReInit=true)
	Sets the Collect interval using the time slice. More...

virtual void	CollectInterval (float fltVal, bool bReInit=true)
	Sets the Collect interval using the time. More...

virtual long	CollectTimeWindow ()
	Gets the collect time window time slices. More...

virtual void	CollectTimeWindow (long lVal, bool bReInit=true)
	Sets the Collect time window using time slices. More...

virtual void	CollectTimeWindow (float fltVal, bool bReInit=true)
	Sets the collect time window in time value. More...

virtual long	ColumnCount ()
	Gets the column count. More...

virtual long	CurrentRow ()
	Gets the current row. More...

virtual void	CurrentRow (long iVal)
	Sets the Current row. More...

virtual float *	DataBuffer ()
	Gets the data buffer. More...

virtual void	Deactivate ()
	Deactivates this item. More...

virtual void	EndTime (float fltVal, bool bReInit=true)

virtual DataColumn *	FindColumn (std::string strID, bool bThrowError=true)
	Searches for a column that matches the specified ID. More...

virtual void	Initialize ()
	Initializes this object. More...

virtual void	Load (std::string strProjectPath, std::string strConfigFile)
	Loads a data chart from a file. More...

virtual void	Load (CStdXml &oXml)

virtual bool	Lock ()
	Locks this data chart buffer from being written by any other process. More...

virtual bool	operator< (ActivatedItem *lpItem)
	Compares the Start slice time of two data charts to tell if one is less than the other. More...

virtual std::string	ProjectPath ()
	Gets the project path. More...

virtual void	ProjectPath (std::string strVal)
	Sets the Project path. More...

virtual void	QueryProperties (CStdPtrArray< TypeProperty > &aryProperties)
	Queries this object for a list of properties that can be changed using SetData. More...

virtual void	ReInitialize ()
	Re-initialize this object. More...

virtual void	RemoveColumn (std::string strID, bool bThrowError=true)
	Removes the column with the specified ID. More...

virtual bool	RemoveItem (const std::string &strItemType, const std::string &strID, bool bThrowError=true)
	Removes a child item from this parent. More...

virtual void	ResetSimulation ()
	Resets the simulation back to time 0. More...

virtual long	RowCount ()
	Gets the row count. More...

virtual void	SetData (int iColumn, int iRow, float fltVal)
	Sets a data element to the data buffer. More...

virtual bool	SetData (const std::string &strDataType, const std::string &strValue, bool bThrowError=true)
	Set a variable based on a string data type name. More...

virtual bool	SetStartEndTime ()
	Gets whether a start/end time is set for this chart. More...

virtual void	SetStartEndTime (bool bVal)
	Sets whether a start/end time is specified for this chart. More...

virtual void	StartTime (float fltVal, bool bReInit=true)

virtual void	StepSimulation ()
	Step the simulation for this object. More...

virtual float *	TimeBuffer ()
	Gets the time buffer. More...

virtual std::string	Type ()
	returns the string type name of this object. More...

virtual void	Unlock ()
	Unlocks this data chart buffer from being written by any other process. More...

virtual long	UsedBufferByteSize ()
	Gets the used buffer byte size. More...

virtual long	UsedBufferSize ()
	Gets the size of buffer that is currently used. More...

Public Member Functions inherited from AnimatSim::ActivatedItem
	ActivatedItem ()
	Default constructor. More...

virtual	~ActivatedItem ()
	Destructor. More...

virtual bool	AlwaysActive ()
	Gets whether this item is always active. More...

virtual void	AlwaysActive (bool bVal)
	Sets whether this item is always active. More...

virtual bool	Enabled ()
	Gets whether the item is enabled or not. More...

virtual void	Enabled (bool bVal)
	Enables the item. More...

virtual long	EndSlice ()
	Gets the end time slice for deactivation. More...

virtual void	EndSlice (long lVal, bool bReInit=true)

virtual float	EndTime ()
	Gets the end simulation time for deactivation. More...

bool	IsActivated ()
	Query if this object is activated. More...

bool	IsInitialized ()
	Query if this object is initialized. More...

virtual bool	LoadedTime ()
	Gets whether time was loaded or time slices. More...

virtual void	LoadedTime (bool bVal)
	Sets whether time was loaded. More...

bool	NeedToActivate ()
	Determines if this item needs to be activated. More...

bool	NeedToDeactivate ()
	Determines if this item needs to be deactivated. More...

virtual bool	NeedToStep ()
	Tells if this item needs to call StepSimulation or not. More...

virtual bool	Overlaps (ActivatedItem *lpItem)
	Query if this object overlaps the time period for another ActivatedItem. More...

virtual long	StartSlice ()
	Returns the starts slice for activation. More...

virtual void	StartSlice (long lVal, bool bReInit=true)

virtual float	StartTime ()
	Gets the simulation start time for activation. More...

virtual int	StepInterval ()
	Gets the step interval. More...

virtual void	StepInterval (int iVal)
	Sets the step interval. More...

virtual int	StepIntervalCount ()
	Gets the step interval count. More...

virtual void	StepIntervalCount (int iVal)
	Step interval count. More...

virtual void	TimeStepModified ()
	Notification method that the time step modified has been modified. Objects should recalculate any slice times as needed. More...

Public Member Functions inherited from AnimatSim::AnimatBase
	AnimatBase ()
	Constructs an AnimatBase object. More...

virtual	~AnimatBase ()
	Destroys the AnimatBase object.. More...

virtual void	AfterResetSimulation ()
	Called after a simulation reset for some objects. More...

virtual long	CalculateSnapshotByteSize ()
	Calculates the snapshot byte size. More...

virtual void	Copy (CStdSerialize *lpSource)

virtual float *	GetDataPointer (const std::string &strDataType)
	Returns a float pointer to a data item of interest in this object. More...

virtual NeuralModule *	GetNeuralModule ()
	Gets the neural module. More...

virtual Node *	GetNode ()
	Gets the node. More...

virtual Simulator *	GetSimulator ()
	Gets the simulator pointer. More...

virtual Structure *	GetStructure ()
	Gets the structure for this node. More...

virtual bool	HasProperty (const std::string &strName)
	Queries this object if it has a property with the given name. More...

virtual std::string	ID ()
	Gets the unique GUID ID of this object. More...

virtual void	ID (std::string strValue)
	Sets the unique GUID ID of the object. More...

virtual void	Kill (bool bState=true)
	Kills. More...

virtual void	Load (StdUtils::CStdXml &oXml)
	Loads the item using an XML data packet. More...

virtual void	LoadKeyFrameSnapshot (byte *aryBytes, long &lIndex)
	Loads a key frame snapshot. More...

virtual std::string	Name ()
	Gets the name of this object. More...

virtual void	Name (std::string strValue)
	Sets the name of the object. Blank is acceptable. More...

virtual AnimatPropertyType	PropertyType (const std::string &strName)

virtual void	Reset ()
	Resets this object. More...

virtual void	RigidBodyAdded (std::string strID)

virtual void	RigidBodyRemoved (std::string strID)

virtual void	SaveKeyFrameSnapshot (byte *aryBytes, long &lIndex)
	Saves a key frame snapshot. More...

virtual bool	Selected ()
	Tells if this items is selected or not. More...

virtual void	Selected (bool bValue, bool bSelectMultiple)
	Selects this object. More...

virtual bool	SetData (const std::string &strDataType, const float fltValue, bool bThrowError=true)
	Set a variable based on a string data type name. More...

virtual bool	SetData (const std::string &strDataType, const long lValue, bool bThrowError=true)
	Set a variable based on a string data type name. More...

virtual void	SetSystemPointers (Simulator lpSim, Structure lpStructure, NeuralModule lpModule, Node lpNode, bool bVerify)
	Sets the system pointers. More...

virtual void	SimPausing ()
	Called just before the simulation pauses. More...

virtual void	SimStarting ()
	Called just before the simulation starts. More...

virtual void	SimStopping ()
	Called just before the simulation stops. More...

virtual void	Type (std::string strValue)
	Sets the class type for this object. More...

virtual void	VerifySystemPointers ()
	Verify that system pointers have been set correctly. More...

virtual void	VisualSelectionModeChanged (int iNewMode)
	Visual selection mode changed. More...

Static Public Member Functions
static DataChart *	CastToDerived (AnimatBase *lpBase)

Static Public Member Functions inherited from AnimatSim::ActivatedItem
static ActivatedItem *	CastToDerived (AnimatBase *lpBase)

Protected Member Functions
virtual long	CalculateChartColumnCount ()
	Calculates the chart column count. More...

virtual DataColumn *	FindColumn (std::string strID, int &iIndex, bool bThrowError)
	Searches for a column that matches the specified ID. More...

DataColumn *	LoadDataColumn (CStdXml &oXml)
	Loads a data column. More...

Protected Member Functions inherited from AnimatSim::ActivatedItem
virtual void	SetSliceData ()

Protected Attributes
CStdMap< std::string, DataColumn * >	m_aryColumnsMap
	The array of datacolumns columns. This is a sorted map that is used to get columns based on their ID.

float *	m_aryDataBuffer
	Buffer for data variable points.

CStdPtrArray< DataColumn >	m_aryDataColumns
	The primary array of data columns. This array deletes the columns when destructed.

float *	m_aryTimeBuffer
	Buffer for time data points.

bool	m_bSetStartEndTime
	true to set the start and end time. If false then the chart collects continuously.

float	m_fltCollectInterval
	Tells what the time slice step interval to use when collecting data. This is.

float	m_fltCollectTimeWindow
	The time duration where we will collect data.

short	m_iCollectInterval
	Tells what the time slice step interval to use when collecting data. This is.

long	m_lCollectTimeWindow
	The number of time slices where we will collect data.

long	m_lColumnCount
	Number of data columns.

int	m_lCurrentCol
	The currently selected column.

int	m_lCurrentRow
	The currently selected row.

long	m_lRowCount
	Number of rows in the buffer.

std::string	m_strConfigFilename
	Filename of the configuration file.

std::string	m_strProjectPath
	Full pathname of the project file.

Protected Attributes inherited from AnimatSim::ActivatedItem
bool	m_bAlwaysActive
	Determines whether this item is always active during simulation.

bool	m_bInitialized
	true if item has been initialized

bool	m_bIsActivated
	true if item has been activated

bool	m_bLoadedTime

float	m_fltEndTime

float	m_fltStartTime

int	m_iStepInterval

int	m_iStepIntervalCount
	Keeps track of how many time steps have occured since it was zeroed again.

long	m_lEndSlice
	The time slice where this item is deactived.

long	m_lStartSlice
	The time slice where this item becomes active.

Protected Attributes inherited from AnimatSim::AnimatBase
bool	m_bEnabled
	Tells if this item is enabled or not. If it is not enabled then it is not run.

bool	m_bSelected
	Tells whether the object is selected or not.

AnimatSim::Behavior::NeuralModule *	m_lpModule
	The pointer to this items parentNeuralModule. If this is not relevant for this object then this is NULL.

Node *	m_lpNode
	The pointer to this items parent Node. If this is not relevant for this object then this is NULL.

Simulator *	m_lpSim
	The pointer to a Simulation.

AnimatSim::Environment::Structure *	m_lpStructure
	The pointer to this items parent Structure. If this is not relevant for this object then this is NULL.

std::string	m_strID
	The unique Id for this object.

std::string	m_strName
	The name for this object.

std::string	m_strType
	The type for this object. Examples are Box, Plane, Neuron, etc..

Detailed Description

Data chart base class.

This is the base class for all charting activity. It is derived from an ActivatedItem, so it has a start/end time where it is activated and then deactivated. The user specifies a series of DataColumn objects for the chart. Each DataColumn is responsible for collecting data for a single variable from somewhere in the system. You can control how often the data is collected. The data is stored in memory buffers. There are several derived types of Data charts. The FileChart saves the stored data points into a file upon deactivation, while the MemoryChart stores the data in-memory in a continuing basis.

Author: dcofer

Date: 3/18/2011

Definition at line 31 of file DataChart.h.

Constructor & Destructor Documentation

AnimatSim::Charting::DataChart::DataChart ( )

Default constructor.

Author: dcofer

Date: 3/18/2011

Definition at line 54 of file DataChart.cpp.

References m_aryDataBuffer, m_aryTimeBuffer, m_fltCollectInterval, m_fltCollectTimeWindow, m_iCollectInterval, m_lCollectTimeWindow, m_lColumnCount, m_lCurrentCol, m_lCurrentRow, and m_lRowCount.

AnimatSim::Charting::DataChart::~DataChart ( )

virtual

Destructor.

Author: dcofer

Date: 3/18/2011

Definition at line 74 of file DataChart.cpp.

References m_aryDataBuffer, m_aryDataColumns, m_aryTimeBuffer, and StdUtils::Std_TraceMsg().

Here is the call graph for this function:

Member Function Documentation

void AnimatSim::Charting::DataChart::Activate ( )

virtual

Activates this item.

Author: dcofer

Date: 3/1/2011

Reimplemented from AnimatSim::ActivatedItem.

Definition at line 685 of file DataChart.cpp.

References AnimatSim::ActivatedItem::Activate(), and m_aryDataColumns.

Here is the call graph for this function:

void AnimatSim::Charting::DataChart::AddColumn ( DataColumn * lpColumn )

virtual

Adds a column.

Author: dcofer

Date: 3/18/2011

Parameters

[in,out] lpColumn Pointer to a DataColumn to add to the chart.

Definition at line 594 of file DataChart.cpp.

References AnimatSim::AnimatBase::ID(), m_aryColumnsMap, m_aryDataColumns, StdUtils::CStdErrorInfo::m_lError, StdUtils::CStdErrorInfo::m_strError, and StdUtils::Std_CheckString().

Referenced by AnimatSim::Charting::DataChartMgr::AddDataColumn(), AddItem(), and LoadDataColumn().

Here is the call graph for this function:

Here is the caller graph for this function:

void AnimatSim::Charting::DataChart::AddColumn	(	std::string	strXml,
		bool	bDoNotInit
	)

virtual

Creates and adds a DataColumn from XML.

This method is primarily used by the GUI to create a new data column when an xml packet is provided.

Author: dcofer

Date: 3/18/2011

Parameters

strXml The xml packet to load for the data column.

Definition at line 575 of file DataChart.cpp.

References StdUtils::CStdXml::Deserialize(), StdUtils::CStdXml::FindChildElement(), StdUtils::CStdXml::FindElement(), LoadDataColumn(), and ReInitialize().

Here is the call graph for this function:

void AnimatSim::Charting::DataChart::AddData	(	int	iColumn,
		int	iRow,
		float	fltVal
	)

virtual

Adds a data element to the data buffer.

Author: dcofer

Date: 3/18/2011

Parameters

iColumn	The column in the data buffer where we need to add the value.
iRow	The row in the data buffer where we need to add the value.
fltVal	The new value to add.

Definition at line 826 of file DataChart.cpp.

References m_lCurrentCol, and SetData().

Referenced by AnimatSim::Charting::DataColumn::StepSimulation().

Here is the call graph for this function:

Here is the caller graph for this function:

bool AnimatSim::Charting::DataChart::AddItem	(	const std::string &	strItemType,
		const std::string &	strXml,
		bool	bThrowError = `true`,
		bool	bDoNotInit = `false`
	)

virtual

Adds a new object to this parent.

Generic method to add a new child item to this parent by specifying a string item type descriptor and an xml packet that can be used to load in the new object. The GUI uses this method to create new items that were added with the user interface. The item type lets the method determine what type of item is being created, like synapse, neuron, body part, etc.. It then gets the modulename, classname, and type from the xml and calls CreateObject to create the appropriate type of object. Then it passes in the xml packet to the new objects load method and does any needed initialization and adds it to the parent.

Author: dcofer

Date: 2/22/2011

Parameters

strItemType	String descriptor of the type of item that is being created.
strXml	XML packet that is used to create and load the new item.
bThrowError	If true then throw an error if there is a problem, otherwise return false.

Returns: true if it succeeds, false if it fails.

Reimplemented from AnimatSim::AnimatBase.

Definition at line 760 of file DataChart.cpp.

References AddColumn(), and StdUtils::Std_CheckString().

Here is the call graph for this function:

long AnimatSim::Charting::DataChart::BufferByteSize ( )

virtual

Gets the buffer byte size.

Author: dcofer

Date: 3/18/2011

Returns: Buffer byte size.

Definition at line 181 of file DataChart.cpp.

References BufferSize().

Here is the call graph for this function:

long AnimatSim::Charting::DataChart::BufferSize ( )

virtual

Gets the buffer size.

Author: dcofer

Date: 3/18/2011

Returns: The length of the data buffer.

Definition at line 161 of file DataChart.cpp.

References m_lColumnCount, and m_lRowCount.

Referenced by BufferByteSize().

Here is the caller graph for this function:

long AnimatSim::Charting::DataChart::CalculateChartColumnCount ( )

protectedvirtual

Calculates the chart column count.

Some data columns can have more than on column in the data buffer. We call the ColumnCount property of each column to find the total number for the chart.

Author: dcofer

Date: 3/18/2011

Returns: The calculated chart column count.

Definition at line 555 of file DataChart.cpp.

References ColumnCount(), and m_aryDataColumns.

Referenced by Initialize(), and ReInitialize().

Here is the call graph for this function:

Here is the caller graph for this function:

float AnimatSim::Charting::DataChart::ChartTimeBase ( )

virtual

Gets the Time base used by this data chart.

Author: dcofer

Date: 10/13/2014

Returns: Time base for this chart

Definition at line 279 of file DataChart.cpp.

References m_iCollectInterval, and AnimatSim::AnimatBase::m_lpSim.

int AnimatSim::Charting::DataChart::CollectInterval ( )

virtual

Gets the collect interval.

The collect data interval tells how many time slices should occur in-between collecting data.

Author: dcofer

Date: 3/18/2011

Returns: The collect interval.

Definition at line 224 of file DataChart.cpp.

References m_iCollectInterval.

Referenced by ReInitialize(), and SetData().

Here is the caller graph for this function:

void AnimatSim::Charting::DataChart::CollectInterval	(	int	iVal,
		bool	bReInit = `true`
	)

virtual

Sets the Collect interval using the time slice.

Author: dcofer

Date: 3/18/2011

Parameters

iVal	The new interval.

Definition at line 234 of file DataChart.cpp.

References m_fltCollectInterval, m_iCollectInterval, AnimatSim::AnimatBase::m_lpSim, ReInitialize(), and AnimatSim::Simulator::TimeStep().

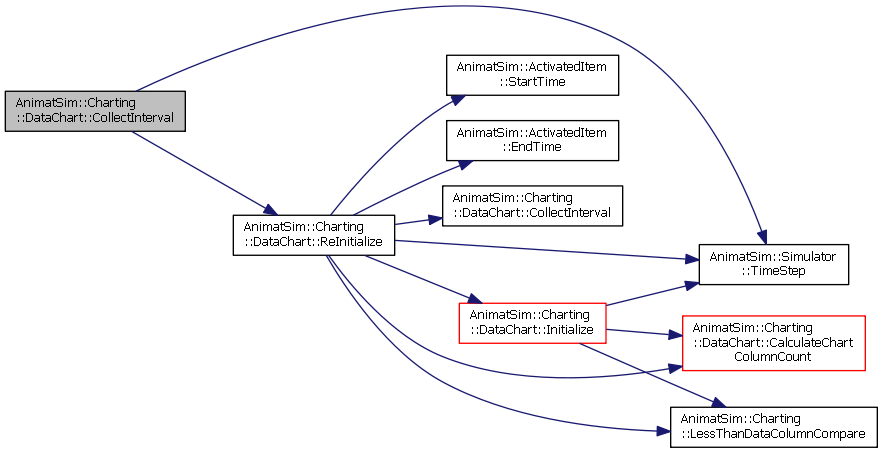

Here is the call graph for this function:

void AnimatSim::Charting::DataChart::CollectInterval	(	float	fltVal,
		bool	bReInit = `true`
	)

virtual

Sets the Collect interval using the time.

This lets the user specify the collect interval using a time value. It then calculates the number of time slices for the collect interval.

Author: dcofer

Date: 3/18/2011

Parameters

fltVal The new time value.

Definition at line 254 of file DataChart.cpp.

References m_fltCollectInterval, m_iCollectInterval, AnimatSim::AnimatBase::m_lpSim, ReInitialize(), StdUtils::Std_IsAboveMin(), and AnimatSim::Simulator::TimeStep().

Here is the call graph for this function:

long AnimatSim::Charting::DataChart::CollectTimeWindow ( )

virtual

Gets the collect time window time slices.

Author: dcofer

Date: 3/18/2011

Returns: Number of time slices that data is collected.

Definition at line 299 of file DataChart.cpp.

References m_lCollectTimeWindow.

Referenced by SetData().

Here is the caller graph for this function:

void AnimatSim::Charting::DataChart::CollectTimeWindow	(	long	lVal,
		bool	bReInit = `true`
	)

virtual

Sets the Collect time window using time slices.

Author: dcofer

Date: 3/18/2011

Parameters

lVal	The new value in time slices.

Definition at line 309 of file DataChart.cpp.

References m_lCollectTimeWindow, and ReInitialize().

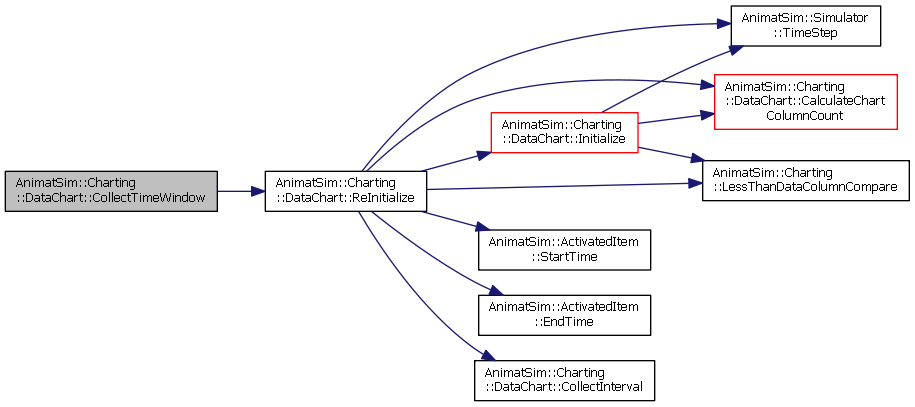

Here is the call graph for this function:

void AnimatSim::Charting::DataChart::CollectTimeWindow	(	float	fltVal,
		bool	bReInit = `true`
	)

virtual

Sets the collect time window in time value.

Author: dcofer

Date: 3/18/2011

Parameters

fltVal The new time value.

Definition at line 325 of file DataChart.cpp.

References m_fltCollectTimeWindow, m_lCollectTimeWindow, AnimatSim::ActivatedItem::m_lEndSlice, AnimatSim::AnimatBase::m_lpSim, AnimatSim::ActivatedItem::m_lStartSlice, ReInitialize(), and AnimatSim::Simulator::TimeStep().

Here is the call graph for this function:

long AnimatSim::Charting::DataChart::ColumnCount ( )

virtual

Gets the column count.

Author: dcofer

Date: 3/18/2011

Returns: number of DataColumn objects.

Definition at line 366 of file DataChart.cpp.

References m_lColumnCount.

Referenced by CalculateChartColumnCount().

Here is the caller graph for this function:

long AnimatSim::Charting::DataChart::CurrentRow ( )

virtual

Gets the current row.

Author: dcofer

Date: 3/18/2011

Returns: The currently selected row in the data buffer.

Definition at line 386 of file DataChart.cpp.

References m_lCurrentRow.

void AnimatSim::Charting::DataChart::CurrentRow ( long iVal )

virtual

Sets the Current row.

Author: dcofer

Date: 3/18/2011

Parameters

iVal	The new current row value.

Reimplemented in AnimatSim::Charting::ArrayChart.

Definition at line 396 of file DataChart.cpp.

References m_lCurrentRow.

float * AnimatSim::Charting::DataChart::DataBuffer ( )

virtual

Gets the data buffer.

Author: dcofer

Date: 3/18/2011

Returns: Pointer to the data buffer.

Definition at line 211 of file DataChart.cpp.

References m_aryDataBuffer.

void AnimatSim::Charting::DataChart::Deactivate ( )

virtual

Deactivates this item.

Author: dcofer

Date: 3/1/2011

Reimplemented from AnimatSim::ActivatedItem.

Reimplemented in AnimatSim::Charting::FileChart.

Definition at line 694 of file DataChart.cpp.

References AnimatSim::ActivatedItem::Deactivate(), and m_aryDataColumns.

Referenced by AnimatSim::Charting::FileChart::Deactivate().

Here is the call graph for this function:

Here is the caller graph for this function:

DataColumn * AnimatSim::Charting::DataChart::FindColumn	(	std::string	strID,
		int &	iIndex,
		bool	bThrowError
	)

protectedvirtual

Searches for a column that matches the specified ID.

Author: dcofer

Date: 3/18/2011

Parameters

	strID	GUID ID of the column to find.
[in,out]	iIndex	Zero-based index of the found column in the array.
	bThrowError	If true and the ID is not found then it throws an error, otherwise it does nothing.

Returns: null if it the column is not found and bThrowError is false, else a pointer to the found column.

Definition at line 666 of file DataChart.cpp.

References AnimatSim::AnimatBase::ID(), m_aryDataColumns, and StdUtils::Std_CheckString().

Referenced by AnimatSim::Charting::DataChartMgr::FindDataColumn(), and RemoveColumn().

Here is the call graph for this function:

Here is the caller graph for this function:

DataColumn * AnimatSim::Charting::DataChart::FindColumn	(	std::string	strID,
		bool	bThrowError = `true`
	)

virtual

Searches for a column that matches the specified ID.

Author: dcofer

Date: 3/18/2011

Parameters

strID	GUID ID of the column to find.
bThrowError	If true and the ID is not found then it throws an error, otherwise it does nothing.

Returns: null if it the column is not found and bThrowError is false, else a pointer to the found column.

Definition at line 640 of file DataChart.cpp.

References m_aryColumnsMap, and StdUtils::Std_CheckString().

Here is the call graph for this function:

void AnimatSim::Charting::DataChart::Initialize ( )

virtual

Initializes this object.

After an object is loaded in it must be initialized before it can be used. This allows the object to retrieve any pointers or setup memory that it will need during execution. Each object is responsible for initializing any of its child objects, so you simply need to call this method on the containing class to init all child objects. It also calls VerifySystemPointers to make sure that the system pointers have been setup correctly.

Author: dcofer

Date: 3/1/2011

Reimplemented from AnimatSim::ActivatedItem.

Reimplemented in AnimatSim::Charting::FileChart, AnimatSim::Charting::MemoryChart, and AnimatSim::Charting::ArrayChart.

Definition at line 422 of file DataChart.cpp.

References CalculateChartColumnCount(), AnimatSim::ActivatedItem::Initialize(), AnimatSim::Charting::LessThanDataColumnCompare(), m_aryDataBuffer, m_aryDataColumns, m_aryTimeBuffer, m_fltCollectTimeWindow, m_iCollectInterval, m_lCollectTimeWindow, m_lColumnCount, AnimatSim::ActivatedItem::m_lEndSlice, AnimatSim::AnimatBase::m_lpSim, m_lRowCount, AnimatSim::ActivatedItem::m_lStartSlice, and AnimatSim::Simulator::TimeStep().

Referenced by AnimatSim::Charting::MemoryChart::Initialize(), AnimatSim::Charting::FileChart::Initialize(), and ReInitialize().

Here is the call graph for this function:

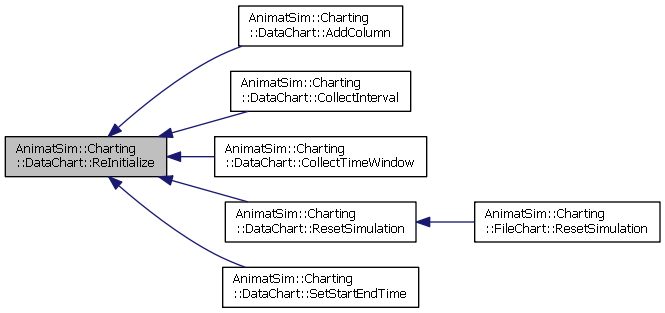

Here is the caller graph for this function:

void AnimatSim::Charting::DataChart::Load	(	std::string	strProjectPath,
		std::string	strConfigFile
	)

virtual

Loads a data chart from a file.

Author: dcofer

Date: 3/18/2011

Parameters

strProjectPath	Full pathname of the string project file.
strConfigFile	The string configuration file.

Definition at line 867 of file DataChart.cpp.

References StdUtils::CStdXml::FindChildElement(), StdUtils::CStdXml::FindElement(), StdUtils::CStdXml::Load(), m_strConfigFilename, m_strProjectPath, and StdUtils::Std_IsBlank().

Referenced by AnimatSim::Charting::DataChartMgr::LoadDataChart().

Here is the call graph for this function:

Here is the caller graph for this function:

DataColumn * AnimatSim::Charting::DataChart::LoadDataColumn ( CStdXml & oXml )

protected

Loads a data column.

Author: dcofer

Date: 3/18/2011

Parameters

[in,out] oXml The xml to use when loading the data column.

Returns: Pointer to the new DataColumn.

Exceptions

Throws an exception if there is an error creating or loading the DataColumn.

Definition at line 941 of file DataChart.cpp.

References AddColumn(), AnimatSim::Simulator::CreateObject(), StdUtils::CStdXml::GetChildString(), StdUtils::CStdXml::IntoElem(), AnimatSim::AnimatBase::m_lpSim, StdUtils::CStdXml::OutOfElem(), and AnimatSim::Charting::DataColumn::SetSystemPointers().

Referenced by AddColumn().

Here is the call graph for this function:

Here is the caller graph for this function:

bool AnimatSim::Charting::DataChart::Lock ( )

virtual

Locks this data chart buffer from being written by any other process.

This is for multi-threaded environments. It is called just before data is added to the buffer to prevent any other process from modifying the buffer while we are doing so.

Author: dcofer

Date: 3/18/2011

Returns: true if it locks the buffer, false if it is already locked.

Reimplemented in AnimatSim::Charting::MemoryChart.

Definition at line 409 of file DataChart.cpp.

bool AnimatSim::Charting::DataChart::operator< ( ActivatedItem * lpItem )

virtual

Compares the Start slice time of two data charts to tell if one is less than the other.

This is used within an operation that sorts the data charts.

Returns: true if this items start slice is less than the one passed in, false if not.

Implements AnimatSim::ActivatedItem.

Definition at line 94 of file DataChart.cpp.

References AnimatSim::ActivatedItem::m_lEndSlice, and AnimatSim::ActivatedItem::m_lStartSlice.

std::string AnimatSim::Charting::DataChart::ProjectPath ( )

virtual

Gets the project path.

Author: dcofer

Date: 3/18/2011

Returns: project path.

Definition at line 346 of file DataChart.cpp.

References m_strProjectPath.

Referenced by AnimatSim::Charting::DataChartMgr::LoadDataChart().

Here is the caller graph for this function:

void AnimatSim::Charting::DataChart::ProjectPath ( std::string strVal )

virtual

Sets the Project path.

Author: dcofer

Date: 3/18/2011

Parameters

strVal The new value.

Definition at line 356 of file DataChart.cpp.

References m_strProjectPath.

void AnimatSim::Charting::DataChart::QueryProperties ( CStdPtrArray< TypeProperty > & aryProperties )

virtual

Queries this object for a list of properties that can be changed using SetData.

The method provides a list of the properties that can be set using the SetData method. It gives the property name and the type of data that should be passed to it. Valid date types are Boolean, Float, Integer, and Xml.

Author: dcofer

Date: 2/22/2011

Parameters

aryNames	Array list of the property names.
strTypes	Array list of the type that is associated with the cooresponding name in the list.

Returns: Nothing.

Reimplemented from AnimatSim::AnimatBase.

Definition at line 749 of file DataChart.cpp.

References AnimatSim::AnimatBase::QueryProperties().

Here is the call graph for this function:

void AnimatSim::Charting::DataChart::ReInitialize ( )

virtual

Re-initialize this object.

Some objects like data charts need to be re-initialized some times. An example of when that would be needed is when the simulation is re-started.

Author: dcofer

Date: 3/1/2011

Reimplemented from AnimatSim::ActivatedItem.

Reimplemented in AnimatSim::Charting::ArrayChart.

Definition at line 463 of file DataChart.cpp.

References CalculateChartColumnCount(), CollectInterval(), AnimatSim::ActivatedItem::EndTime(), Initialize(), AnimatSim::Charting::LessThanDataColumnCompare(), m_aryDataBuffer, m_aryDataColumns, m_aryTimeBuffer, AnimatSim::ActivatedItem::m_bInitialized, m_fltCollectInterval, m_fltCollectTimeWindow, AnimatSim::ActivatedItem::m_fltEndTime, AnimatSim::ActivatedItem::m_fltStartTime, m_iCollectInterval, m_lCollectTimeWindow, m_lColumnCount, m_lCurrentRow, AnimatSim::ActivatedItem::m_lEndSlice, AnimatSim::AnimatBase::m_lpSim, m_lRowCount, AnimatSim::ActivatedItem::m_lStartSlice, AnimatSim::ActivatedItem::StartTime(), and AnimatSim::Simulator::TimeStep().

Referenced by AddColumn(), CollectInterval(), CollectTimeWindow(), ResetSimulation(), and SetStartEndTime().

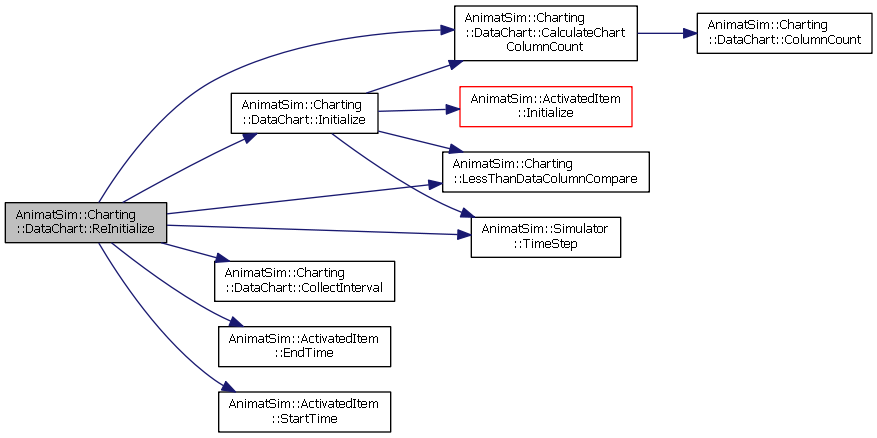

Here is the call graph for this function:

Here is the caller graph for this function:

void AnimatSim::Charting::DataChart::RemoveColumn	(	std::string	strID,
		bool	bThrowError = `true`
	)

virtual

Removes the column with the specified ID.

Author: dcofer

Date: 3/18/2011

Parameters

strID	GUID ID of the DataColumn to remove.
bThrowError	If true and the ID is not found then it throws an error, otherwise it does nothing.

Definition at line 619 of file DataChart.cpp.

References FindColumn(), m_aryColumnsMap, m_aryDataColumns, and StdUtils::Std_CheckString().

Referenced by AnimatSim::Charting::DataChartMgr::RemoveDataColumn(), and RemoveItem().

Here is the call graph for this function:

Here is the caller graph for this function:

bool AnimatSim::Charting::DataChart::RemoveItem	(	const std::string &	strItemType,
		const std::string &	strID,
		bool	bThrowError = `true`
	)

virtual

Removes a child item from this parent.

This is a generic method that is used to delete a child object from this parent. The GUI uses this method to remove objects from the simulation that have been deleted in the UI. The item type lets the method determine what type of item is being deleted, like synapse, neuron, body part, etc.. The ID is then used to delete that specific item.

Author: dcofer

Date: 2/22/2011

Parameters

strItemType	String descriptor of the type of item that is being created.
strID	Unique ID of the item that will be removed.
bThrowError	If true then throw an error if there is a problem, otherwise return false.

Returns: true if it succeeds, false if it fails.

Reimplemented from AnimatSim::AnimatBase.

Definition at line 777 of file DataChart.cpp.

References RemoveColumn(), and StdUtils::Std_CheckString().

Here is the call graph for this function:

void AnimatSim::Charting::DataChart::ResetSimulation ( )

virtual

Resets the simulation back to time 0.

This method calls the ResetSimulation method on all subitems in order to reset the simulation back to the beginning.

Author: dcofer

Date: 3/1/2011

Reimplemented from AnimatSim::ActivatedItem.

Reimplemented in AnimatSim::Charting::FileChart.

Definition at line 537 of file DataChart.cpp.

References m_lCurrentCol, m_lCurrentRow, ReInitialize(), and AnimatSim::ActivatedItem::ResetSimulation().

Referenced by AnimatSim::Charting::FileChart::ResetSimulation().

Here is the call graph for this function:

Here is the caller graph for this function:

long AnimatSim::Charting::DataChart::RowCount ( )

virtual

Gets the row count.

Author: dcofer

Date: 3/18/2011

Returns: number of rows in this array of data.

Definition at line 376 of file DataChart.cpp.

References m_lRowCount.

void AnimatSim::Charting::DataChart::SetData	(	int	iColumn,
		int	iRow,
		float	fltVal
	)

virtual

Sets a data element to the data buffer.

Author: dcofer

Date: 3/18/2011

Parameters

iColumn	The column in the data buffer where we need to add the value.
iRow	The row in the data buffer where we need to add the value.
fltVal	The new value to add.

Definition at line 842 of file DataChart.cpp.

References m_aryDataBuffer, m_lColumnCount, m_lCurrentCol, m_lCurrentRow, and m_lRowCount.

Referenced by AddData().

Here is the caller graph for this function:

bool AnimatSim::Charting::DataChart::SetData	(	const std::string &	strDataType,
		const std::string &	strValue,
		bool	bThrowError = `true`
	)

virtual

Set a variable based on a string data type name.

This is a generic method that can be used to set any variable in an AnimatBase object by specifying the name of the variable and a string representation of that data. The GUI uses this method to set data into variables in the simulation when the user changes them in the UI. The value string can be as simple as a float or int, or as complex as an xml packet. It is the developers responsibilty to know what type of data is needed and to process it accordingly.

Author: dcofer

Date: 2/22/2011

Parameters

strDataType	string name of the data type to set.
strValue	The string value of the data. It is up to the developer to determine what this should be. For example, in most cases it is simply a float and you just have to convert it to a float and make the appropriate mutator method call. However, it can be any type of string, including an entire xml packet. It is the developers responsibility to know how to set and process the data as required.
bThrowError	true to throw error if there is a problem. If false then it will not return an error, just return false.

Returns: true if it succeeds, false if it fails.

Reimplemented from AnimatSim::ActivatedItem.

Definition at line 705 of file DataChart.cpp.

References CollectInterval(), CollectTimeWindow(), AnimatSim::ActivatedItem::EndTime(), AnimatSim::ActivatedItem::SetData(), SetStartEndTime(), AnimatSim::ActivatedItem::StartTime(), StdUtils::Std_CheckString(), and StdUtils::Std_ToBool().

Here is the call graph for this function:

bool AnimatSim::Charting::DataChart::SetStartEndTime ( )

virtual

Gets whether a start/end time is set for this chart.

Author: dcofer

Date: 3/18/2011

Returns: true if it start/end time is specified, false otherwise.

Definition at line 136 of file DataChart.cpp.

References m_bSetStartEndTime.

Referenced by SetData().

Here is the caller graph for this function:

void AnimatSim::Charting::DataChart::SetStartEndTime ( bool bVal )

virtual

Sets whether a start/end time is specified for this chart.

Author: dcofer

Date: 3/18/2011

Parameters

bVal	true to use the start/end time.

Definition at line 146 of file DataChart.cpp.

References AnimatSim::ActivatedItem::AlwaysActive(), m_bSetStartEndTime, and ReInitialize().

Here is the call graph for this function:

void AnimatSim::Charting::DataChart::StepSimulation ( )

virtual

Step the simulation for this object.

This is called on an object each time it is stepped in the simulation. this is where its simulation code is processed. However, StepSimulation is not necessarily called every single time that the simulation as a whole is stepped. A good example of this is that neural modules can have different integration time steps. So a firing rate module may have a DT of 0.5 ms, while an integrate and fire model may have one of 0.1 ms. So the firing rate module would only get its StepSimulation method called every 5th time that the other module was called. This is all handed in the StepSimulation method of the Simulator and NervousSystem.

Author: dcofer

Date: 3/1/2011

Reimplemented from AnimatSim::AnimatBase.

Reimplemented in AnimatSim::Charting::MemoryChart, and AnimatSim::Charting::ArrayChart.

Definition at line 796 of file DataChart.cpp.

References m_aryDataColumns, m_aryTimeBuffer, m_iCollectInterval, m_lCurrentCol, m_lCurrentRow, AnimatSim::AnimatBase::m_lpSim, AnimatSim::Simulator::Time(), and AnimatSim::Simulator::TimeSlice().

Referenced by AnimatSim::Charting::MemoryChart::StepSimulation().

Here is the call graph for this function:

Here is the caller graph for this function:

float * AnimatSim::Charting::DataChart::TimeBuffer ( )

virtual

Gets the time buffer.

Author: dcofer

Date: 3/18/2011

Returns: Pointer to the time buffer.

Definition at line 201 of file DataChart.cpp.

References m_aryTimeBuffer.

std::string AnimatSim::Charting::DataChart::Type ( )

virtual

returns the string type name of this object.

Gets the string type description of this object. This is basically just another type of tag that can be applied by the developer of a class to differentiate it. An example of where this is used is in the synaptic types class. I use it to specify the synapse type as gated, modulatory, etc.. They still have different classes, but this gives a string description of that type. It is not mandatory and can be used how the class developer requires.

Author: dcofer

Date: 2/22/2011

Returns: string of assigned class type.

Reimplemented from AnimatSim::AnimatBase.

Reimplemented in AnimatSim::Charting::FileChart, AnimatSim::Charting::MemoryChart, and AnimatSim::Charting::ArrayChart.

Definition at line 110 of file DataChart.cpp.

void AnimatSim::Charting::DataChart::Unlock ( )

virtual

Unlocks this data chart buffer from being written by any other process.

This is for multi-threaded environments. It is called just after data is added to the buffer to remove the lock so that other process can modify the buffer.
