A Threaded neural module base class. More...

#include <ThreadedModule.h>

Inheritance diagram for AnimatSim::Behavior::ThreadedModule:

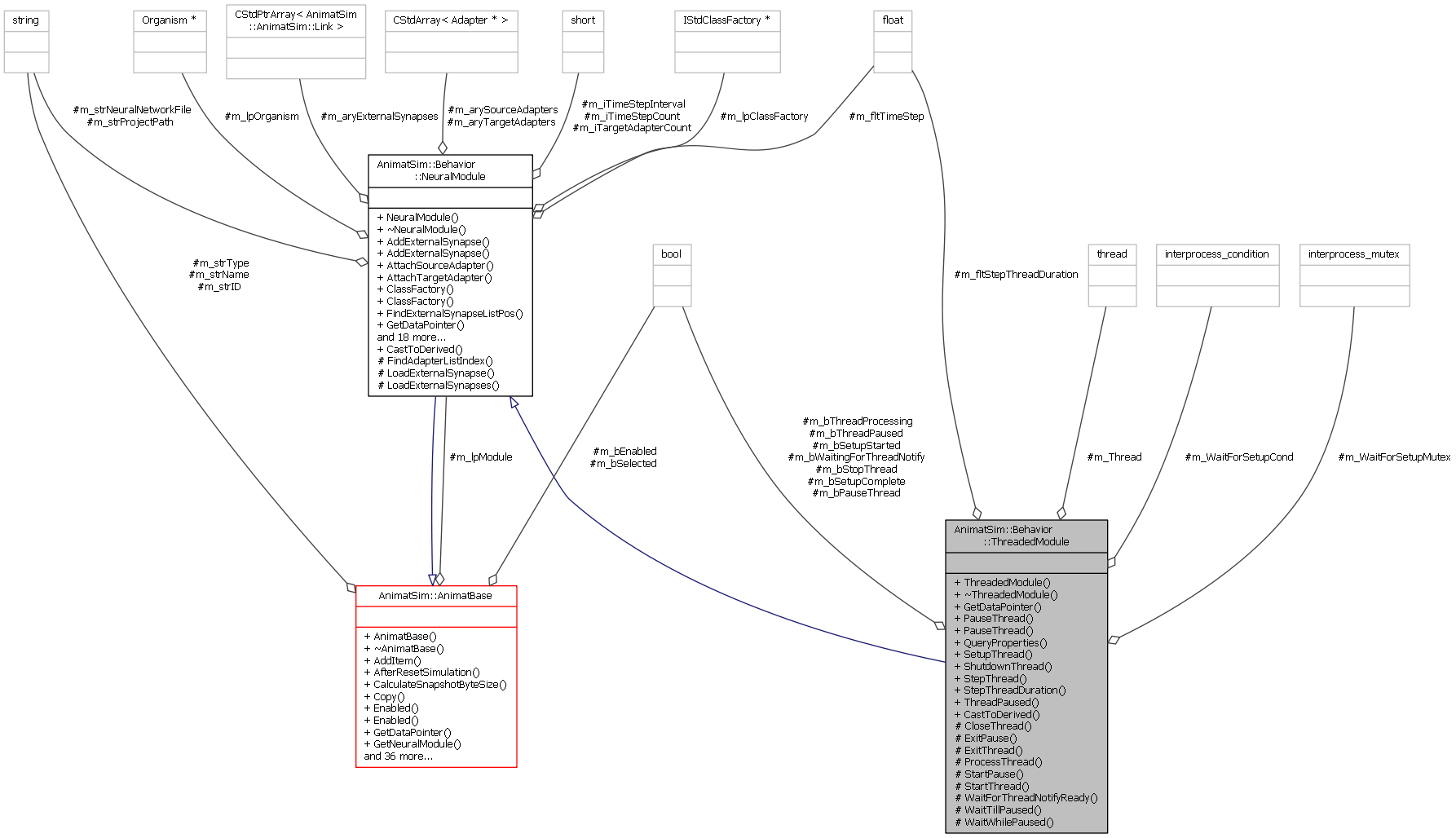

Collaboration diagram for AnimatSim::Behavior::ThreadedModule:

Public Member Functions
	ThreadedModule (void)
	Default constructor. More...

virtual	~ThreadedModule (void)
	Destructor. More...

virtual float *	GetDataPointer (const std::string &strDataType)
	Returns a float pointer to a data item of interest in this object. More...

virtual void	PauseThread (bool bVal)

virtual bool	PauseThread ()

virtual void	QueryProperties (CStdPtrArray< TypeProperty > &aryProperties)
	Queries this object for a list of properties that can be changed using SetData. More...

virtual void	SetupThread ()
	This method is called after all connections to whatever control board have been made. It calls each parts SetupIO method. For example, We connect to a Firmata microcontroller like an Arduino, and then do a setup that could take some time. We should not attempt to setup any of the pins until after the board itself has been setup. After that we need to loop through and setup all the parts. More...

virtual void	ShutdownThread ()
	This method is called just before the IO thread is closed down. It gives the IO objects a chance to do any required cleanup. More...

virtual void	StepThread ()
	This method is called from within the IO thread. It calls StepIO for each part. More...

virtual float	StepThreadDuration ()
	Gets the time duration required to perform one step of the thread for all parts in this control. More...

virtual bool	ThreadPaused ()

Public Member Functions inherited from AnimatSim::Behavior::NeuralModule
	NeuralModule ()
	Default constructor. More...

virtual	~NeuralModule ()
	Destructor. More...

virtual void	AddExternalSynapse (AnimatSim::Link *lpSynapse)

virtual void	AddExternalSynapse (std::string strXml, bool bDoNotInit)
	Adds a synapse using an xml packet. More...

virtual void	AttachSourceAdapter (Adapter *lpAdapter)
	Attaches a source adapter. More...

virtual void	AttachTargetAdapter (Adapter *lpAdapter)
	Attaches a target adapter. More...

virtual IStdClassFactory *	ClassFactory ()
	Gets the class factory. More...

virtual void	ClassFactory (IStdClassFactory *lpFactory)

virtual int	FindExternalSynapseListPos (std::string strID, bool bThrowError=true)
	Searches for a synapse with the specified ID and returns its position in the list. More...

Organism *	GetOrganism ()
	Gets the organism. More...

Simulator *	GetSimulator ()
	Gets the simulator. More...

virtual void	Initialize ()
	Initializes this object. More...

virtual std::string	ModuleName ()=0
	Gets the module name. More...

virtual bool	NeedToStep (bool bIncrement)
	Tells whether this NeuralModule needs to call StepSimulation. More...

virtual void	RemoveExternalSynapse (std::string strID, bool bThrowError=true)
	Removes the synapse by the GUID ID. More...

virtual void	RemoveSourceAdapter (Adapter *lpAdapter)
	Removes a source adapter. More...

virtual void	RemoveTargetAdapter (Adapter *lpAdapter)
	Removes a target adapter. More...

virtual void	ResetSimulation ()
	Resets the simulation back to time 0. More...

virtual void	ResetStepCounter ()

virtual void	SetSystemPointers (Simulator lpSim, Structure lpStructure, NeuralModule lpModule, Node lpNode, bool bVerify)
	Sets the system pointers. More...

virtual void	StepAdapters ()
	Step adapters. More...

virtual void	StepSimulation ()
	Step the simulation for this object. More...

virtual float	TimeStep ()
	Gets the time step for this moudle in time units. More...

virtual void	TimeStep (float fltVal)
	Sets the Time step for this moudle in time units. More...

virtual short	TimeStepInterval ()
	Gets the time step interval. More...

virtual void	TimeStepInterval (short iVal)
	Sets ime step interval. More...

virtual void	VerifySystemPointers ()
	Verify that system pointers have been set correctly. More...

Public Member Functions inherited from AnimatSim::AnimatBase
	AnimatBase ()
	Constructs an AnimatBase object. More...

virtual	~AnimatBase ()
	Destroys the AnimatBase object.. More...

virtual bool	AddItem (const std::string &strItemType, const std::string &strXml, bool bThrowError=true, bool bDoNotInit=false)
	Adds a new object to this parent. More...

virtual void	AfterResetSimulation ()
	Called after a simulation reset for some objects. More...

virtual long	CalculateSnapshotByteSize ()
	Calculates the snapshot byte size. More...

virtual void	Copy (CStdSerialize *lpSource)

virtual void	Enabled (bool bVal)
	Tells whether this item is enabled or not. This is not actually used for all objects, only specific ones. I am putting it in the base class though to prevent numerous duplications. More...

virtual bool	Enabled ()
	Tells whether this item is enabled or not. This is not actually used for all objects, only specific ones. I am putting it in the base class though to prevent numerous duplications. More...

virtual NeuralModule *	GetNeuralModule ()
	Gets the neural module. More...

virtual Node *	GetNode ()
	Gets the node. More...

virtual Structure *	GetStructure ()
	Gets the structure for this node. More...

virtual bool	HasProperty (const std::string &strName)
	Queries this object if it has a property with the given name. More...

virtual std::string	ID ()
	Gets the unique GUID ID of this object. More...

virtual void	ID (std::string strValue)
	Sets the unique GUID ID of the object. More...

virtual void	Kill (bool bState=true)
	Kills. More...

virtual void	Load (StdUtils::CStdXml &oXml)
	Loads the item using an XML data packet. More...

virtual void	LoadKeyFrameSnapshot (byte *aryBytes, long &lIndex)
	Loads a key frame snapshot. More...

virtual std::string	Name ()
	Gets the name of this object. More...

virtual void	Name (std::string strValue)
	Sets the name of the object. Blank is acceptable. More...

virtual AnimatPropertyType	PropertyType (const std::string &strName)

virtual void	ReInitialize ()
	Re-initialize this object. More...

virtual bool	RemoveItem (const std::string &strItemType, const std::string &strID, bool bThrowError=true)
	Removes a child item from this parent. More...

virtual void	Reset ()
	Resets this object. More...

virtual void	RigidBodyAdded (std::string strID)

virtual void	RigidBodyRemoved (std::string strID)

virtual void	SaveKeyFrameSnapshot (byte *aryBytes, long &lIndex)
	Saves a key frame snapshot. More...

virtual bool	Selected ()
	Tells if this items is selected or not. More...

virtual void	Selected (bool bValue, bool bSelectMultiple)
	Selects this object. More...

virtual bool	SetData (const std::string &strDataType, const std::string &strValue, bool bThrowError=true)
	Set a variable based on a string data type name. More...

virtual bool	SetData (const std::string &strDataType, const float fltValue, bool bThrowError=true)
	Set a variable based on a string data type name. More...

virtual bool	SetData (const std::string &strDataType, const long lValue, bool bThrowError=true)
	Set a variable based on a string data type name. More...

virtual void	SetSystemPointers (Simulator lpSim, Structure lpStructure, NeuralModule lpModule, Node lpNode, bool bVerify)
	Sets the system pointers. More...

virtual void	SimPausing ()
	Called just before the simulation pauses. More...

virtual void	SimStarting ()
	Called just before the simulation starts. More...

virtual void	SimStopping ()
	Called just before the simulation stops. More...

virtual void	TimeStepModified ()
	Notification method that the time step modified has been modified. Objects should recalculate any slice times as needed. More...

virtual std::string	Type ()
	returns the string type name of this object. More...

virtual void	Type (std::string strValue)
	Sets the class type for this object. More...

virtual void	VisualSelectionModeChanged (int iNewMode)
	Visual selection mode changed. More...

Static Public Member Functions
static ThreadedModule *	CastToDerived (AnimatBase *lpBase)

Static Public Member Functions inherited from AnimatSim::Behavior::NeuralModule
static NeuralModule *	CastToDerived (AnimatBase *lpBase)

Protected Member Functions
virtual void	CloseThread ()

virtual void	ExitPause ()
	This method is waits until the m_bIOPaused flag is set back to false. More...

virtual void	ExitThread ()

virtual void	ProcessThread ()

virtual void	StartPause ()
	This method is waits until the m_bIOPaused flag is set to true. More...

virtual void	StartThread ()

virtual void	WaitForThreadNotifyReady ()

virtual void	WaitTillPaused ()
	This method is waits until the m_bIOPaused flag is set to true. More...

virtual void	WaitWhilePaused ()
	This method is waits until the m_bPauseIO flag is set back to false. More...

Protected Member Functions inherited from AnimatSim::Behavior::NeuralModule
virtual int	FindAdapterListIndex (CStdArray< Adapter * > aryAdapters, std::string strID, bool bThrowError=true)

virtual AnimatSim::Link *	LoadExternalSynapse (CStdXml &oXml)
	Loads an external synapse. More...

virtual void	LoadExternalSynapses (CStdXml &oXml)
	Loads external synapses. More...

Protected Attributes
bool	m_bPauseThread
	Set to true to pause the thread processing. Set back to false to resume it.

bool	m_bSetupComplete
	Set to true once the thread is setup correctly.

bool	m_bSetupStarted
	Set to true once the thread begins its setup.

bool	m_bStopThread
	Flags the thread processing loop to exit.

bool	m_bThreadPaused
	Is set to true once the thread loop is paused.

bool	m_bThreadProcessing
	True while the io thread processing loop is going on.

bool	m_bWaitingForThreadNotify
	Used to signal to the IO thread that we are waiting for their return signal.

float	m_fltStepThreadDuration
	The time it takes to perform a step of the IO for all parts in this control.

boost::thread	m_Thread
	Thread responsible for doing IO processing.

boost::interprocess::interprocess_condition	m_WaitForSetupCond
	Condition used to determine when the IO is setup.

boost::interprocess::interprocess_mutex	m_WaitForSetupMutex
	Mutex responsible for waiting until the IO is finished setting up.

Protected Attributes inherited from AnimatSim::Behavior::NeuralModule
CStdPtrArray< AnimatSim::Link >	m_aryExternalSynapses
	An array of external synapses connected to nodes within this module.

CStdArray< Adapter * >	m_arySourceAdapters
	An array of source adapters for this module.

CStdArray< Adapter * >	m_aryTargetAdapters
	An array of target adapters for this module.

float	m_fltTimeStep
	The DT time step for this neural module in seconds.

short	m_iTargetAdapterCount
	Number of target adapters.

short	m_iTimeStepCount
	Count variable that keeps track of how many slices have occured since the last StepSimulation.

short	m_iTimeStepInterval

IStdClassFactory *	m_lpClassFactory
	The pointer to the class factory for this module.

Organism *	m_lpOrganism
	The pointer to the organism.

std::string	m_strNeuralNetworkFile
	The string neural network file name.

std::string	m_strProjectPath
	Full pathname of the string project file for this module.

Protected Attributes inherited from AnimatSim::AnimatBase
bool	m_bEnabled
	Tells if this item is enabled or not. If it is not enabled then it is not run.

bool	m_bSelected
	Tells whether the object is selected or not.

AnimatSim::Behavior::NeuralModule *	m_lpModule
	The pointer to this items parentNeuralModule. If this is not relevant for this object then this is NULL.

Node *	m_lpNode
	The pointer to this items parent Node. If this is not relevant for this object then this is NULL.

Simulator *	m_lpSim
	The pointer to a Simulation.

AnimatSim::Environment::Structure *	m_lpStructure
	The pointer to this items parent Structure. If this is not relevant for this object then this is NULL.

std::string	m_strID
	The unique Id for this object.

std::string	m_strName
	The name for this object.

std::string	m_strType
	The type for this object. Examples are Box, Plane, Neuron, etc..

Detailed Description

A Threaded neural module base class.

To do.

Author: dcofer

Date: 10/1/2014

Definition at line 21 of file ThreadedModule.h.

Constructor & Destructor Documentation

AnimatSim::Behavior::ThreadedModule::ThreadedModule ( void )

Default constructor.

Author: dcofer

Date: 9/8/2014

Definition at line 54 of file ThreadedModule.cpp.

References m_bPauseThread, m_bSetupComplete, m_bSetupStarted, m_bStopThread, m_bThreadPaused, m_bThreadProcessing, m_bWaitingForThreadNotify, and m_fltStepThreadDuration.

AnimatSim::Behavior::ThreadedModule::~ThreadedModule ( void )

virtual

Destructor.

Author: dcofer

Date: 9/8/2014

Definition at line 73 of file ThreadedModule.cpp.

References ShutdownThread(), and StdUtils::Std_TraceMsg().

Here is the call graph for this function:

Member Function Documentation

void AnimatSim::Behavior::ThreadedModule::ExitPause ( )

protectedvirtual

This method is waits until the m_bIOPaused flag is set back to false.

Author: dcofer

Date: 5/12/2014

Definition at line 321 of file ThreadedModule.cpp.

References AnimatSim::Simulator::InSimulation(), AnimatSim::AnimatBase::m_bEnabled, m_bPauseThread, m_bThreadPaused, AnimatSim::AnimatBase::m_lpSim, and AnimatSim::Simulator::Paused().

Here is the call graph for this function:

float * AnimatSim::Behavior::ThreadedModule::GetDataPointer ( const std::string & strDataType )

virtual

Returns a float pointer to a data item of interest in this object.

This is a generic method used to get a pointer to data variable of interest. It is used by a variety of systems in the simulation. The most prominent are the data charting and stimulus classes. Within this method we associate a variable with a string name. By passing in the name of the data type we are interested in we can recieve back a float pointer to that data type. We can use that to read or set the data item in other classes. For example, the data charting system gets the pointer and then each time it needs to log a data point it reads the value into an array.

Author: dcofer

Date: 2/22/2011

Parameters

strDataType name of the data item for which we are looking.

Returns: float pointer of the data item. If not found then it throws an exception.

Exceptions

If	DataType is not found.

Reimplemented from AnimatSim::Behavior::NeuralModule.

Definition at line 105 of file ThreadedModule.cpp.

References AnimatSim::Behavior::NeuralModule::GetDataPointer(), m_fltStepThreadDuration, and StdUtils::Std_CheckString().

Here is the call graph for this function:

void AnimatSim::Behavior::ThreadedModule::QueryProperties ( CStdPtrArray< TypeProperty > & aryProperties )

virtual

Queries this object for a list of properties that can be changed using SetData.

The method provides a list of the properties that can be set using the SetData method. It gives the property name and the type of data that should be passed to it. Valid date types are Boolean, Float, Integer, and Xml.

Author: dcofer

Date: 2/22/2011

Parameters

aryNames	Array list of the property names.
strTypes	Array list of the type that is associated with the cooresponding name in the list.

Returns: Nothing.

Reimplemented from AnimatSim::AnimatBase.

Definition at line 117 of file ThreadedModule.cpp.

References AnimatSim::AnimatBase::QueryProperties().

Here is the call graph for this function:

void AnimatSim::Behavior::ThreadedModule::SetupThread ( )

virtual

This method is called after all connections to whatever control board have been made. It calls each parts SetupIO method. For example, We connect to a Firmata microcontroller like an Arduino, and then do a setup that could take some time. We should not attempt to setup any of the pins until after the board itself has been setup. After that we need to loop through and setup all the parts.
