Physics neural module. More...

#include <PhysicsNeuralModule.h>

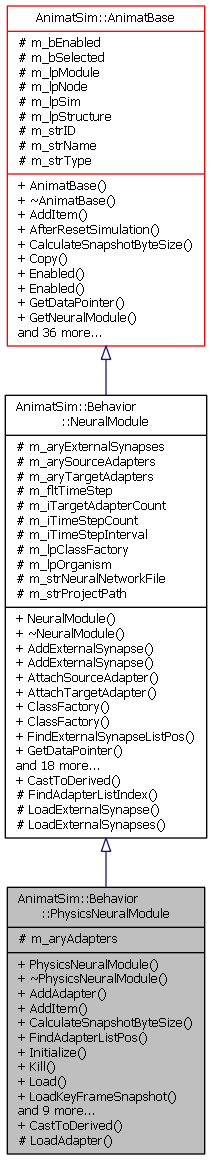

Inheritance diagram for AnimatSim::Behavior::PhysicsNeuralModule:

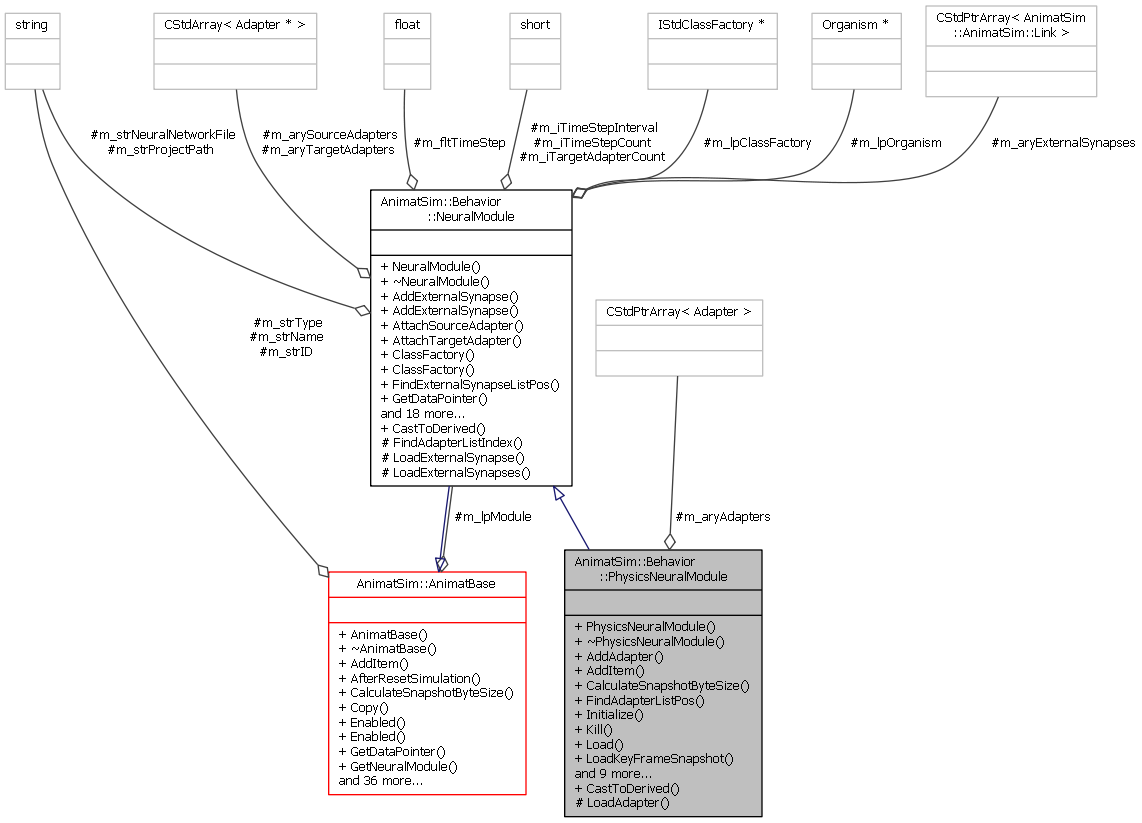

Collaboration diagram for AnimatSim::Behavior::PhysicsNeuralModule:

Public Member Functions
	PhysicsNeuralModule ()
	Default constructor. More...

virtual	~PhysicsNeuralModule ()
	Destructor. More...

virtual void	AddAdapter (std::string strXml, bool bDoNotInit)

virtual bool	AddItem (const std::string &strItemType, const std::string &strXml, bool bThrowError=true, bool bDoNotInit=false)
	Adds a new object to this parent. More...

virtual long	CalculateSnapshotByteSize ()
	Calculates the snapshot byte size. More...

virtual int	FindAdapterListPos (std::string strID, bool bThrowError=true)

virtual void	Initialize ()
	Initializes this object. More...

virtual void	Kill (bool bState=true)
	Kills. More...

virtual void	Load (CStdXml &oXml)

virtual void	LoadKeyFrameSnapshot (byte *aryBytes, long &lIndex)
	Loads a key frame snapshot. More...

virtual std::string	ModuleName ()
	Gets the module name. More...

virtual void	QueryProperties (CStdPtrArray< TypeProperty > &aryProperties)
	Queries this object for a list of properties that can be changed using SetData. More...

virtual void	RemoveAdapter (std::string strID)

virtual bool	RemoveItem (const std::string &strItemType, const std::string &strID, bool bThrowError=true)
	Removes a child item from this parent. More...

virtual void	ResetSimulation ()
	Resets the simulation back to time 0. More...

virtual void	SaveKeyFrameSnapshot (byte *aryBytes, long &lIndex)
	Saves a key frame snapshot. More...

virtual bool	SetData (const std::string &strDataType, const std::string &strValue, bool bThrowError=true)
	Set a variable based on a string data type name. More...

virtual float	TimeStep ()
	Gets the time step for this moudle in time units. More...

virtual void	TimeStep (float fltVal)
	Sets the Time step for this moudle in time units. More...

Public Member Functions inherited from AnimatSim::Behavior::NeuralModule
	NeuralModule ()
	Default constructor. More...

virtual	~NeuralModule ()
	Destructor. More...

virtual void	AddExternalSynapse (AnimatSim::Link *lpSynapse)

virtual void	AddExternalSynapse (std::string strXml, bool bDoNotInit)
	Adds a synapse using an xml packet. More...

virtual void	AttachSourceAdapter (Adapter *lpAdapter)
	Attaches a source adapter. More...

virtual void	AttachTargetAdapter (Adapter *lpAdapter)
	Attaches a target adapter. More...

virtual IStdClassFactory *	ClassFactory ()
	Gets the class factory. More...

virtual void	ClassFactory (IStdClassFactory *lpFactory)

virtual int	FindExternalSynapseListPos (std::string strID, bool bThrowError=true)
	Searches for a synapse with the specified ID and returns its position in the list. More...

virtual float *	GetDataPointer (const std::string &strDataType)
	Returns a float pointer to a data item of interest in this object. More...

Organism *	GetOrganism ()
	Gets the organism. More...

Simulator *	GetSimulator ()
	Gets the simulator. More...

virtual bool	NeedToStep (bool bIncrement)
	Tells whether this NeuralModule needs to call StepSimulation. More...

virtual void	RemoveExternalSynapse (std::string strID, bool bThrowError=true)
	Removes the synapse by the GUID ID. More...

virtual void	RemoveSourceAdapter (Adapter *lpAdapter)
	Removes a source adapter. More...

virtual void	RemoveTargetAdapter (Adapter *lpAdapter)
	Removes a target adapter. More...

virtual void	ResetStepCounter ()

virtual void	SetSystemPointers (Simulator lpSim, Structure lpStructure, NeuralModule lpModule, Node lpNode, bool bVerify)
	Sets the system pointers. More...

virtual void	StepAdapters ()
	Step adapters. More...

virtual void	StepSimulation ()
	Step the simulation for this object. More...

virtual short	TimeStepInterval ()
	Gets the time step interval. More...

virtual void	TimeStepInterval (short iVal)
	Sets ime step interval. More...

virtual void	VerifySystemPointers ()
	Verify that system pointers have been set correctly. More...

Public Member Functions inherited from AnimatSim::AnimatBase
	AnimatBase ()
	Constructs an AnimatBase object. More...

virtual	~AnimatBase ()
	Destroys the AnimatBase object.. More...

virtual void	AfterResetSimulation ()
	Called after a simulation reset for some objects. More...

virtual void	Copy (CStdSerialize *lpSource)

virtual void	Enabled (bool bVal)
	Tells whether this item is enabled or not. This is not actually used for all objects, only specific ones. I am putting it in the base class though to prevent numerous duplications. More...

virtual bool	Enabled ()
	Tells whether this item is enabled or not. This is not actually used for all objects, only specific ones. I am putting it in the base class though to prevent numerous duplications. More...

virtual NeuralModule *	GetNeuralModule ()
	Gets the neural module. More...

virtual Node *	GetNode ()
	Gets the node. More...

virtual Structure *	GetStructure ()
	Gets the structure for this node. More...

virtual bool	HasProperty (const std::string &strName)
	Queries this object if it has a property with the given name. More...

virtual std::string	ID ()
	Gets the unique GUID ID of this object. More...

virtual void	ID (std::string strValue)
	Sets the unique GUID ID of the object. More...

virtual void	Load (StdUtils::CStdXml &oXml)
	Loads the item using an XML data packet. More...

virtual std::string	Name ()
	Gets the name of this object. More...

virtual void	Name (std::string strValue)
	Sets the name of the object. Blank is acceptable. More...

virtual AnimatPropertyType	PropertyType (const std::string &strName)

virtual void	ReInitialize ()
	Re-initialize this object. More...

virtual void	Reset ()
	Resets this object. More...

virtual void	RigidBodyAdded (std::string strID)

virtual void	RigidBodyRemoved (std::string strID)

virtual bool	Selected ()
	Tells if this items is selected or not. More...

virtual void	Selected (bool bValue, bool bSelectMultiple)
	Selects this object. More...

virtual bool	SetData (const std::string &strDataType, const float fltValue, bool bThrowError=true)
	Set a variable based on a string data type name. More...

virtual bool	SetData (const std::string &strDataType, const long lValue, bool bThrowError=true)
	Set a variable based on a string data type name. More...

virtual void	SetSystemPointers (Simulator lpSim, Structure lpStructure, NeuralModule lpModule, Node lpNode, bool bVerify)
	Sets the system pointers. More...

virtual void	SimPausing ()
	Called just before the simulation pauses. More...

virtual void	SimStarting ()
	Called just before the simulation starts. More...

virtual void	SimStopping ()
	Called just before the simulation stops. More...

virtual void	TimeStepModified ()
	Notification method that the time step modified has been modified. Objects should recalculate any slice times as needed. More...

virtual std::string	Type ()
	returns the string type name of this object. More...

virtual void	Type (std::string strValue)
	Sets the class type for this object. More...

virtual void	VisualSelectionModeChanged (int iNewMode)
	Visual selection mode changed. More...

Static Public Member Functions
static PhysicsNeuralModule *	CastToDerived (AnimatBase *lpBase)

Static Public Member Functions inherited from AnimatSim::Behavior::NeuralModule
static NeuralModule *	CastToDerived (AnimatBase *lpBase)

Protected Member Functions
Adapter *	LoadAdapter (CStdXml &oXml)

Protected Member Functions inherited from AnimatSim::Behavior::NeuralModule
virtual int	FindAdapterListIndex (CStdArray< Adapter * > aryAdapters, std::string strID, bool bThrowError=true)

virtual AnimatSim::Link *	LoadExternalSynapse (CStdXml &oXml)
	Loads an external synapse. More...

virtual void	LoadExternalSynapses (CStdXml &oXml)
	Loads external synapses. More...

Protected Attributes
CStdPtrArray< Adapter >	m_aryAdapters
	The array of adapters in this module.

Protected Attributes inherited from AnimatSim::Behavior::NeuralModule
CStdPtrArray< AnimatSim::Link >	m_aryExternalSynapses
	An array of external synapses connected to nodes within this module.

CStdArray< Adapter * >	m_arySourceAdapters
	An array of source adapters for this module.

CStdArray< Adapter * >	m_aryTargetAdapters
	An array of target adapters for this module.

float	m_fltTimeStep
	The DT time step for this neural module in seconds.

short	m_iTargetAdapterCount
	Number of target adapters.

short	m_iTimeStepCount
	Count variable that keeps track of how many slices have occured since the last StepSimulation.

short	m_iTimeStepInterval

IStdClassFactory *	m_lpClassFactory
	The pointer to the class factory for this module.

Organism *	m_lpOrganism
	The pointer to the organism.

std::string	m_strNeuralNetworkFile
	The string neural network file name.

std::string	m_strProjectPath
	Full pathname of the string project file for this module.

Protected Attributes inherited from AnimatSim::AnimatBase
bool	m_bEnabled
	Tells if this item is enabled or not. If it is not enabled then it is not run.

bool	m_bSelected
	Tells whether the object is selected or not.

AnimatSim::Behavior::NeuralModule *	m_lpModule
	The pointer to this items parentNeuralModule. If this is not relevant for this object then this is NULL.

Node *	m_lpNode
	The pointer to this items parent Node. If this is not relevant for this object then this is NULL.

Simulator *	m_lpSim
	The pointer to a Simulation.

AnimatSim::Environment::Structure *	m_lpStructure
	The pointer to this items parent Structure. If this is not relevant for this object then this is NULL.

std::string	m_strID
	The unique Id for this object.

std::string	m_strName
	The name for this object.

std::string	m_strType
	The type for this object. Examples are Box, Plane, Neuron, etc..

Detailed Description

Physics neural module.

This is the basic neural module that holds the adapters used during the simulation.

Author: dcofer

Date: 3/29/2011

Definition at line 22 of file PhysicsNeuralModule.h.

Constructor & Destructor Documentation

AnimatSim::Behavior::PhysicsNeuralModule::PhysicsNeuralModule ( )

Default constructor.

Author: dcofer

Date: 3/29/2011

Definition at line 53 of file PhysicsNeuralModule.cpp.

AnimatSim::Behavior::PhysicsNeuralModule::~PhysicsNeuralModule ( )

virtual

Destructor.

Author: dcofer

Date: 3/29/2011

Definition at line 63 of file PhysicsNeuralModule.cpp.

References m_aryAdapters, and StdUtils::Std_TraceMsg().

Here is the call graph for this function:

Member Function Documentation

bool AnimatSim::Behavior::PhysicsNeuralModule::AddItem	(	const std::string &	strItemType,
		const std::string &	strXml,
		bool	bThrowError = `true`,
		bool	bDoNotInit = `false`
	)

virtual

Adds a new object to this parent.

Generic method to add a new child item to this parent by specifying a string item type descriptor and an xml packet that can be used to load in the new object. The GUI uses this method to create new items that were added with the user interface. The item type lets the method determine what type of item is being created, like synapse, neuron, body part, etc.. It then gets the modulename, classname, and type from the xml and calls CreateObject to create the appropriate type of object. Then it passes in the xml packet to the new objects load method and does any needed initialization and adds it to the parent.

Author: dcofer

Date: 2/22/2011

Parameters

strItemType	String descriptor of the type of item that is being created.
strXml	XML packet that is used to create and load the new item.
bThrowError	If true then throw an error if there is a problem, otherwise return false.

Returns: true if it succeeds, false if it fails.

Reimplemented from AnimatSim::AnimatBase.

Definition at line 181 of file PhysicsNeuralModule.cpp.

References StdUtils::Std_CheckString().

Here is the call graph for this function:

long AnimatSim::Behavior::PhysicsNeuralModule::CalculateSnapshotByteSize ( )

virtual

Calculates the snapshot byte size.

Sometimes the user may want to capture a snapshot of the simulation at a given point in time, and then be able to go back to that specific point. To do this we grab a snapshot of all the data in the system, including the neural variables. We essentially serialize the data into a binary format for later re-use. This method calculates the number of bytes that will be required to store the entire object.

Author: dcofer

Date: 2/24/2011

Returns: The calculated snapshot byte size.

Reimplemented from AnimatSim::AnimatBase.

Definition at line 228 of file PhysicsNeuralModule.cpp.

References m_aryAdapters.

void AnimatSim::Behavior::PhysicsNeuralModule::Initialize ( )

virtual

Initializes this object.

After an object is loaded in it must be initialized before it can be used. This allows the object to retrieve any pointers or setup memory that it will need during execution. Each object is responsible for initializing any of its child objects, so you simply need to call this method on the containing class to init all child objects. It also calls VerifySystemPointers to make sure that the system pointers have been setup correctly.

Author: dcofer

Date: 3/1/2011

Reimplemented from AnimatSim::Behavior::NeuralModule.

Definition at line 104 of file PhysicsNeuralModule.cpp.

References AnimatSim::Behavior::NeuralModule::Initialize(), m_aryAdapters, and AnimatSim::AnimatBase::m_lpStructure.

Here is the call graph for this function:

void AnimatSim::Behavior::PhysicsNeuralModule::Kill ( bool bState = true )

virtual

Kills.

Called to kill the organism, nervous system, neurons, and body parts. All neural items are disabled to prevent any further neural activity, and all joints are disabled to allow free rotation, and all biomechancical components are disabled so they can no longer produce forces. This method is only relevant to these types of objects, but I am putting the definition in the base class because a variety of different types of classes all need this method and I want it consolidated. Those classes that do not need it do not have to call it or do anything when it is called.

Author: dcofer

Date: 3/3/2011

Parameters

bState true to state.

Reimplemented from AnimatSim::AnimatBase.

Definition at line 88 of file PhysicsNeuralModule.cpp.

References m_aryAdapters.

void AnimatSim::Behavior::PhysicsNeuralModule::LoadKeyFrameSnapshot	(	byte *	aryBytes,
		long &	lIndex
	)

virtual

Loads a key frame snapshot.

Sometimes the user may want to capture a snapshot of the simulation at a given point in time, and then be able to go back to that specific point. To do this we grab a snapshot of all the data in the system, including the neural variables. We essentially serialize the data into a binary format for later re-use. This method goes through each module and loads its data from the byte array.

Author: dcofer

Date: 2/24/2011

Parameters

[in,out]	aryBytes	The array of bytes where the data is being stored.
[in,out]	lIndex	Current zero-based index of the read position in the array.

Reimplemented from AnimatSim::AnimatBase.

Definition at line 247 of file PhysicsNeuralModule.cpp.

References m_aryAdapters.

virtual std::string AnimatSim::Behavior::PhysicsNeuralModule::ModuleName ( )

inlinevirtual

Gets the module name.

Author: dcofer

Date: 3/29/2011

Returns: module name.

Implements AnimatSim::Behavior::NeuralModule.

Definition at line 47 of file PhysicsNeuralModule.h.

void AnimatSim::Behavior::PhysicsNeuralModule::QueryProperties ( CStdPtrArray< TypeProperty > & aryProperties )

virtual

Queries this object for a list of properties that can be changed using SetData.

The method provides a list of the properties that can be set using the SetData method. It gives the property name and the type of data that should be passed to it. Valid date types are Boolean, Float, Integer, and Xml.

Author: dcofer

Date: 2/22/2011

Parameters

aryNames	Array list of the property names.
strTypes	Array list of the type that is associated with the cooresponding name in the list.

Returns: Nothing.

Reimplemented from AnimatSim::AnimatBase.

Definition at line 140 of file PhysicsNeuralModule.cpp.

References AnimatSim::AnimatBase::QueryProperties().

Here is the call graph for this function:

bool AnimatSim::Behavior::PhysicsNeuralModule::RemoveItem	(	const std::string &	strItemType,
		const std::string &	strID,
		bool	bThrowError = `true`
	)

virtual

Removes a child item from this parent.

This is a generic method that is used to delete a child object from this parent. The GUI uses this method to remove objects from the simulation that have been deleted in the UI. The item type lets the method determine what type of item is being deleted, like synapse, neuron, body part, etc.. The ID is then used to delete that specific item.

Author: dcofer

Date: 2/22/2011

Parameters

strItemType	String descriptor of the type of item that is being created.
strID	Unique ID of the item that will be removed.
bThrowError	If true then throw an error if there is a problem, otherwise return false.

Returns: true if it succeeds, false if it fails.

Reimplemented from AnimatSim::AnimatBase.

Definition at line 207 of file PhysicsNeuralModule.cpp.

References StdUtils::Std_CheckString().

Here is the call graph for this function:

void AnimatSim::Behavior::PhysicsNeuralModule::ResetSimulation ( )

virtual

Resets the simulation back to time 0.

This method calls the ResetSimulation method on all subitems in order to reset the simulation back to the beginning.

Author: dcofer

Date: 3/1/2011

Reimplemented from AnimatSim::Behavior::NeuralModule.

Definition at line 96 of file PhysicsNeuralModule.cpp.

References m_aryAdapters.

void AnimatSim::Behavior::PhysicsNeuralModule::SaveKeyFrameSnapshot	(	byte *	aryBytes,
		long &	lIndex
	)

virtual

Saves a key frame snapshot.

Sometimes the user may want to capture a snapshot of the simulation at a given point in time, and then be able to go back to that specific point. To do this we grab a snapshot of all the data in the system, including the neural variables. We essentially serialize the data into a binary format for later re-use. This method goes through each module and saves its data into the byte array.

Author: dcofer

Date: 2/24/2011

Parameters

[in,out]	aryBytes	The array of bytes where the data is being stored.
[in,out]	lIndex	Current zero-based index of the write position in the array.

Reimplemented from AnimatSim::AnimatBase.

Definition at line 239 of file PhysicsNeuralModule.cpp.

References m_aryAdapters.

bool AnimatSim::Behavior::PhysicsNeuralModule::SetData	(	const std::string &	strDataType,
		const std::string &	strValue,
		bool	bThrowError = `true`
	)

virtual

Set a variable based on a string data type name.

This is a generic method that can be used to set any variable in an AnimatBase object by specifying the name of the variable and a string representation of that data. The GUI uses this method to set data into variables in the simulation when the user changes them in the UI. The value string can be as simple as a float or int, or as complex as an xml packet. It is the developers responsibilty to know what type of data is needed and to process it accordingly.

Author: dcofer

Date: 2/22/2011

Parameters

strDataType	string name of the data type to set.
strValue	The string value of the data. It is up to the developer to determine what this should be. For example, in most cases it is simply a float and you just have to convert it to a float and make the appropriate mutator method call. However, it can be any type of string, including an entire xml packet. It is the developers responsibility to know how to set and process the data as required.
bThrowError	true to throw error if there is a problem. If false then it will not return an error, just return false.
