Spiking chemical synapse type. More...

#include <SpikingChemicalSynapse.h>

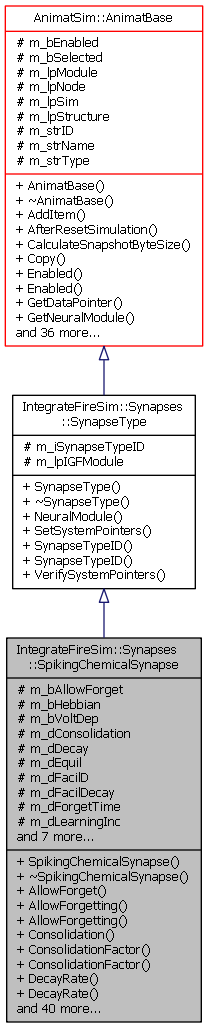

Inheritance diagram for IntegrateFireSim::Synapses::SpikingChemicalSynapse:

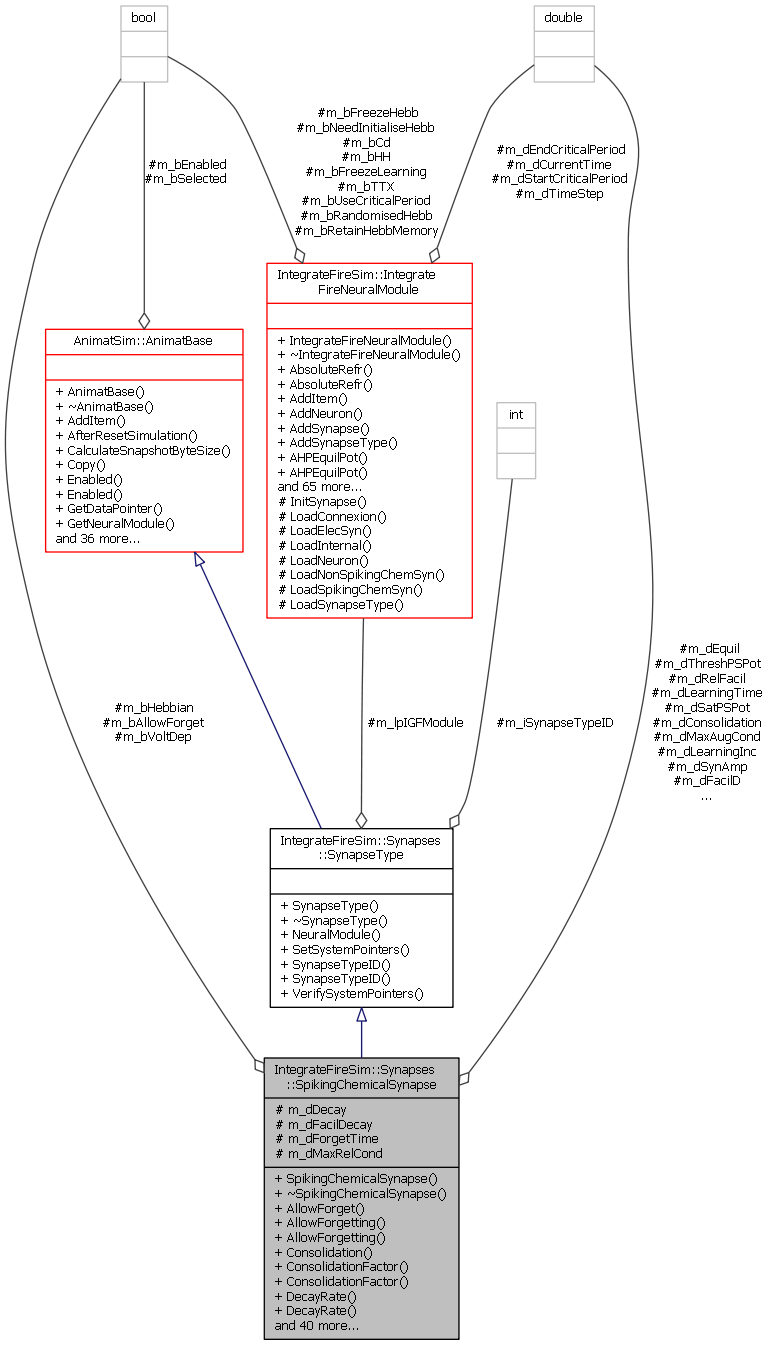

Collaboration diagram for IntegrateFireSim::Synapses::SpikingChemicalSynapse:

Public Member Functions
	SpikingChemicalSynapse ()
	Default constructor. More...

virtual	~SpikingChemicalSynapse ()
	Destructor. More...

bool	AllowForget ()
	Gets whether forgetting is allowed. More...

void	AllowForgetting (bool bVal)
	Sets whether forgetting is allowed. More...

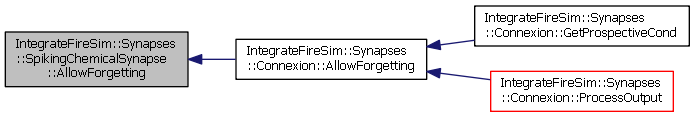

bool	AllowForgetting ()
	Gets whether forgetting is allowed. More...

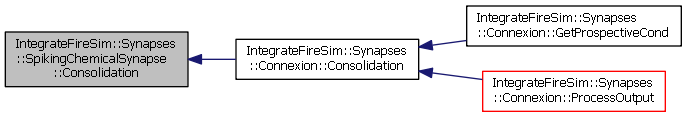

double	Consolidation ()
	Gets the consolidation factor. More...

void	ConsolidationFactor (double dVal)
	Sets the consolidation factor. More...

double	ConsolidationFactor ()
	Gets the consolidation factor. More...

void	DecayRate (double dVal)
	Sets the decay rate. More...

double	DecayRate ()
	Gets the decay rate. More...

void	EquilibriumPotential (double dVal)
	Sets the equilibrium potential. More...

double	EquilibriumPotential ()
	Gets the equilibrium potential. More...

double	FacilD ()
	Gets the facilitation decrement value. More...

double	FacilDecay ()
	Gets the facilitation decay. More...

void	FacilitationDecay (double dVal)
	Sets the facilitation decay. More...

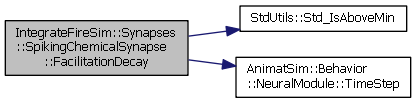

double	FacilitationDecay ()
	Gets the facilitation decay. More...

void	ForgettingTimeWindow (double dVal)
	Sets the forgetting time window. More...

double	ForgettingTimeWindow ()
	Gets the forgetting time window. More...

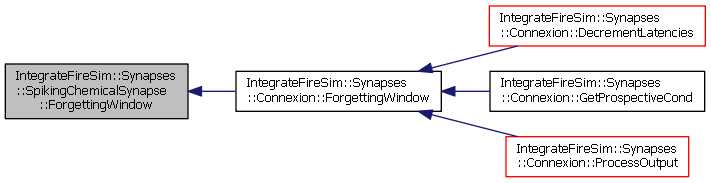

double	ForgettingWindow ()
	Gets the forgetting time window. More...

void	Hebbian (bool bVal)
	Sets whether this synapse uses Hebbian learning. More...

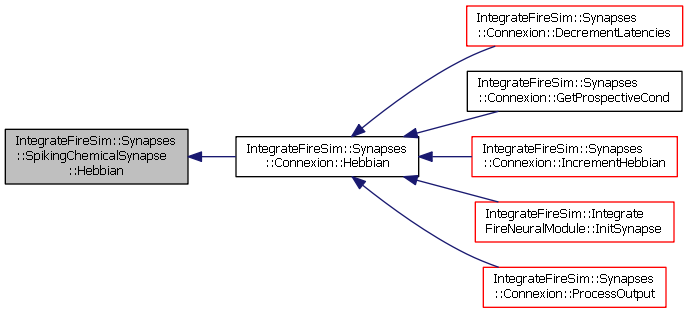

bool	Hebbian ()
	Gets whether this synapse uses Hebbian learning. More...

double	HebbIncrement ()
	Gets the hebbian increment. More...

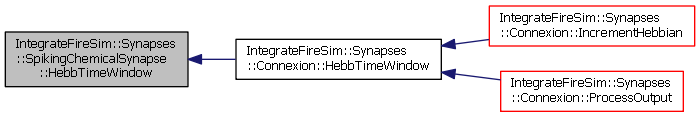

double	HebbTimeWindow ()
	Gets the learning time window. More...

void	LearningIncrement (double dVal)
	Sets the learning increment. More...

double	LearningIncrement ()
	Gets the learning increment. More...

void	LearningTimeWindow (double dVal)
	Sets the learning time window. More...

double	LearningTimeWindow ()
	Gets the learning time window. More...

virtual void	Load (CStdXml &oXml)

void	MaxAugmentedConductance (double dVal)
	Sets the maximum augmented conductance. More...

double	MaxAugmentedConductance ()
	Gets the maximum augmented conductance. More...

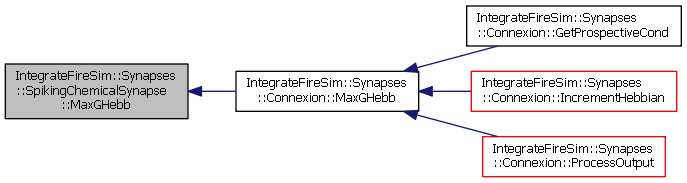

double	MaxGHebb ()
	Gets the maximum augmented conductance. More...

double	MaxGVoltDepRel ()
	Gets the maximum relative conductance. More...

void	MaxRelativeConductance (double dVal)
	Sets the maximum relative conductance. More...

double	MaxRelativeConductance ()
	Gets the maximum relative conductance. More...

virtual void	QueryProperties (CStdPtrArray< TypeProperty > &aryProperties)

void	RelativeFacilitation (double dVal)
	Sets the relative facilitation. More...

double	RelativeFacilitation ()
	Gets the relative facilitation. More...

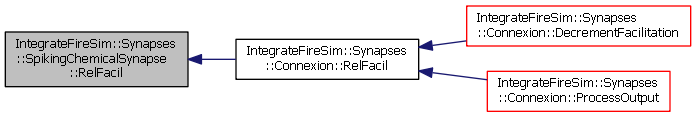

double	RelFacil ()
	Gets the relative facilitation. More...

double	SatPSPot ()
	Gets the saturation potential. More...

void	SaturatePotential (double dVal)
	Sets the saturation potential. More...

double	SaturatePotential ()
	Gets the saturation potential. More...

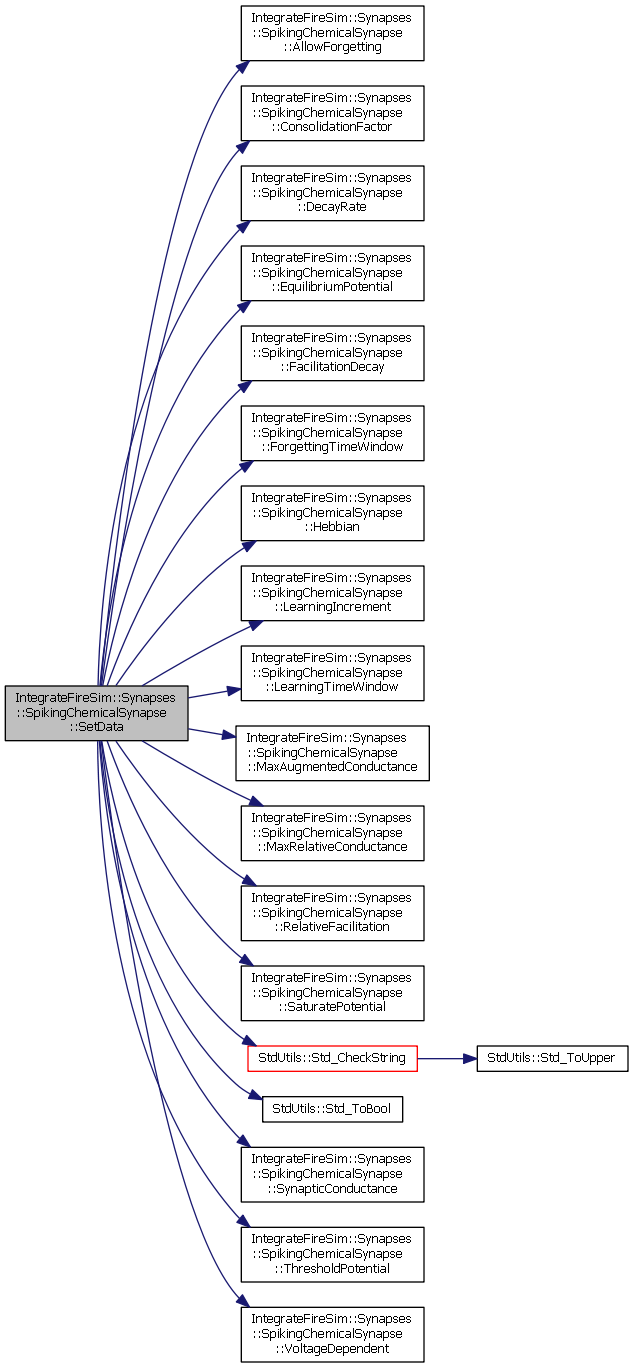

virtual bool	SetData (const std::string &strDataType, const std::string &strValue, bool bThrowError=true)
	Set a variable based on a string data type name. More...

void	SynapticConductance (double dVal)
	Sets the synaptic conductance. More...

double	SynapticConductance ()
	Gets the synaptic conductance. More...

void	ThresholdPotential (double dVal)
	Sets the threshold potential. More...

double	ThresholdPotential ()
	Gets the threshold potential. More...

double	ThreshPSPot ()
	Gets the threshold potential. More...

void	VoltageDependent (bool bVal)
	Sets whether this synapse is voltage dependent. More...

bool	VoltageDependent ()
	Gets whether this synapse is voltage dependent. More...

bool	VoltDep ()
	Gets whether this synapse is voltage dependent. More...

Public Member Functions inherited from IntegrateFireSim::Synapses::SynapseType
	SynapseType ()
	Default constructor. More...

virtual	~SynapseType ()
	Destructor. More...

void	NeuralModule (IntegrateFireNeuralModule *lpModule)
	Sets the NeuralModule pointer. More...

virtual void	SetSystemPointers (Simulator lpSim, Structure lpStructure, AnimatSim::Behavior::NeuralModule lpModule, Node lpNode, bool bVerify)

int	SynapseTypeID ()
	Gets the synapse type identifier. More...

void	SynapseTypeID (int iID)
	Sets the synapse type identifier. More...

virtual void	VerifySystemPointers ()
	Verify that system pointers have been set correctly. More...

Public Member Functions inherited from AnimatSim::AnimatBase
	AnimatBase ()
	Constructs an AnimatBase object. More...

virtual	~AnimatBase ()
	Destroys the AnimatBase object.. More...

virtual bool	AddItem (const std::string &strItemType, const std::string &strXml, bool bThrowError=true, bool bDoNotInit=false)
	Adds a new object to this parent. More...

virtual void	AfterResetSimulation ()
	Called after a simulation reset for some objects. More...

virtual long	CalculateSnapshotByteSize ()
	Calculates the snapshot byte size. More...

virtual void	Copy (CStdSerialize *lpSource)

virtual void	Enabled (bool bVal)
	Tells whether this item is enabled or not. This is not actually used for all objects, only specific ones. I am putting it in the base class though to prevent numerous duplications. More...

virtual bool	Enabled ()
	Tells whether this item is enabled or not. This is not actually used for all objects, only specific ones. I am putting it in the base class though to prevent numerous duplications. More...

virtual float *	GetDataPointer (const std::string &strDataType)
	Returns a float pointer to a data item of interest in this object. More...

virtual NeuralModule *	GetNeuralModule ()
	Gets the neural module. More...

virtual Node *	GetNode ()
	Gets the node. More...

virtual Simulator *	GetSimulator ()
	Gets the simulator pointer. More...

virtual Structure *	GetStructure ()
	Gets the structure for this node. More...

virtual bool	HasProperty (const std::string &strName)
	Queries this object if it has a property with the given name. More...

virtual std::string	ID ()
	Gets the unique GUID ID of this object. More...

virtual void	ID (std::string strValue)
	Sets the unique GUID ID of the object. More...

virtual void	Initialize ()
	Initializes this object. More...

virtual void	Kill (bool bState=true)
	Kills. More...

virtual void	Load (StdUtils::CStdXml &oXml)
	Loads the item using an XML data packet. More...

virtual void	LoadKeyFrameSnapshot (byte *aryBytes, long &lIndex)
	Loads a key frame snapshot. More...

virtual std::string	Name ()
	Gets the name of this object. More...

virtual void	Name (std::string strValue)
	Sets the name of the object. Blank is acceptable. More...

virtual AnimatPropertyType	PropertyType (const std::string &strName)

virtual void	QueryProperties (CStdPtrArray< TypeProperty > &aryProperties)
	Queries this object for a list of properties that can be changed using SetData. More...

virtual void	ReInitialize ()
	Re-initialize this object. More...

virtual bool	RemoveItem (const std::string &strItemType, const std::string &strID, bool bThrowError=true)
	Removes a child item from this parent. More...

virtual void	Reset ()
	Resets this object. More...

virtual void	ResetSimulation ()
	Resets the simulation back to time 0. More...

virtual void	RigidBodyAdded (std::string strID)

virtual void	RigidBodyRemoved (std::string strID)

virtual void	SaveKeyFrameSnapshot (byte *aryBytes, long &lIndex)
	Saves a key frame snapshot. More...

virtual bool	Selected ()
	Tells if this items is selected or not. More...

virtual void	Selected (bool bValue, bool bSelectMultiple)
	Selects this object. More...

virtual bool	SetData (const std::string &strDataType, const float fltValue, bool bThrowError=true)
	Set a variable based on a string data type name. More...

virtual bool	SetData (const std::string &strDataType, const long lValue, bool bThrowError=true)
	Set a variable based on a string data type name. More...

virtual void	SetSystemPointers (Simulator lpSim, Structure lpStructure, NeuralModule lpModule, Node lpNode, bool bVerify)
	Sets the system pointers. More...

virtual void	SimPausing ()
	Called just before the simulation pauses. More...

virtual void	SimStarting ()
	Called just before the simulation starts. More...

virtual void	SimStopping ()
	Called just before the simulation stops. More...

virtual void	StepSimulation ()
	Step the simulation for this object. More...

virtual void	TimeStepModified ()
	Notification method that the time step modified has been modified. Objects should recalculate any slice times as needed. More...

virtual std::string	Type ()
	returns the string type name of this object. More...

virtual void	Type (std::string strValue)
	Sets the class type for this object. More...

virtual void	VisualSelectionModeChanged (int iNewMode)
	Visual selection mode changed. More...

Protected Attributes
bool	m_bAllowForget
	true if forgetting is allowed.

bool	m_bHebbian
	true if hebbian learning is used.

bool	m_bVoltDep
	true if voltage dependent

double	m_dConsolidation
	The consolidation factor.

double	m_dDecay
	The synaptic decay.

double	m_dEquil
	The equilibruim potential.

double	m_dFacilD
	The facilitation.

double	m_dFacilDecay
	The facilitation decay.

double	m_dForgetTime
	Forgetting time window.

double	m_dLearningInc
	The learning increment.

double	m_dLearningTime
	Learning time window.

double	m_dMaxAugCond
	The maximum augmented conductance.

double	m_dMaxRelCond
	The maximum relative conductance.

double	m_dRelFacil
	The relative facilitation amount.

double	m_dSatPSPot
	The saturation post-synaptic potential.

double	m_dSynAmp
	base syn amp, before vd or hebb

double	m_dThreshPSPot
	The threshold post-synaptic potential.

Protected Attributes inherited from IntegrateFireSim::Synapses::SynapseType
int	m_iSynapseTypeID
	Integre ID for the synapse type.

IntegrateFireNeuralModule *	m_lpIGFModule
	Pointer to the parent IntegrateFireNeuralModule.

Protected Attributes inherited from AnimatSim::AnimatBase
bool	m_bEnabled
	Tells if this item is enabled or not. If it is not enabled then it is not run.

bool	m_bSelected
	Tells whether the object is selected or not.

AnimatSim::Behavior::NeuralModule *	m_lpModule
	The pointer to this items parentNeuralModule. If this is not relevant for this object then this is NULL.

Node *	m_lpNode
	The pointer to this items parent Node. If this is not relevant for this object then this is NULL.

Simulator *	m_lpSim
	The pointer to a Simulation.

AnimatSim::Environment::Structure *	m_lpStructure
	The pointer to this items parent Structure. If this is not relevant for this object then this is NULL.

std::string	m_strID
	The unique Id for this object.

std::string	m_strName
	The name for this object.

std::string	m_strType
	The type for this object. Examples are Box, Plane, Neuron, etc..

Friends
class	IntegrateFireSim::IntegrateFireNeuralModule

class	IntegrateFireSim::Neuron

Detailed Description

Spiking chemical synapse type.

This synapse type increases the conductance to the max value when a spike occurs and then it decays exponentially back to zero.

Author: dcofer

Date: 3/31/2011

Definition at line 22 of file SpikingChemicalSynapse.h.

Constructor & Destructor Documentation

IntegrateFireSim::Synapses::SpikingChemicalSynapse::SpikingChemicalSynapse ( )

Default constructor.

Author: dcofer

Date: 3/31/2011

Definition at line 31 of file SpikingChemicalSynapse.cpp.

References m_bAllowForget, m_bHebbian, m_bVoltDep, m_dConsolidation, m_dDecay, m_dEquil, m_dFacilD, m_dFacilDecay, m_dForgetTime, m_dLearningInc, m_dLearningTime, m_dMaxAugCond, m_dMaxRelCond, m_dRelFacil, m_dSatPSPot, m_dSynAmp, and m_dThreshPSPot.

IntegrateFireSim::Synapses::SpikingChemicalSynapse::~SpikingChemicalSynapse ( )

virtual

Destructor.

Author: dcofer

Date: 3/31/2011

Definition at line 60 of file SpikingChemicalSynapse.cpp.

Member Function Documentation

bool IntegrateFireSim::Synapses::SpikingChemicalSynapse::AllowForget ( )

Gets whether forgetting is allowed.

Author: dcofer

Date: 3/31/2011

Returns: true if forgetting allowed, false else.

Definition at line 460 of file SpikingChemicalSynapse.cpp.

References m_bAllowForget.

void IntegrateFireSim::Synapses::SpikingChemicalSynapse::AllowForgetting ( bool bVal )

Sets whether forgetting is allowed.

Author: dcofer

Date: 3/31/2011

Parameters

bVal	true to allow forgetting.

Definition at line 440 of file SpikingChemicalSynapse.cpp.

References m_bAllowForget.

Referenced by IntegrateFireSim::Synapses::Connexion::AllowForgetting().

Here is the caller graph for this function:

bool IntegrateFireSim::Synapses::SpikingChemicalSynapse::AllowForgetting ( )

Gets whether forgetting is allowed.

Author: dcofer

Date: 3/31/2011

Returns: true if forgetting allowed, false else.

Definition at line 450 of file SpikingChemicalSynapse.cpp.

References m_bAllowForget.

Referenced by SetData().

Here is the caller graph for this function:

double IntegrateFireSim::Synapses::SpikingChemicalSynapse::Consolidation ( )

Gets the consolidation factor.

Author: dcofer

Date: 3/31/2011

Returns: factor.

Definition at line 520 of file SpikingChemicalSynapse.cpp.

References m_dConsolidation.

Referenced by IntegrateFireSim::Synapses::Connexion::Consolidation().

Here is the caller graph for this function:

void IntegrateFireSim::Synapses::SpikingChemicalSynapse::ConsolidationFactor ( double dVal )

Sets the consolidation factor.

Author: dcofer

Date: 3/31/2011

Parameters

dVal	The new value.

Definition at line 500 of file SpikingChemicalSynapse.cpp.

References m_dConsolidation.

double IntegrateFireSim::Synapses::SpikingChemicalSynapse::ConsolidationFactor ( )

Gets the consolidation factor.

Author: dcofer

Date: 3/31/2011

Returns: factor.

Definition at line 510 of file SpikingChemicalSynapse.cpp.

References m_dConsolidation.

Referenced by SetData().

Here is the caller graph for this function:

void IntegrateFireSim::Synapses::SpikingChemicalSynapse::DecayRate ( double dVal )

Sets the decay rate.

Author: dcofer

Date: 3/31/2011

Parameters

dVal	The new value.

Definition at line 115 of file SpikingChemicalSynapse.cpp.

References m_dDecay.

double IntegrateFireSim::Synapses::SpikingChemicalSynapse::DecayRate ( )

Gets the decay rate.

Author: dcofer

Date: 3/31/2011

Returns: decay rate.

Definition at line 125 of file SpikingChemicalSynapse.cpp.

References m_dDecay.

Referenced by SetData().

Here is the caller graph for this function:

void IntegrateFireSim::Synapses::SpikingChemicalSynapse::EquilibriumPotential ( double dVal )

Sets the equilibrium potential.

Author: dcofer

Date: 3/31/2011

Parameters

dVal	The new value.

Definition at line 75 of file SpikingChemicalSynapse.cpp.

References m_dEquil.

Referenced by IntegrateFireSim::Neuron::CalcUpdate().

Here is the caller graph for this function:

double IntegrateFireSim::Synapses::SpikingChemicalSynapse::EquilibriumPotential ( )

Gets the equilibrium potential.

Author: dcofer

Date: 3/31/2011

Returns: equilibrium potential.

Definition at line 85 of file SpikingChemicalSynapse.cpp.

References m_dEquil.

Referenced by SetData().

Here is the caller graph for this function:

double IntegrateFireSim::Synapses::SpikingChemicalSynapse::FacilD ( )

Gets the facilitation decrement value.

Author: dcofer

Date: 3/31/2011

Returns: decrement.

Definition at line 135 of file SpikingChemicalSynapse.cpp.

References m_dFacilD.

Referenced by IntegrateFireSim::Synapses::Connexion::FacilD().

Here is the caller graph for this function:

double IntegrateFireSim::Synapses::SpikingChemicalSynapse::FacilDecay ( )

Gets the facilitation decay.

Author: dcofer

Date: 3/31/2011

Returns: facilitation decay.

Definition at line 200 of file SpikingChemicalSynapse.cpp.

References m_dFacilDecay.

void IntegrateFireSim::Synapses::SpikingChemicalSynapse::FacilitationDecay ( double dVal )

Sets the facilitation decay.

Author: dcofer

Date: 3/31/2011

Parameters

dVal	The new value.

Definition at line 175 of file SpikingChemicalSynapse.cpp.

References m_dFacilD, m_dFacilDecay, AnimatSim::AnimatBase::m_lpModule, StdUtils::Std_IsAboveMin(), and AnimatSim::Behavior::NeuralModule::TimeStep().

Here is the call graph for this function:

double IntegrateFireSim::Synapses::SpikingChemicalSynapse::FacilitationDecay ( )

Gets the facilitation decay.

Author: dcofer

Date: 3/31/2011

Returns: facilitation decay.

Definition at line 190 of file SpikingChemicalSynapse.cpp.

References m_dFacilDecay.

Referenced by SetData().

Here is the caller graph for this function:

void IntegrateFireSim::Synapses::SpikingChemicalSynapse::ForgettingTimeWindow ( double dVal )

Sets the forgetting time window.

Author: dcofer

Date: 3/31/2011

Parameters

dVal	The new value.

Definition at line 470 of file SpikingChemicalSynapse.cpp.

References m_dForgetTime.

double IntegrateFireSim::Synapses::SpikingChemicalSynapse::ForgettingTimeWindow ( )

Gets the forgetting time window.

Author: dcofer

Date: 3/31/2011

Returns: window.

Definition at line 480 of file SpikingChemicalSynapse.cpp.

References m_dForgetTime.

Referenced by SetData().

Here is the caller graph for this function:

double IntegrateFireSim::Synapses::SpikingChemicalSynapse::ForgettingWindow ( )

Gets the forgetting time window.

Author: dcofer

Date: 3/31/2011

Returns: window.

Definition at line 490 of file SpikingChemicalSynapse.cpp.

References m_dForgetTime.

Referenced by IntegrateFireSim::Synapses::Connexion::ForgettingWindow().

Here is the caller graph for this function:

void IntegrateFireSim::Synapses::SpikingChemicalSynapse::Hebbian ( bool bVal )

Sets whether this synapse uses Hebbian learning.

Author: dcofer

Date: 3/31/2011

Parameters

bVal	true to use Hebbian learning.

Definition at line 330 of file SpikingChemicalSynapse.cpp.

References m_bHebbian.

Referenced by IntegrateFireSim::Synapses::Connexion::Hebbian().

Here is the caller graph for this function:

bool IntegrateFireSim::Synapses::SpikingChemicalSynapse::Hebbian ( )

Gets whether this synapse uses Hebbian learning.

Author: dcofer

Date: 3/31/2011

Returns: true if it uses Hebbian learning, false else.

Definition at line 340 of file SpikingChemicalSynapse.cpp.

References m_bHebbian.

Referenced by SetData().

Here is the caller graph for this function:

double IntegrateFireSim::Synapses::SpikingChemicalSynapse::HebbIncrement ( )

Gets the hebbian increment.

Author: dcofer

Date: 3/31/2011

Returns: increment.

Definition at line 400 of file SpikingChemicalSynapse.cpp.

References m_dLearningInc.

Referenced by IntegrateFireSim::Synapses::Connexion::HebbIncrement().

Here is the caller graph for this function:

double IntegrateFireSim::Synapses::SpikingChemicalSynapse::HebbTimeWindow ( )

Gets the learning time window.

Author: dcofer

Date: 3/31/2011

Returns: window.

Definition at line 430 of file SpikingChemicalSynapse.cpp.

References m_dLearningTime.

Referenced by IntegrateFireSim::Synapses::Connexion::HebbTimeWindow().

Here is the caller graph for this function:

void IntegrateFireSim::Synapses::SpikingChemicalSynapse::LearningIncrement ( double dVal )

Sets the learning increment.

Author: dcofer

Date: 3/31/2011

Parameters

dVal	The new value.

Definition at line 380 of file SpikingChemicalSynapse.cpp.

References m_dLearningInc.

double IntegrateFireSim::Synapses::SpikingChemicalSynapse::LearningIncrement ( )

Gets the learning increment.

Author: dcofer

Date: 3/31/2011

Returns: learning increment.

Definition at line 390 of file SpikingChemicalSynapse.cpp.

References m_dLearningInc.

Referenced by SetData().

Here is the caller graph for this function:

void IntegrateFireSim::Synapses::SpikingChemicalSynapse::LearningTimeWindow ( double dVal )

Sets the learning time window.

Author: dcofer

Date: 3/31/2011

Parameters

dVal	The new value.

Definition at line 410 of file SpikingChemicalSynapse.cpp.

References m_dLearningTime.

double IntegrateFireSim::Synapses::SpikingChemicalSynapse::LearningTimeWindow ( )

Gets the learning time window.

Author: dcofer

Date: 3/31/2011

Returns: window.

Definition at line 420 of file SpikingChemicalSynapse.cpp.

References m_dLearningTime.

Referenced by SetData().

Here is the caller graph for this function:

void IntegrateFireSim::Synapses::SpikingChemicalSynapse::MaxAugmentedConductance ( double dVal )

Sets the maximum augmented conductance.

Author: dcofer

Date: 3/31/2011

Parameters

dVal	The new value.

Definition at line 350 of file SpikingChemicalSynapse.cpp.

References m_dMaxAugCond.

double IntegrateFireSim::Synapses::SpikingChemicalSynapse::MaxAugmentedConductance ( )

Gets the maximum augmented conductance.

Author: dcofer

Date: 3/31/2011

Returns: conductance.

Definition at line 360 of file SpikingChemicalSynapse.cpp.

References m_dMaxAugCond.

Referenced by SetData().

Here is the caller graph for this function:

double IntegrateFireSim::Synapses::SpikingChemicalSynapse::MaxGHebb ( )

Gets the maximum augmented conductance.

Author: dcofer

Date: 3/31/2011

Returns: conductance.

Definition at line 370 of file SpikingChemicalSynapse.cpp.

References m_dMaxAugCond.

Referenced by IntegrateFireSim::Synapses::Connexion::MaxGHebb().

Here is the caller graph for this function:

double IntegrateFireSim::Synapses::SpikingChemicalSynapse::MaxGVoltDepRel ( )

Gets the maximum relative conductance.

Author: dcofer

Date: 3/31/2011

Returns: maximum relative conductance.

Definition at line 260 of file SpikingChemicalSynapse.cpp.

References m_dMaxRelCond.

Referenced by IntegrateFireSim::Synapses::Connexion::MaxGVoltDepRel().

Here is the caller graph for this function:

void IntegrateFireSim::Synapses::SpikingChemicalSynapse::MaxRelativeConductance ( double dVal )

Sets the maximum relative conductance.

Author: dcofer

Date: 3/31/2011

Parameters

dVal	The new value.

Definition at line 240 of file SpikingChemicalSynapse.cpp.

References m_dMaxRelCond.

double IntegrateFireSim::Synapses::SpikingChemicalSynapse::MaxRelativeConductance ( )

Gets the maximum relative conductance.

Author: dcofer

Date: 3/31/2011

Returns: maximum relative conductance.

Definition at line 250 of file SpikingChemicalSynapse.cpp.

References m_dMaxRelCond.

Referenced by SetData().

Here is the caller graph for this function:

void IntegrateFireSim::Synapses::SpikingChemicalSynapse::RelativeFacilitation ( double dVal )

Sets the relative facilitation.

Author: dcofer

Date: 3/31/2011

Parameters

dVal	The new value.

Definition at line 145 of file SpikingChemicalSynapse.cpp.

References m_dRelFacil.

double IntegrateFireSim::Synapses::SpikingChemicalSynapse::RelativeFacilitation ( )

Gets the relative facilitation.

Author: dcofer

Date: 3/31/2011

Returns: relative facilitation.

Definition at line 155 of file SpikingChemicalSynapse.cpp.

References m_dRelFacil.

Referenced by SetData().

Here is the caller graph for this function:

double IntegrateFireSim::Synapses::SpikingChemicalSynapse::RelFacil ( )

Gets the relative facilitation.

Author: dcofer

Date: 3/31/2011

Returns: relative facilitation.

Definition at line 165 of file SpikingChemicalSynapse.cpp.

References m_dRelFacil.

Referenced by IntegrateFireSim::Synapses::Connexion::RelFacil().

Here is the caller graph for this function:

double IntegrateFireSim::Synapses::SpikingChemicalSynapse::SatPSPot ( )

Gets the saturation potential.

Author: dcofer

Date: 3/31/2011

Returns: saturation potential.

Definition at line 290 of file SpikingChemicalSynapse.cpp.

References m_dSatPSPot.

void IntegrateFireSim::Synapses::SpikingChemicalSynapse::SaturatePotential ( double dVal )

Sets the saturation potential.

Author: dcofer

Date: 3/31/2011

Parameters

dVal	The new value.

Definition at line 270 of file SpikingChemicalSynapse.cpp.

References m_dSatPSPot.

double IntegrateFireSim::Synapses::SpikingChemicalSynapse::SaturatePotential ( )

Gets the saturation potential.

Author: dcofer

Date: 3/31/2011

Returns: saturation potential.

Definition at line 280 of file SpikingChemicalSynapse.cpp.

References m_dSatPSPot.

Referenced by SetData().

Here is the caller graph for this function:

bool IntegrateFireSim::Synapses::SpikingChemicalSynapse::SetData	(	const std::string &	strDataType,
		const std::string &	strValue,
		bool	bThrowError = `true`
	)

virtual

Set a variable based on a string data type name.

This is a generic method that can be used to set any variable in an AnimatBase object by specifying the name of the variable and a string representation of that data. The GUI uses this method to set data into variables in the simulation when the user changes them in the UI. The value string can be as simple as a float or int, or as complex as an xml packet. It is the developers responsibilty to know what type of data is needed and to process it accordingly.

Author: dcofer

Date: 2/22/2011

Parameters

strDataType	string name of the data type to set.
strValue	The string value of the data. It is up to the developer to determine what this should be. For example, in most cases it is simply a float and you just have to convert it to a float and make the appropriate mutator method call. However, it can be any type of string, including an entire xml packet. It is the developers responsibility to know how to set and process the data as required.
bThrowError	true to throw error if there is a problem. If false then it will not return an error, just return false.
