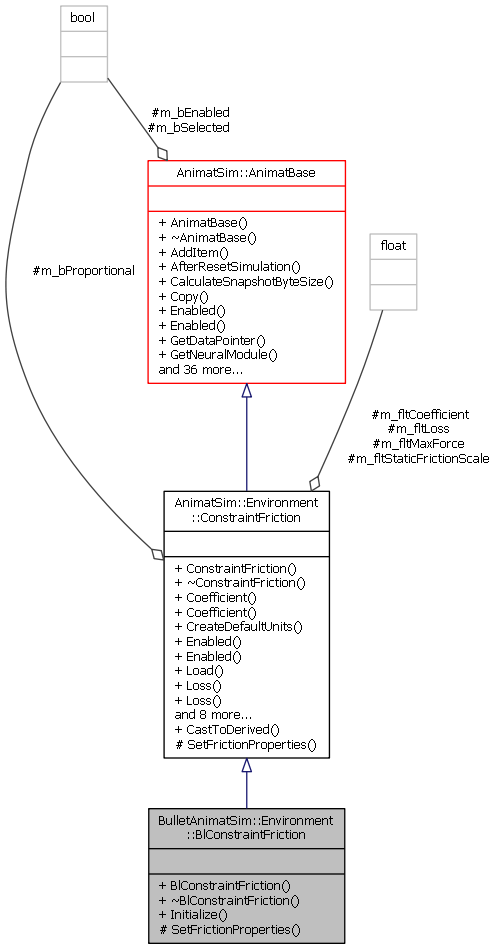

Inheritance diagram for BulletAnimatSim::Environment::BlConstraintFriction: Collaboration diagram for BulletAnimatSim::Environment::BlConstraintFriction:Public Member Functions | |
| virtual void | Initialize () |
| Initializes this object. More... | |
| Public Member Functions inherited from AnimatSim::Environment::ConstraintFriction | |
| ConstraintFriction () | |
| Default constructor. More... | |
| virtual | ~ConstraintFriction () |
| Destructor. More... | |
| virtual float | Coefficient () |
| Gets the Coefficient of friction for this constraint. More... | |
| virtual void | Coefficient (float fltVal) |
| Sets the Coefficient of friction for this constraint. More... | |
| virtual void | CreateDefaultUnits () |
| This takes the default values defined in the constructor and scales them according to the distance and mass units to be acceptable values. More... | |
| virtual bool | Enabled () |
| Tells whether this item is enabled or not. This is not actually used for all objects, only specific ones. I am putting it in the base class though to prevent numerous duplications. More... | |
| virtual void | Enabled (bool bVal) |
| Tells whether this item is enabled or not. This is not actually used for all objects, only specific ones. I am putting it in the base class though to prevent numerous duplications. More... | |
| virtual void | Load (CStdXml &oXml) |
| virtual float | Loss () |
| Gets the velocity loss for this constraint. More... | |
| virtual void | Loss (float fltVal, bool bUseScaling=true) |
| Sets the velocity loss for this constraint. More... | |
| virtual float | MaxForce () |
| Gets the MaxForce the friction can apply. More... | |
| virtual void | MaxForce (float fltVal, bool bUseScaling=true) |
| Sets the MaxForce the friction can apply. More... | |
| virtual bool | Proportional () |
| Gets whether the friction force should be scaled based on the amount of force applied to the joint. More... | |
| virtual void | Proportional (bool bVal) |
| Sets whether the friction force should be scaled based on the amount of force applied to the joint. More... | |
| virtual void | QueryProperties (CStdPtrArray< TypeProperty > &aryProperties) |
| Queries this object for a list of properties that can be changed using SetData. More... | |
| virtual bool | SetData (const std::string &strDataType, const std::string &strValue, bool bThrowError=true) |
| Set a variable based on a string data type name. More... | |
| virtual float | StaticFrictionScale () |
| Gets the ratio between static and dynamic friction coefficients. More... | |
| virtual void | StaticFrictionScale (float fltVal) |
| Sets the ratio between static and dynamic friction coefficients. More... | |
| Public Member Functions inherited from AnimatSim::AnimatBase | |
| AnimatBase () | |
| Constructs an AnimatBase object. More... | |
| virtual | ~AnimatBase () |
| Destroys the AnimatBase object.. More... | |
| virtual bool | AddItem (const std::string &strItemType, const std::string &strXml, bool bThrowError=true, bool bDoNotInit=false) |
| Adds a new object to this parent. More... | |
| virtual void | AfterResetSimulation () |
| Called after a simulation reset for some objects. More... | |
| virtual long | CalculateSnapshotByteSize () |
| Calculates the snapshot byte size. More... | |
| virtual void | Copy (CStdSerialize *lpSource) |
| virtual float * | GetDataPointer (const std::string &strDataType) |
| Returns a float pointer to a data item of interest in this object. More... | |
| virtual NeuralModule * | GetNeuralModule () |
| Gets the neural module. More... | |
| virtual Node * | GetNode () |
| Gets the node. More... | |
| virtual Simulator * | GetSimulator () |
| Gets the simulator pointer. More... | |
| virtual Structure * | GetStructure () |
| Gets the structure for this node. More... | |
| virtual bool | HasProperty (const std::string &strName) |
| Queries this object if it has a property with the given name. More... | |
| virtual std::string | ID () |
| Gets the unique GUID ID of this object. More... | |
| virtual void | ID (std::string strValue) |
| Sets the unique GUID ID of the object. More... | |
| virtual void | Kill (bool bState=true) |
| Kills. More... | |
| virtual void | Load (StdUtils::CStdXml &oXml) |
| Loads the item using an XML data packet. More... | |
| virtual void | LoadKeyFrameSnapshot (byte *aryBytes, long &lIndex) |
| Loads a key frame snapshot. More... | |
| virtual std::string | Name () |
| Gets the name of this object. More... | |
| virtual void | Name (std::string strValue) |
| Sets the name of the object. Blank is acceptable. More... | |
| virtual AnimatPropertyType | PropertyType (const std::string &strName) |
| virtual void | ReInitialize () |
| Re-initialize this object. More... | |
| virtual bool | RemoveItem (const std::string &strItemType, const std::string &strID, bool bThrowError=true) |
| Removes a child item from this parent. More... | |
| virtual void | Reset () |
| Resets this object. More... | |
| virtual void | ResetSimulation () |
| Resets the simulation back to time 0. More... | |
| virtual void | RigidBodyAdded (std::string strID) |
| virtual void | RigidBodyRemoved (std::string strID) |
| virtual void | SaveKeyFrameSnapshot (byte *aryBytes, long &lIndex) |
| Saves a key frame snapshot. More... | |
| virtual bool | Selected () |
| Tells if this items is selected or not. More... | |
| virtual void | Selected (bool bValue, bool bSelectMultiple) |
| Selects this object. More... | |
| virtual bool | SetData (const std::string &strDataType, const float fltValue, bool bThrowError=true) |
| Set a variable based on a string data type name. More... | |
| virtual bool | SetData (const std::string &strDataType, const long lValue, bool bThrowError=true) |
| Set a variable based on a string data type name. More... | |
| virtual void | SetSystemPointers (Simulator *lpSim, Structure *lpStructure, NeuralModule *lpModule, Node *lpNode, bool bVerify) |
| Sets the system pointers. More... | |
| virtual void | SimPausing () |
| Called just before the simulation pauses. More... | |
| virtual void | SimStarting () |
| Called just before the simulation starts. More... | |
| virtual void | SimStopping () |
| Called just before the simulation stops. More... | |
| virtual void | StepSimulation () |
| Step the simulation for this object. More... | |
| virtual void | TimeStepModified () |
| Notification method that the time step modified has been modified. Objects should recalculate any slice times as needed. More... | |
| virtual std::string | Type () |
| returns the string type name of this object. More... | |
| virtual void | Type (std::string strValue) |
| Sets the class type for this object. More... | |
| virtual void | VerifySystemPointers () |
| Verify that system pointers have been set correctly. More... | |
| virtual void | VisualSelectionModeChanged (int iNewMode) |
| Visual selection mode changed. More... | |
Protected Member Functions | |
| virtual void | SetFrictionProperties () |
Additional Inherited Members | |
| Static Public Member Functions inherited from AnimatSim::Environment::ConstraintFriction | |
| static ConstraintFriction * | CastToDerived (AnimatBase *lpBase) |
| Protected Attributes inherited from AnimatSim::Environment::ConstraintFriction | |
| bool | m_bProportional |
| Tells if the friction force should be scaled based on the force applied to the joint. | |
| float | m_fltCoefficient |
| The friction coefficient for this constraint. | |
| float | m_fltLoss |
| The velocity loss for this constraint. | |
| float | m_fltMaxForce |
| The maximum force for this constraint. | |
| float | m_fltStaticFrictionScale |
| The scale ration of static to dynamic friction. | |
| Protected Attributes inherited from AnimatSim::AnimatBase | |
| bool | m_bEnabled |
| Tells if this item is enabled or not. If it is not enabled then it is not run. | |
| bool | m_bSelected |
| Tells whether the object is selected or not. | |
| AnimatSim::Behavior::NeuralModule * | m_lpModule |
| The pointer to this items parentNeuralModule. If this is not relevant for this object then this is NULL. | |
| Node * | m_lpNode |
| The pointer to this items parent Node. If this is not relevant for this object then this is NULL. | |
| Simulator * | m_lpSim |
| The pointer to a Simulation. | |
| AnimatSim::Environment::Structure * | m_lpStructure |
| The pointer to this items parent Structure. If this is not relevant for this object then this is NULL. | |
| std::string | m_strID |
| The unique Id for this object. | |
| std::string | m_strName |
| The name for this object. | |
| std::string | m_strType |
| The type for this object. Examples are Box, Plane, Neuron, etc.. | |
Definition at line 11 of file BlConstraintFriction.h.
|
virtual |
Initializes this object.
After an object is loaded in it must be initialized before it can be used. This allows the object to retrieve any pointers or setup memory that it will need during execution. Each object is responsible for initializing any of its child objects, so you simply need to call this method on the containing class to init all child objects. It also calls VerifySystemPointers to make sure that the system pointers have been setup correctly.
Reimplemented from AnimatSim::AnimatBase.
Definition at line 29 of file BlConstraintFriction.cpp.
