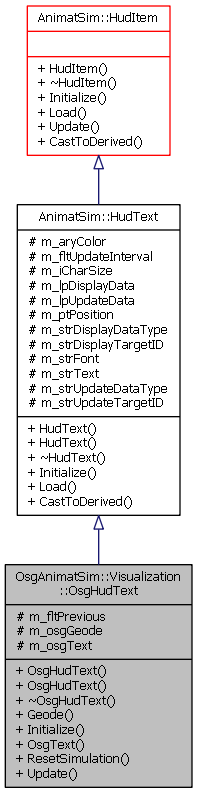

Inheritance diagram for OsgAnimatSim::Visualization::OsgHudText:

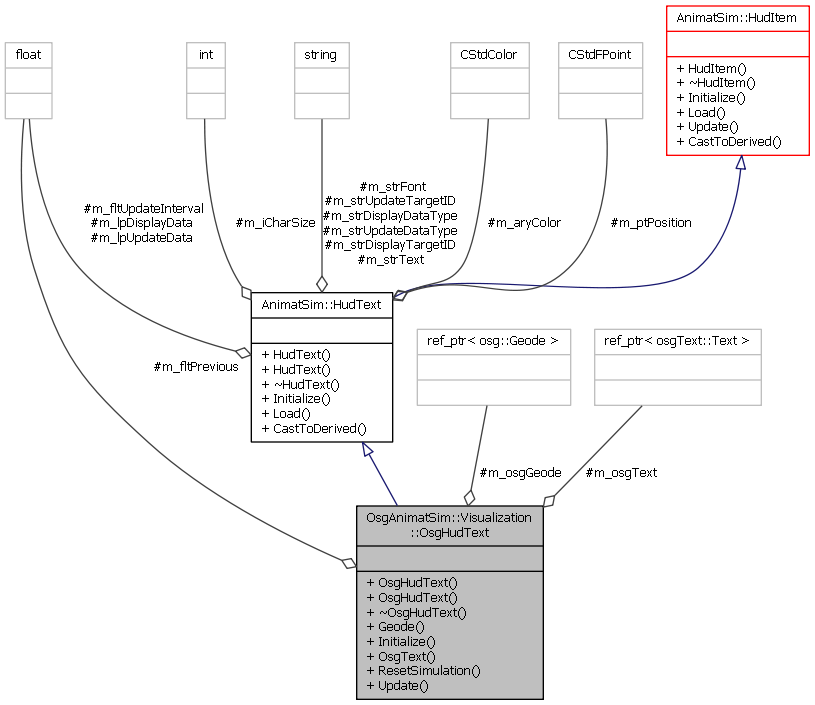

Collaboration diagram for OsgAnimatSim::Visualization::OsgHudText:

Public Member Functions
	OsgHudText ()
	Default constructor. More...

	OsgHudText (float *aryColor, CStdFPoint &ptPosition, std::string strFont, int iCharSize, std::string strText, std::string strDisplayTargetID, std::string strDisplayDataType, std::string strUpdateTargetID, std::string strUpdateDataType, float fltUpdateInterval)
	Constructor. More...

virtual	~OsgHudText ()
	Destructor. More...

osg::Geode *	Geode ()

virtual void	Initialize (void *lpVoidProjection)

osgText::Text *	OsgText ()

virtual void	ResetSimulation ()
	Resets the simulation back to time 0. More...

virtual void	Update ()

Public Member Functions inherited from AnimatSim::HudText
	HudText (float *aryColor, CStdFPoint &ptPosition, std::string strFont, int iCharSize, std::string strText, std::string strDisplayTargetID, std::string strDisplayDataType, std::string strUpdateTargetID, std::string strUpdateDataType, float fltUpdateInterval)

virtual void	Load (CStdXml &oXml)

Public Member Functions inherited from AnimatSim::HudItem
	HudItem ()
	Default constructor. More...

virtual	~HudItem ()
	Destructor. More...

Public Member Functions inherited from AnimatSim::AnimatBase
	AnimatBase ()
	Constructs an AnimatBase object. More...

virtual	~AnimatBase ()
	Destroys the AnimatBase object.. More...

virtual bool	AddItem (const std::string &strItemType, const std::string &strXml, bool bThrowError=true, bool bDoNotInit=false)
	Adds a new object to this parent. More...

virtual void	AfterResetSimulation ()
	Called after a simulation reset for some objects. More...

virtual long	CalculateSnapshotByteSize ()
	Calculates the snapshot byte size. More...

virtual void	Copy (CStdSerialize *lpSource)

virtual void	Enabled (bool bVal)
	Tells whether this item is enabled or not. This is not actually used for all objects, only specific ones. I am putting it in the base class though to prevent numerous duplications. More...

virtual bool	Enabled ()
	Tells whether this item is enabled or not. This is not actually used for all objects, only specific ones. I am putting it in the base class though to prevent numerous duplications. More...

virtual float *	GetDataPointer (const std::string &strDataType)
	Returns a float pointer to a data item of interest in this object. More...

virtual NeuralModule *	GetNeuralModule ()
	Gets the neural module. More...

virtual Node *	GetNode ()
	Gets the node. More...

virtual Simulator *	GetSimulator ()
	Gets the simulator pointer. More...

virtual Structure *	GetStructure ()
	Gets the structure for this node. More...

virtual bool	HasProperty (const std::string &strName)
	Queries this object if it has a property with the given name. More...

virtual std::string	ID ()
	Gets the unique GUID ID of this object. More...

virtual void	ID (std::string strValue)
	Sets the unique GUID ID of the object. More...

virtual void	Initialize ()
	Initializes this object. More...

virtual void	Kill (bool bState=true)
	Kills. More...

virtual void	Load (StdUtils::CStdXml &oXml)
	Loads the item using an XML data packet. More...

virtual void	LoadKeyFrameSnapshot (byte *aryBytes, long &lIndex)
	Loads a key frame snapshot. More...

virtual std::string	Name ()
	Gets the name of this object. More...

virtual void	Name (std::string strValue)
	Sets the name of the object. Blank is acceptable. More...

virtual AnimatPropertyType	PropertyType (const std::string &strName)

virtual void	QueryProperties (CStdPtrArray< TypeProperty > &aryProperties)
	Queries this object for a list of properties that can be changed using SetData. More...

virtual void	ReInitialize ()
	Re-initialize this object. More...

virtual bool	RemoveItem (const std::string &strItemType, const std::string &strID, bool bThrowError=true)
	Removes a child item from this parent. More...

virtual void	Reset ()
	Resets this object. More...

virtual void	RigidBodyAdded (std::string strID)

virtual void	RigidBodyRemoved (std::string strID)

virtual void	SaveKeyFrameSnapshot (byte *aryBytes, long &lIndex)
	Saves a key frame snapshot. More...

virtual bool	Selected ()
	Tells if this items is selected or not. More...

virtual void	Selected (bool bValue, bool bSelectMultiple)
	Selects this object. More...

virtual bool	SetData (const std::string &strDataType, const std::string &strValue, bool bThrowError=true)
	Set a variable based on a string data type name. More...

virtual bool	SetData (const std::string &strDataType, const float fltValue, bool bThrowError=true)
	Set a variable based on a string data type name. More...

virtual bool	SetData (const std::string &strDataType, const long lValue, bool bThrowError=true)
	Set a variable based on a string data type name. More...

virtual void	SetSystemPointers (Simulator lpSim, Structure lpStructure, NeuralModule lpModule, Node lpNode, bool bVerify)
	Sets the system pointers. More...

virtual void	SimPausing ()
	Called just before the simulation pauses. More...

virtual void	SimStarting ()
	Called just before the simulation starts. More...

virtual void	SimStopping ()
	Called just before the simulation stops. More...

virtual void	StepSimulation ()
	Step the simulation for this object. More...

virtual void	TimeStepModified ()
	Notification method that the time step modified has been modified. Objects should recalculate any slice times as needed. More...

virtual std::string	Type ()
	returns the string type name of this object. More...

virtual void	Type (std::string strValue)
	Sets the class type for this object. More...

virtual void	VerifySystemPointers ()
	Verify that system pointers have been set correctly. More...

virtual void	VisualSelectionModeChanged (int iNewMode)
	Visual selection mode changed. More...

Protected Attributes
float	m_fltPrevious

osg::ref_ptr< osg::Geode >	m_osgGeode

osg::ref_ptr< osgText::Text >	m_osgText

Protected Attributes inherited from AnimatSim::HudText
CStdColor	m_aryColor

float	m_fltUpdateInterval

int	m_iCharSize

float *	m_lpDisplayData

float *	m_lpUpdateData

CStdFPoint	m_ptPosition

std::string	m_strDisplayDataType

std::string	m_strDisplayTargetID

std::string	m_strFont

std::string	m_strText

std::string	m_strUpdateDataType

std::string	m_strUpdateTargetID

Protected Attributes inherited from AnimatSim::AnimatBase
bool	m_bEnabled
	Tells if this item is enabled or not. If it is not enabled then it is not run.

bool	m_bSelected
	Tells whether the object is selected or not.

AnimatSim::Behavior::NeuralModule *	m_lpModule
	The pointer to this items parentNeuralModule. If this is not relevant for this object then this is NULL.

Node *	m_lpNode
	The pointer to this items parent Node. If this is not relevant for this object then this is NULL.

Simulator *	m_lpSim
	The pointer to a Simulation.

AnimatSim::Environment::Structure *	m_lpStructure
	The pointer to this items parent Structure. If this is not relevant for this object then this is NULL.

std::string	m_strID
	The unique Id for this object.

std::string	m_strName
	The name for this object.

std::string	m_strType
	The type for this object. Examples are Box, Plane, Neuron, etc..

Additional Inherited Members
Static Public Member Functions inherited from AnimatSim::HudText
static HudText *	CastToDerived (AnimatBase *lpBase)

Static Public Member Functions inherited from AnimatSim::HudItem
static HudItem *	CastToDerived (AnimatBase *lpBase)

Detailed Description

Definition at line 14 of file OsgHudText.h.

Constructor & Destructor Documentation

OsgAnimatSim::Visualization::OsgHudText::OsgHudText ( )

Default constructor.

Author: dcofer

Date: 7/7/2011

Definition at line 21 of file OsgHudText.cpp.

OsgAnimatSim::Visualization::OsgHudText::OsgHudText	(	float *	aryColor,
		CStdFPoint &	ptPosition,
		std::string	strFont,
		int	iCharSize,
		std::string	strText,
		std::string	strDisplayTargetID,
		std::string	strDisplayDataType,
		std::string	strUpdateTargetID,
		std::string	strUpdateDataType,
		float	fltUpdateInterval
	)

Constructor.

Author: dcofer

Date: 7/7/2011

Parameters

[in,out]	aryColor	If non-null, the ary color.
[in,out]	ptPosition	The point position.
	strFont	The string font.
	iCharSize	Size of the character.
	strText	The string text.
	strTargetID	Identifier for the string target.
	strDataType	Type of the string data.

Definition at line 48 of file OsgHudText.cpp.

OsgAnimatSim::Visualization::OsgHudText::~OsgHudText ( )

virtual

Destructor.

Author: dcofer

Date: 7/7/2011

Definition at line 70 of file OsgHudText.cpp.

Member Function Documentation

void OsgAnimatSim::Visualization::OsgHudText::ResetSimulation ( )

virtual

Resets the simulation back to time 0.

This method calls the ResetSimulation method on all subitems in order to reset the simulation back to the beginning.

Author: dcofer

Date: 3/1/2011

Reimplemented from AnimatSim::AnimatBase.

Definition at line 96 of file OsgHudText.cpp.

The documentation for this class was generated from the following files:
