IntegrateFireSim::ClassFactory Class Reference

Class factory for the integrate and fire neural module. More...

#include <ClassFactory.h>

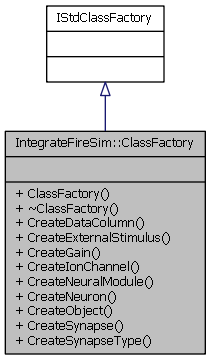

Inheritance diagram for IntegrateFireSim::ClassFactory:

Collaboration diagram for IntegrateFireSim::ClassFactory:

Public Member Functions
	ClassFactory ()
	Default constructor. More...
virtual	~ClassFactory ()
	Destructor. More...
virtual DataColumn *	CreateDataColumn (std::string strType, bool bThrowError=true)
	Creates a data column. More...
virtual ExternalStimulus *	CreateExternalStimulus (std::string strType, bool bThrowError=true)
	Creates an external stimulus. More...
virtual Gain *	CreateGain (std::string strType, bool bThrowError=true)
	Creates a gain. More...
virtual IonChannel *	CreateIonChannel (std::string strType, bool bThrowError=true)
	Creates an ion channel. More...
virtual NeuralModule *	CreateNeuralModule (std::string strType, bool bThrowError=true)
	Creates a neural module. More...
virtual Neuron *	CreateNeuron (std::string strType, bool bThrowError=true)
	Creates a neuron. More...
virtual CStdSerialize *	CreateObject (std::string strClassType, std::string strObjectType, bool bThrowError=true)
virtual Connexion *	CreateSynapse (std::string strType, bool bThrowError=true)
	Creates a synapse. More...
virtual SynapseType *	CreateSynapseType (std::string strType, bool bThrowError=true)
	Creates a synapse type. More...

Detailed Description

Class factory for the integrate and fire neural module.

Author

dcofer

Date

3/31/2011

Definition at line 17 of file IntegrateFireSim/ClassFactory.h.

Constructor & Destructor Documentation

IntegrateFireSim::ClassFactory::ClassFactory

(

)

Default constructor.

Author

dcofer

Date

3/31/2011

Definition at line 29 of file IntegrateFireSim/ClassFactory.cpp.

IntegrateFireSim::ClassFactory::~ClassFactory ( )

virtual

Destructor.

Author

dcofer

Date

3/31/2011

Definition at line 40 of file IntegrateFireSim/ClassFactory.cpp.

Member Function Documentation

DataColumn * IntegrateFireSim::ClassFactory::CreateDataColumn ( std::string  strType, bool  bThrowError = true  )

virtual

Creates a data column.

Author

dcofer

Date

3/31/2011

Parameters

strType	Type of class to create.
bThrowError	true to throw error if there is a problem.

Returns

Pointer to the created object.

Definition at line 130 of file IntegrateFireSim/ClassFactory.cpp.

References StdUtils::Std_ToUpper(), and StdUtils::Std_Trim().

Here is the call graph for this function:

ExternalStimulus * IntegrateFireSim::ClassFactory::CreateExternalStimulus ( std::string  strType, bool  bThrowError = true  )

virtual

Creates an external stimulus.

Author

dcofer

Date

3/31/2011

Parameters

strType	Type of class to create.
bThrowError	true to throw error if there is a problem.

Returns

Pointer to the created object.

Definition at line 49 of file IntegrateFireSim/ClassFactory.cpp.

References StdUtils::Std_ToUpper(), and StdUtils::Std_Trim().

Here is the call graph for this function:

Gain * IntegrateFireSim::ClassFactory::CreateGain ( std::string  strType, bool  bThrowError = true  )

virtual

Creates a gain.

Author

dcofer

Date

3/31/2011

Parameters

strType	Type of class to create.
bThrowError	true to throw error if there is a problem.

Returns

Pointer to the created object.

Definition at line 172 of file IntegrateFireSim/ClassFactory.cpp.

References StdUtils::Std_ToUpper(), and StdUtils::Std_Trim().

Here is the call graph for this function:

IonChannel * IntegrateFireSim::ClassFactory::CreateIonChannel ( std::string  strType, bool  bThrowError = true  )

virtual

Creates an ion channel.

Author

dcofer

Date

3/31/2011

Parameters

strType	Type of class to create.
bThrowError	true to throw error if there is a problem.

Returns

Pointer to the created object.

Definition at line 334 of file IntegrateFireSim/ClassFactory.cpp.

References StdUtils::Std_ToUpper(), and StdUtils::Std_Trim().

Here is the call graph for this function:

NeuralModule * IntegrateFireSim::ClassFactory::CreateNeuralModule ( std::string  strType, bool  bThrowError = true  )

virtual

Creates a neural module.

Author

dcofer

Date

3/31/2011

Parameters

strType	Type of class to create.
bThrowError	true to throw error if there is a problem.

Returns

Pointer to the created object.

Definition at line 90 of file IntegrateFireSim/ClassFactory.cpp.

References StdUtils::Std_ToUpper(), and StdUtils::Std_Trim().

Here is the call graph for this function:

Neuron * IntegrateFireSim::ClassFactory::CreateNeuron ( std::string  strType, bool  bThrowError = true  )

virtual

Creates a neuron.

Author

dcofer

Date

3/31/2011

Parameters

strType	Type of class to create.
bThrowError	true to throw error if there is a problem.

Returns

Pointer to the created object.

Definition at line 212 of file IntegrateFireSim/ClassFactory.cpp.

References StdUtils::Std_ToUpper(), and StdUtils::Std_Trim().

Here is the call graph for this function:

Connexion * IntegrateFireSim::ClassFactory::CreateSynapse ( std::string  strType, bool  bThrowError = true  )

virtual

Creates a synapse.

Author

dcofer

Date

3/31/2011

Parameters

strType	Type of class to create.
bThrowError	true to throw error if there is a problem.

Returns

Pointer to the created object.

Definition at line 252 of file IntegrateFireSim/ClassFactory.cpp.

References StdUtils::Std_ToUpper(), and StdUtils::Std_Trim().

Here is the call graph for this function:

SynapseType * IntegrateFireSim::ClassFactory::CreateSynapseType ( std::string  strType, bool  bThrowError = true  )

virtual

Creates a synapse type.

Author

dcofer

Date

3/31/2011

Parameters

strType	Type of class to create.
bThrowError	true to throw error if there is a problem.

Returns

Pointer to the created object.

Definition at line 291 of file IntegrateFireSim/ClassFactory.cpp.

References StdUtils::Std_ToUpper(), and StdUtils::Std_Trim().

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• IntegrateFireSim/ClassFactory.h
• IntegrateFireSim/ClassFactory.cpp
