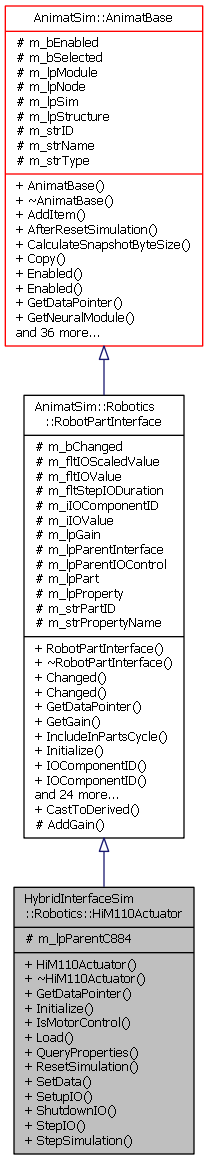

Inheritance diagram for HybridInterfaceSim::Robotics::HiM110Actuator:

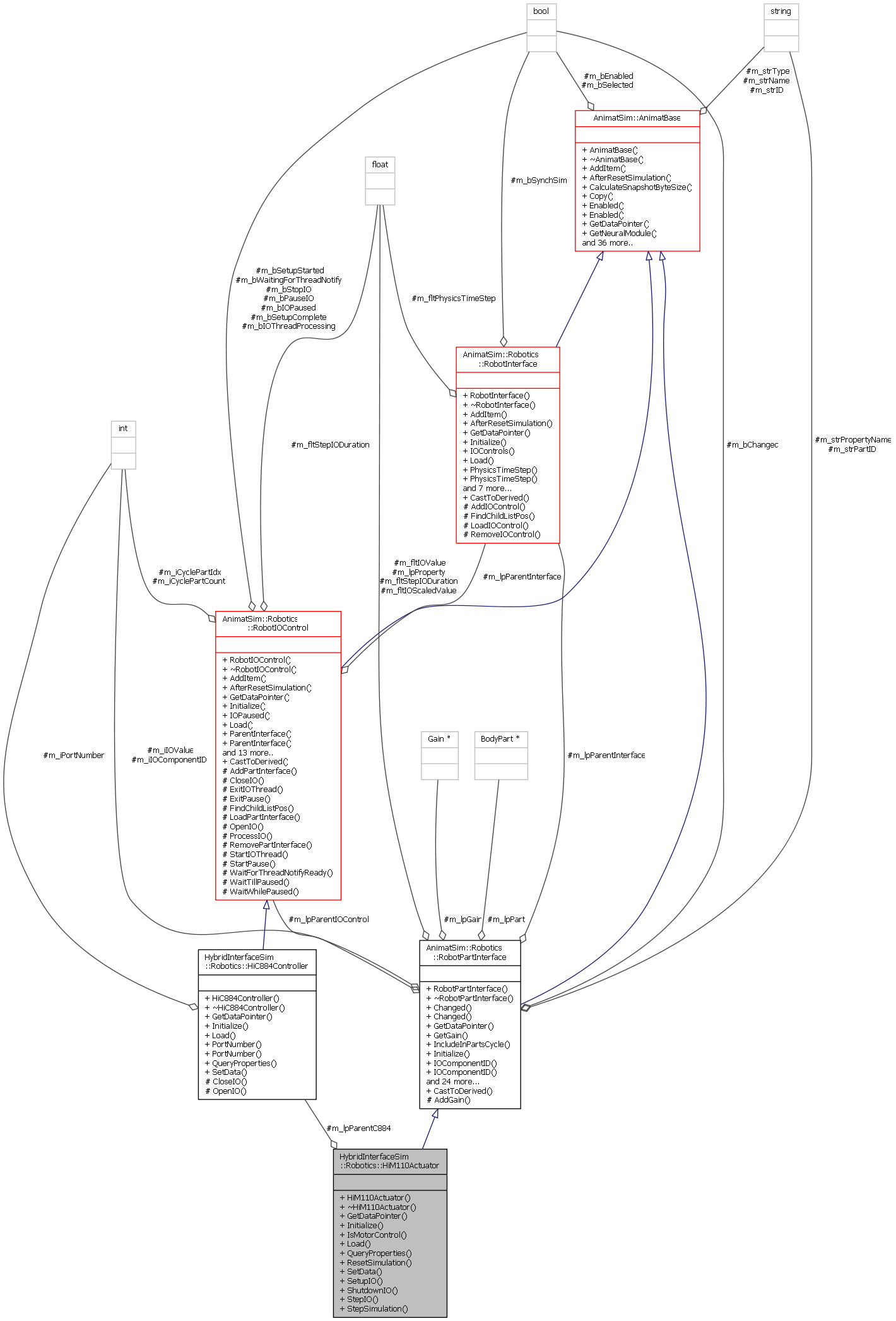

Collaboration diagram for HybridInterfaceSim::Robotics::HiM110Actuator:

Public Member Functions
virtual float *	GetDataPointer (const std::string &strDataType)
	Returns a float pointer to a data item of interest in this object. More...

virtual void	Initialize ()
	Initializes this object. More...

virtual bool	IsMotorControl ()
	Returns true if this part interface is for controlling a motor. More...

virtual void	Load (StdUtils::CStdXml &oXml)
	Loads the item using an XML data packet. More...

virtual void	QueryProperties (CStdPtrArray< TypeProperty > &aryProperties)

virtual void	ResetSimulation ()
	Resets the simulation back to time 0. More...

virtual bool	SetData (const std::string &strDataType, const std::string &strValue, bool bThrowError=true)
	Set a variable based on a string data type name. More...

virtual void	SetupIO ()
	This method is called after all connections to whatever control board have been made. It is meant to be used to setup connection information specific to this part. For example, We connect to a Firmata microcontroller like an Arduino, and then do a setup that could take some time. We should not attempt to setup any of the pins until after the board itself has been setup. After that we need to loop through and setup all the parts. That is what this method is for. More...

virtual void	ShutdownIO ()
	This method is called just before the IO thread is closed down. It gives the IO objects a chance to do any required cleanup. More...

virtual void	StepIO (int iPartIdx)
	This method is used to send/recieve the actual IO. This will often be in a seperate thread than the StepSimulation. StepSimulation gets/sets the values in the sim and gets it read for the thread that does the IO. Once that thread is ready to send/receive it uses that value to perform the operation. More...

virtual void	StepSimulation ()
	Step the simulation for this object. More...

Public Member Functions inherited from AnimatSim::Robotics::RobotPartInterface
virtual bool	Changed ()

virtual void	Changed (bool bVal)

virtual Gain *	GetGain ()
	Gets the poitner to the gain function. More...

virtual bool	IncludeInPartsCycle ()

virtual int	IOComponentID ()

virtual void	IOComponentID (int iID)

virtual float	IOScaledValue ()

virtual void	IOScaledValue (float fltVal)

virtual float	IOValue ()

virtual void	IOValue (float fltVal)

virtual int	IOValueInt ()

virtual void	IOValueInt (int iVal)

virtual void	LinkedPartID (std::string strID)

virtual std::string	LinkedPartID ()

virtual void	Load (CStdXml &oXml)

virtual void	ParentIOControl (RobotIOControl *lpParent)

virtual RobotIOControl *	ParentIOControl ()

virtual void	PropertyName (std::string strName)

virtual std::string	PropertyName ()

virtual float	QuantizeServoPosition (float fltPos)
	If this is a servo controller interface then it will take a continuous positon and return back a valid quantized position for that servo. More...

virtual float	QuantizeServoVelocity (float fltVel)
	If this is a servo controller interface then it will take a continuous velocity and return back a valid quantized velocity for that servo. More...

virtual void	QueryProperties (CStdPtrArray< TypeProperty > &aryProperties)
	Queries this object for a list of properties that can be changed using SetData. More...

virtual void	SetGain (Gain *lpGain)

virtual float	StepIODuration ()
	Gets the time duration required to perform one step of the IO for this part. More...

Public Member Functions inherited from AnimatSim::AnimatBase
	AnimatBase ()
	Constructs an AnimatBase object. More...

virtual	~AnimatBase ()
	Destroys the AnimatBase object.. More...

virtual bool	AddItem (const std::string &strItemType, const std::string &strXml, bool bThrowError=true, bool bDoNotInit=false)
	Adds a new object to this parent. More...

virtual void	AfterResetSimulation ()
	Called after a simulation reset for some objects. More...

virtual long	CalculateSnapshotByteSize ()
	Calculates the snapshot byte size. More...

virtual void	Copy (CStdSerialize *lpSource)

virtual void	Enabled (bool bVal)
	Tells whether this item is enabled or not. This is not actually used for all objects, only specific ones. I am putting it in the base class though to prevent numerous duplications. More...

virtual bool	Enabled ()
	Tells whether this item is enabled or not. This is not actually used for all objects, only specific ones. I am putting it in the base class though to prevent numerous duplications. More...

virtual NeuralModule *	GetNeuralModule ()
	Gets the neural module. More...

virtual Node *	GetNode ()
	Gets the node. More...

virtual Simulator *	GetSimulator ()
	Gets the simulator pointer. More...

virtual Structure *	GetStructure ()
	Gets the structure for this node. More...

virtual bool	HasProperty (const std::string &strName)
	Queries this object if it has a property with the given name. More...

virtual std::string	ID ()
	Gets the unique GUID ID of this object. More...

virtual void	ID (std::string strValue)
	Sets the unique GUID ID of the object. More...

virtual void	Kill (bool bState=true)
	Kills. More...

virtual void	LoadKeyFrameSnapshot (byte *aryBytes, long &lIndex)
	Loads a key frame snapshot. More...

virtual std::string	Name ()
	Gets the name of this object. More...

virtual void	Name (std::string strValue)
	Sets the name of the object. Blank is acceptable. More...

virtual AnimatPropertyType	PropertyType (const std::string &strName)

virtual void	ReInitialize ()
	Re-initialize this object. More...

virtual bool	RemoveItem (const std::string &strItemType, const std::string &strID, bool bThrowError=true)
	Removes a child item from this parent. More...

virtual void	Reset ()
	Resets this object. More...

virtual void	RigidBodyAdded (std::string strID)

virtual void	RigidBodyRemoved (std::string strID)

virtual void	SaveKeyFrameSnapshot (byte *aryBytes, long &lIndex)
	Saves a key frame snapshot. More...

virtual bool	Selected ()
	Tells if this items is selected or not. More...

virtual void	Selected (bool bValue, bool bSelectMultiple)
	Selects this object. More...

virtual bool	SetData (const std::string &strDataType, const float fltValue, bool bThrowError=true)
	Set a variable based on a string data type name. More...

virtual bool	SetData (const std::string &strDataType, const long lValue, bool bThrowError=true)
	Set a variable based on a string data type name. More...

virtual void	SetSystemPointers (Simulator lpSim, Structure lpStructure, NeuralModule lpModule, Node lpNode, bool bVerify)
	Sets the system pointers. More...

virtual void	SimPausing ()
	Called just before the simulation pauses. More...

virtual void	SimStarting ()
	Called just before the simulation starts. More...

virtual void	SimStopping ()
	Called just before the simulation stops. More...

virtual void	TimeStepModified ()
	Notification method that the time step modified has been modified. Objects should recalculate any slice times as needed. More...

virtual std::string	Type ()
	returns the string type name of this object. More...

virtual void	Type (std::string strValue)
	Sets the class type for this object. More...

virtual void	VerifySystemPointers ()
	Verify that system pointers have been set correctly. More...

virtual void	VisualSelectionModeChanged (int iNewMode)
	Visual selection mode changed. More...

Protected Attributes
HiC884Controller *	m_lpParentC884

Protected Attributes inherited from AnimatSim::Robotics::RobotPartInterface
bool	m_bChanged
	True when the value changes.

float	m_fltIOScaledValue

float	m_fltIOValue

float	m_fltStepIODuration

int	m_iIOComponentID

int	m_iIOValue
	This stores the temporary IO value to be used later in IO calculations.

Gain *	m_lpGain
	Pointer to the Gain that will be used to convert the source value into the target value.

RobotInterface *	m_lpParentInterface

RobotIOControl *	m_lpParentIOControl

BodyPart *	m_lpPart

float *	m_lpProperty

std::string	m_strPartID

std::string	m_strPropertyName

Protected Attributes inherited from AnimatSim::AnimatBase
bool	m_bEnabled
	Tells if this item is enabled or not. If it is not enabled then it is not run.

bool	m_bSelected
	Tells whether the object is selected or not.

AnimatSim::Behavior::NeuralModule *	m_lpModule
	The pointer to this items parentNeuralModule. If this is not relevant for this object then this is NULL.

Node *	m_lpNode
	The pointer to this items parent Node. If this is not relevant for this object then this is NULL.

Simulator *	m_lpSim
	The pointer to a Simulation.

AnimatSim::Environment::Structure *	m_lpStructure
	The pointer to this items parent Structure. If this is not relevant for this object then this is NULL.

std::string	m_strID
	The unique Id for this object.

std::string	m_strName
	The name for this object.

std::string	m_strType
	The type for this object. Examples are Box, Plane, Neuron, etc..

Additional Inherited Members
Static Public Member Functions inherited from AnimatSim::Robotics::RobotPartInterface
static RobotPartInterface *	CastToDerived (AnimatBase *lpBase)

Protected Member Functions inherited from AnimatSim::Robotics::RobotPartInterface
virtual void	AddGain (std::string strXml)
	Creates and adds a gain object. More...

Detailed Description

Definition at line 12 of file HiM110Actuator.h.

Member Function Documentation

float * HybridInterfaceSim::Robotics::HiM110Actuator::GetDataPointer ( const std::string & strDataType )

virtual

Returns a float pointer to a data item of interest in this object.

This is a generic method used to get a pointer to data variable of interest. It is used by a variety of systems in the simulation. The most prominent are the data charting and stimulus classes. Within this method we associate a variable with a string name. By passing in the name of the data type we are interested in we can recieve back a float pointer to that data type. We can use that to read or set the data item in other classes. For example, the data charting system gets the pointer and then each time it needs to log a data point it reads the value into an array.

Author: dcofer

Date: 2/22/2011

Parameters

strDataType name of the data item for which we are looking.

Returns: float pointer of the data item. If not found then it throws an exception.

Exceptions

If	DataType is not found.

Reimplemented from AnimatSim::Robotics::RobotPartInterface.

Definition at line 34 of file HiM110Actuator.cpp.

References StdUtils::Std_CheckString().

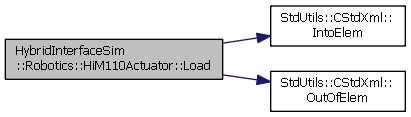

Here is the call graph for this function:

void HybridInterfaceSim::Robotics::HiM110Actuator::Initialize ( )

virtual

Initializes this object.

After an object is loaded in it must be initialized before it can be used. This allows the object to retrieve any pointers or setup memory that it will need during execution. Each object is responsible for initializing any of its child objects, so you simply need to call this method on the containing class to init all child objects. It also calls VerifySystemPointers to make sure that the system pointers have been setup correctly.

Author: dcofer

Date: 3/1/2011

Reimplemented from AnimatSim::Robotics::RobotPartInterface.

Definition at line 76 of file HiM110Actuator.cpp.

virtual bool HybridInterfaceSim::Robotics::HiM110Actuator::IsMotorControl ( )

inlinevirtual

Returns true if this part interface is for controlling a motor.

Author: dcofer

Date: 6/19/2014

Returns: Pointer to the gain.

Reimplemented from AnimatSim::Robotics::RobotPartInterface.

Definition at line 21 of file HiM110Actuator.h.

void HybridInterfaceSim::Robotics::HiM110Actuator::Load ( StdUtils::CStdXml & oXml )

virtual

Loads the item using an XML data packet.

This method is responsible for loading the structure from a XMl configuration file. You should call this method even in your overriden function becuase it loads all of the base properties for this object like ID and Name. It also includes this object in the simulators AddToObjectList so that the simulator knows about this object when you do a FindObject call. If you do not call this base method then it is up to you to add your item to the simulators list of objects.

Author: dcofer

Date: 3/1/2011

Parameters

[in,out] oXml The CStdXml xml data packet to load.

Reimplemented from AnimatSim::AnimatBase.

Definition at line 112 of file HiM110Actuator.cpp.

References StdUtils::CStdXml::IntoElem(), and StdUtils::CStdXml::OutOfElem().

Here is the call graph for this function:

void HybridInterfaceSim::Robotics::HiM110Actuator::ResetSimulation ( )

virtual

Resets the simulation back to time 0.

This method calls the ResetSimulation method on all subitems in order to reset the simulation back to the beginning.

Author: dcofer

Date: 3/1/2011

Reimplemented from AnimatSim::Robotics::RobotPartInterface.

Definition at line 107 of file HiM110Actuator.cpp.

References AnimatSim::Robotics::RobotPartInterface::ResetSimulation().

Here is the call graph for this function:

bool HybridInterfaceSim::Robotics::HiM110Actuator::SetData	(	const std::string &	strDataType,
		const std::string &	strValue,
		bool	bThrowError = `true`
	)

virtual

Set a variable based on a string data type name.

This is a generic method that can be used to set any variable in an AnimatBase object by specifying the name of the variable and a string representation of that data. The GUI uses this method to set data into variables in the simulation when the user changes them in the UI. The value string can be as simple as a float or int, or as complex as an xml packet. It is the developers responsibilty to know what type of data is needed and to process it accordingly.

Author: dcofer

Date: 2/22/2011

Parameters

strDataType	string name of the data type to set.
strValue	The string value of the data. It is up to the developer to determine what this should be. For example, in most cases it is simply a float and you just have to convert it to a float and make the appropriate mutator method call. However, it can be any type of string, including an entire xml packet. It is the developers responsibility to know how to set and process the data as required.
bThrowError	true to throw error if there is a problem. If false then it will not return an error, just return false.

Returns: true if it succeeds, false if it fails.

Reimplemented from AnimatSim::Robotics::RobotPartInterface.

Definition at line 44 of file HiM110Actuator.cpp.

References StdUtils::Std_CheckString().

Here is the call graph for this function:

void HybridInterfaceSim::Robotics::HiM110Actuator::SetupIO ( )

virtual

This method is called after all connections to whatever control board have been made. It is meant to be used to setup connection information specific to this part. For example, We connect to a Firmata microcontroller like an Arduino, and then do a setup that could take some time. We should not attempt to setup any of the pins until after the board itself has been setup. After that we need to loop through and setup all the parts. That is what this method is for.

Author: dcofer

Date: 5/1/2014

Reimplemented from AnimatSim::Robotics::RobotPartInterface.

Definition at line 84 of file HiM110Actuator.cpp.

void HybridInterfaceSim::Robotics::HiM110Actuator::ShutdownIO ( )

virtual

This method is called just before the IO thread is closed down. It gives the IO objects a chance to do any required cleanup.

Author: dcofer

Date: 5/12/2014

Reimplemented from AnimatSim::Robotics::RobotPartInterface.

Definition at line 94 of file HiM110Actuator.cpp.

void HybridInterfaceSim::Robotics::HiM110Actuator::StepIO ( int iPartIdx )

virtual

This method is used to send/recieve the actual IO. This will often be in a seperate thread than the StepSimulation. StepSimulation gets/sets the values in the sim and gets it read for the thread that does the IO. Once that thread is ready to send/receive it uses that value to perform the operation.

Author: dcofer

Date: 5/2/2014

Reimplemented from AnimatSim::Robotics::RobotPartInterface.

Definition at line 89 of file HiM110Actuator.cpp.

void HybridInterfaceSim::Robotics::HiM110Actuator::StepSimulation ( )

virtual

Step the simulation for this object.

This is called on an object each time it is stepped in the simulation. this is where its simulation code is processed. However, StepSimulation is not necessarily called every single time that the simulation as a whole is stepped. A good example of this is that neural modules can have different integration time steps. So a firing rate module may have a DT of 0.5 ms, while an integrate and fire model may have one of 0.1 ms. So the firing rate module would only get its StepSimulation method called every 5th time that the other module was called. This is all handed in the StepSimulation method of the Simulator and NervousSystem.

Author: dcofer

Date: 3/1/2011

Reimplemented from AnimatSim::AnimatBase.

Definition at line 99 of file HiM110Actuator.cpp.

The documentation for this class was generated from the following files:

Public Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Member Function Documentation
